EU3000is 1 A (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1500001 - EZGF-1699999) CARBURETOR Parts Diagram

Generator, Made in Japan

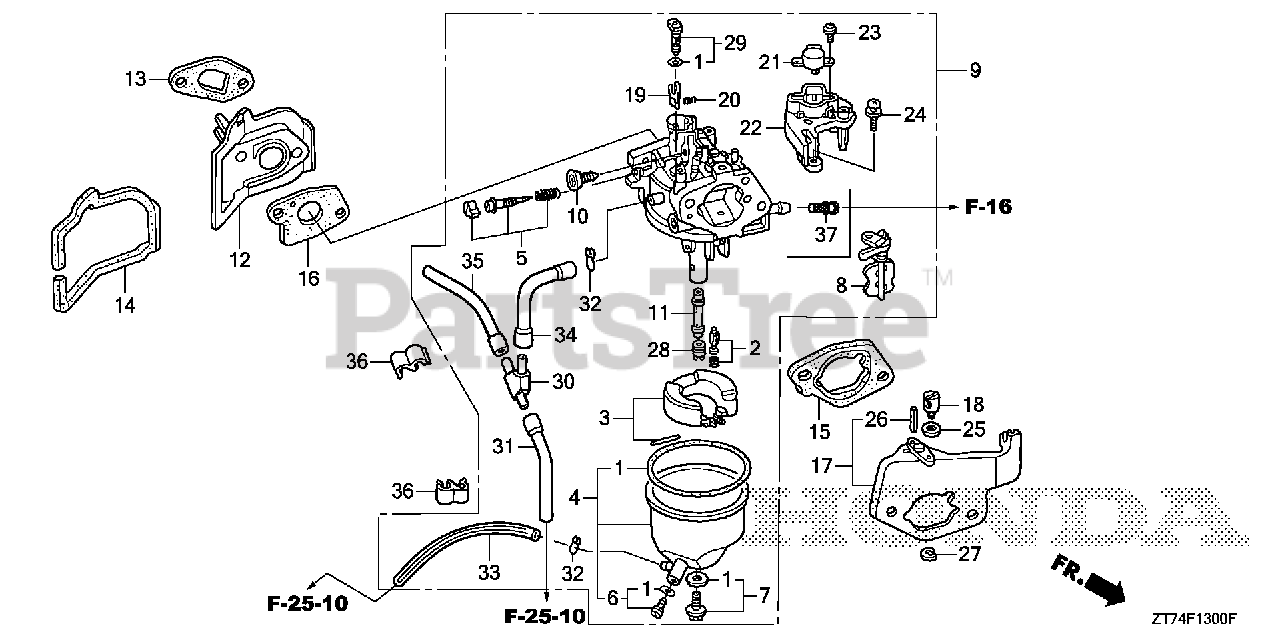

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZB9-005

GASKET SET

$18.99

$

In Stock, Qty 5

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-Z0S-B01

FLOAT SET

$35.99

$

In Stock, only 1 left!

0

4

Honda 16015-Z0V-D11

CHAMBER SET, FLOAT

$53.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZB9-005

SCREW SET, DRAIN

$10.99

$

In Stock, only 2 left!

0

7

Honda 16028-Z5T-901

SCREW SET

$5.99

$

In Stock, only 2 left!

0

8

Honda 16044-ZE7-005

CHOKE SET

$37.99

$

In Stock, only 1 left!

0

9

Honda 16100-Z0V-D12

CARBURETOR ASSY. (BEA0D A)

$175.99

$

In Stock, only 2 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZL0-D01

NOZZLE, MAIN (CARBURETOR NO.)

$25.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZL0-D31

INSULATOR, CARBURETOR

$16.99

$

Usually ships in 3-6 days

0

13

Honda 16212-ZH8-800

GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

14

Honda 16217-ZL0-D30

SEAL, CARBURETOR INSULATOR

$3.99

$

In Stock, only 2 left!

0

15

Honda 16269-ZE1-800

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 13

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

17

Honda 16260-ZB6-000

STAY, CHOKE
(Superseded to 16260-ZB6-010)

$24.99

$

In Stock, only 1 left!

0

18

Honda 16617-ZL0-D30

HOLDER, CABLE

$7.49

$

Usually ships in 3-6 days

0

19

Honda 36161-ZL0-D31

LEVER, LINK

$14.99

$

Usually ships in 3-6 days

0

20

Honda 36162-ZL0-D31

SPRING, COMPRESSION COIL

$7.49

$

In Stock, Qty 11

0

21

Honda 36165-ZL0-E21

SEE PART DETAILS - SUP; MOTOR, THROTTLE CONTROL (CARBURETOR NO.)
(Superseded to 36165-ZL0-E61)

$112.99

$

In Stock, only 1 left!

0

21

Honda 36165-ZL0-E61

SEE PART DETAILS - PRI; MOTOR, THROTTLE CONTROL (CARBURETOR NO.)

$112.99

$

In Stock, only 1 left!

0

22

Honda 36166-ZL0-D31

BRACKET, THROTTLE MOTOR

$21.99

$

Usually ships in 3-6 days

0

23

Honda 90003-ZL0-D30

SCREW-WASHER (3X8)

$2.49

$

In Stock, only 4 left!

0

24

Honda 93893-04010-08

SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

25

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

26

Honda 94305-20182

PIN, SPRING (2X18)

$2.49

$

In Stock, only 1 left!

0

27

Honda 94540-05018

E-RING (5MM)

$3.99

$

In Stock, only 4 left!

0

28

Honda 99101-ZH8-0720

JET, MAIN (#72)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

28

Honda 99101-ZH8-0750

JET, MAIN (#75)

$8.49

$

In Stock, only 1 left!

0

28

Honda 99101-ZK7-0700

JET, MAIN (#70)

Note: (Optional).

$10.99

$

In Stock, Qty 9

0

29

Honda 99204-ZE2-0450

SEE PART DETAILS - PRI; JET SET, PILOT (#45)

$16.99

$

In Stock, only 2 left!

0

30

Honda 16112-ZM7-D01

JOINT, AIR VENT TUBE (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

31

Honda 16199-ZL0-D31

TUBE, AIR VENT (CARBURETOR NO.)

$8.49

$

Usually ships in 3-6 days

0

32

Honda 95002-35000

CLIP, TUBE (C6.5) (CARBURETOR NO.)

$0.99

$

In Stock, Qty 10

0

33

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X200) (CARBURETOR NO.)

$28.99

$

In Stock, only 1 left!

0

34

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$36.99

$

Usually ships in 3-6 days

0

35

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$36.99

$

Usually ships in 3-6 days

0

36

Honda 17205-PC6-000

CLAMP, TUBE (7.5X2)

$11.99

$

Usually ships in 3-6 days

0

37

Honda 16176-Z2G-D51

SCREEN, FUEL STRAINER

$11.99

$

In Stock, Qty 5

0
