EU3000is 1 A/A (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1700001 - EZGF-9999999) PISTON@CRANKSHAFT Parts Diagram

Generator, Made in Japan

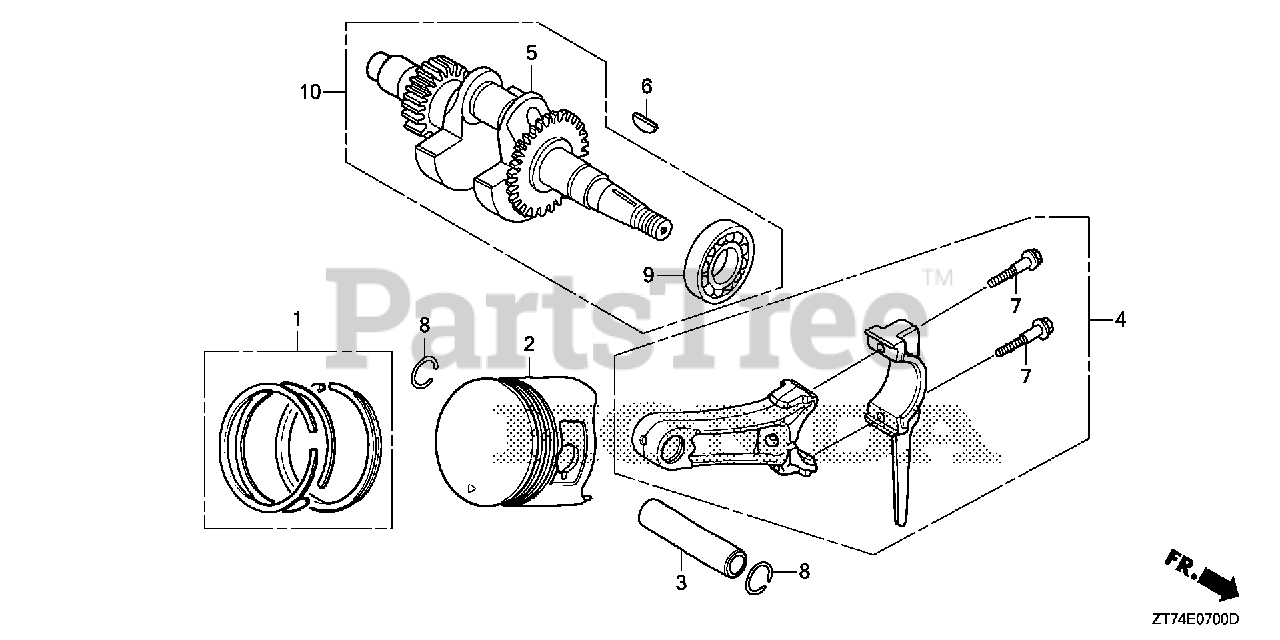

PISTON@CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TPR)

$34.99

$

In Stock, only 1 left!

0

1

Honda 13011-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.25) Use from Engine SN 1314913.

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (0.50) (TPR)

Note: (Optional).

$

$

Not available

1

Honda 13013-Z4K-004

RING SET, PISTON (0.75) Use from Engine SN 1314913.

Note: (Optional).

$

$

Not available

1

Honda 13010-Z4M-003

RING SET, PISTON (STD) (RIKEN)

$42.99

$

In Stock, only 1 left!

0

1

Honda 13011-Z4M-003

RING SET, PISTON (0.25) (RIKEN)

Note: (Optional).

$

$

Not available

1

Honda 13012-Z4M-003

RING SET, PISTON (0.50) (RIKEN)
(Superseded to 13010-Z4M-003)

Note: (Optional).

$42.99

$

In Stock, only 1 left!

0

1

Honda 13013-Z4M-003

RING SET, PISTON (0.75) (RIKEN)

Note: (Optional).

$

$

Not available

2

Honda 13101-Z4V-800

SEE PART DETAILS - PRI; PISTON (STD)

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZL0-020

PISTON (0.25)

Note: (Optional).

$

$

Not available

2

Honda 13103-ZL0-020

PISTON (0.50)

Note: (Optional).

$

$

Not available

2

Honda 13104-ZL0-020

PISTON (0.75)

Note: (Optional).

$

$

Not available

3

Honda 13111-Z4M-000

PIN, PISTON

$21.99

$

Usually ships in 3-6 days

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0T-305

ROD ASSY., CONNECTING (UNDER SIZE) (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

6

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

$5.49

$

In Stock, only 4 left!

0

6

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

$6.49

$

In Stock, Qty 10

0

7

Honda 90001-ZE1-000

BOLT, CONNECTING ROD (Honda Code 1431055).

$3.99

$

In Stock, only 2 left!

0

8

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

$1.49

$

In Stock, Qty 14

0

9

Honda 91001-ZF1-003

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 3684248).

$25.99

$

In Stock, only 3 left!

0

9

Honda 91001-Z4X-003

BEARING, RADIAL BALL (6205) (NSK)

$13.99

$

Usually ships in 3-6 days

0

10

Honda 13310-ZL0-D32

CRANKSHAFT

$57.99

$

Usually ships in 3-6 days

0
