EU3000is 1 A/A (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1700001 - EZGF-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

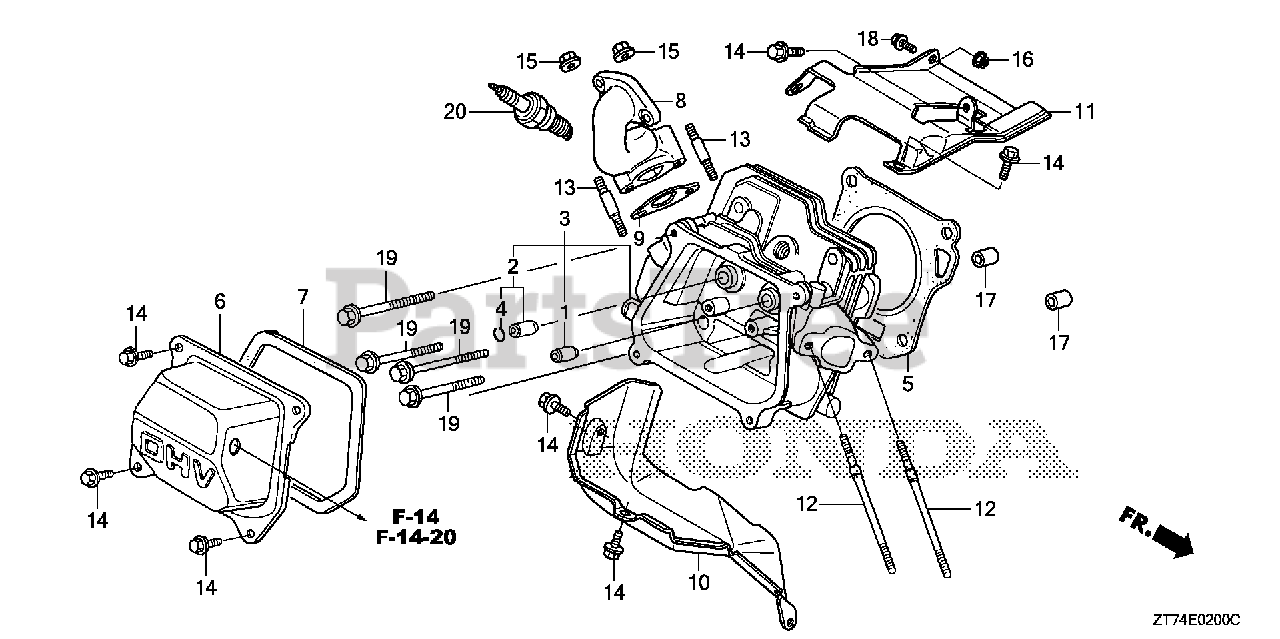

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE) Use from Engine SN 6324986.

$9.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OS) (Honda Code 1899848).

$10.99

$

In Stock, only 2 left!

0

3

Honda 12210-ZL0-425

CYLINDER HEAD

$79.99

$

In Stock, only 1 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE Use from Engine SN 1231803.

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZL0-003

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

$26.99

$

In Stock, only 3 left!

0

6

Honda 12310-Z4M-010

COVER, HEAD
(Superseded to 12310-Z4M-020)

$5.49

$

In Stock, only 2 left!

0

7

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER (Honda Code 1426527).

$5.49

$

In Stock, Qty 20+

0

8

Honda 18331-ZL0-D30

PIPE, EX.

$59.99

$

In Stock, only 1 left!

0

9

Honda 18381-Z0T-801

GASKET, MUFFLER

$5.99

$

In Stock, Qty 17

0

10

Honda 19630-ZH8-000

SEE PART DETAILS - PRI; SHROUD

$17.99

$

Usually ships in 3-6 days

0

11

Honda 19631-ZL0-D30

SHROUD (UPPER)

$21.99

$

Usually ships in 3-6 days

0

12

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X109) (Honda Code 4588323).

$6.99

$

In Stock, only 2 left!

0

13

Honda 90002-ZL0-D30

BOLT, STUD (8X65) (CT200)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

15

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

18

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0

19

Honda 95701-08060-00

BOLT, FLANGE (8X60)

$1.99

$

In Stock, only 3 left!

0

20

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

$3.99

$

In Stock, Qty 20+

0

20

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

$3.49

$

Usually ships in 3-6 days

0

20

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

20

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

Note: (Optional).

$3.99

$

In Stock, Qty 8

0
