EU3000i K1 A (EAVJ) - Honda Generator, Made in Japan (SN: EAVJ-1100001 - EAVJ-9999999) CAMSHAFT Parts Diagram

Generator, Made in Japan

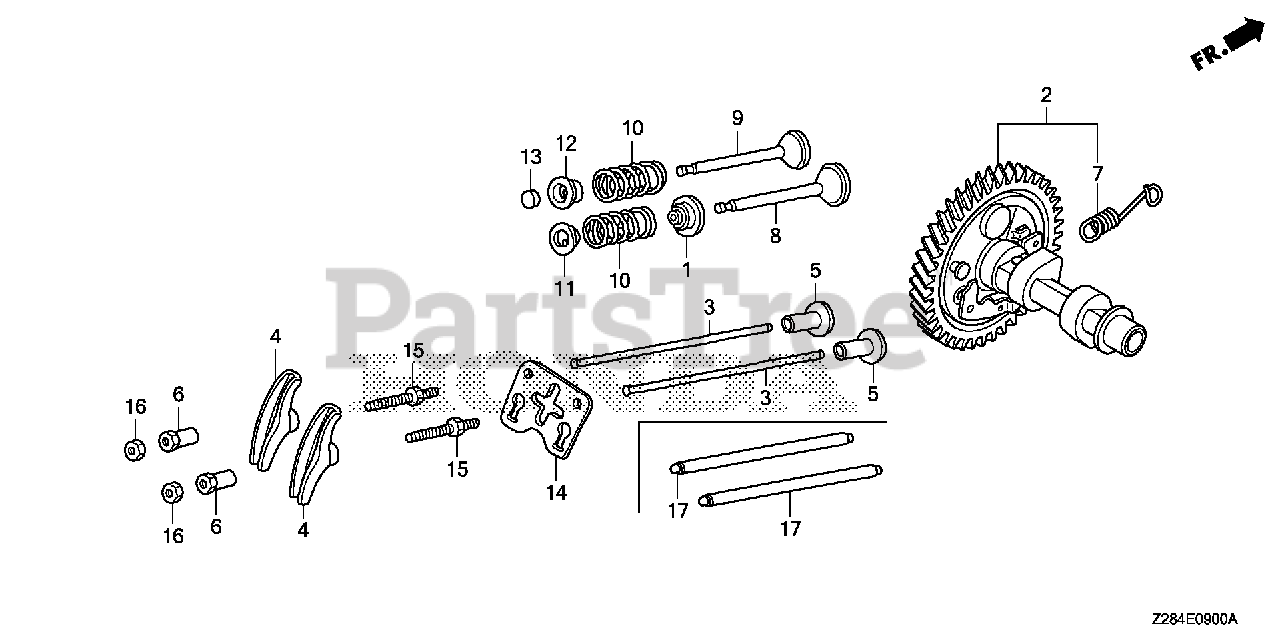

CAMSHAFT Parts Diagram

  • Title

1

Honda 12209-Z4M-801

SEAL, VALVE STEM

$9.49

$

In Stock, Qty 6

0

2

Honda 14100-Z4M-871

CAMSHAFT ASSY.

$150.99

$

Usually ships in 3-6 days

0

4

Honda 14431-ZE1-000

ARM, VALVE ROCKER

$7.99

$

In Stock, only 2 left!

0

5

Honda 14441-ZE1-010

LIFTER, VALVE

$14.99

$

Usually ships in 3-6 days

0

6

Honda 14451-ZE1-013

SEE PART DETAILS - SUP; PIVOT, ROCKER ARM
(Superseded to 14451-Z4M-000)

$5.99

$

In Stock, Qty 5

0

6

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$5.99

$

In Stock, Qty 5

0

7

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN

$3.49

$

In Stock, only 2 left!

0

8

Honda 14711-Z4M-000

VALVE, IN.

$24.99

$

In Stock, only 1 left!

0

9

Honda 14721-Z4M-000

VALVE, EX.

$18.99

$

In Stock, only 1 left!

0

10

Honda 14751-ZF1-000

SPRING, VALVE

$4.99

$

In Stock, only 2 left!

0

11

Honda 14771-ZE1-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

11

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING

$1.49

$

In Stock, Qty 14

0

12

Honda 14771-ZE1-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING (EXHAUST SIDE)
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

12

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING

$1.49

$

In Stock, Qty 14

0

14

Honda 14791-Z4M-000

PLATE, PUSH ROD GUIDE

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90012-ZE0-010

BOLT, PIVOT (8MM)

$8.49

$

In Stock, only 2 left!

0

16

Honda 90206-ZE1-000

NUT, PIVOT ADJUSTING

$4.49

$

In Stock, Qty 6

0

17

Honda 14410-Z4M-000

ROD, PUSH

$5.99

$

Usually ships in 3-6 days

0
