EU3000i AN8 (EAVJ) - Honda Generator, Made in Japan (SN: EAVJ-1000001 - EAVJ-9999999) FUEL TANK (1) Parts Diagram

Generator, Made in Japan

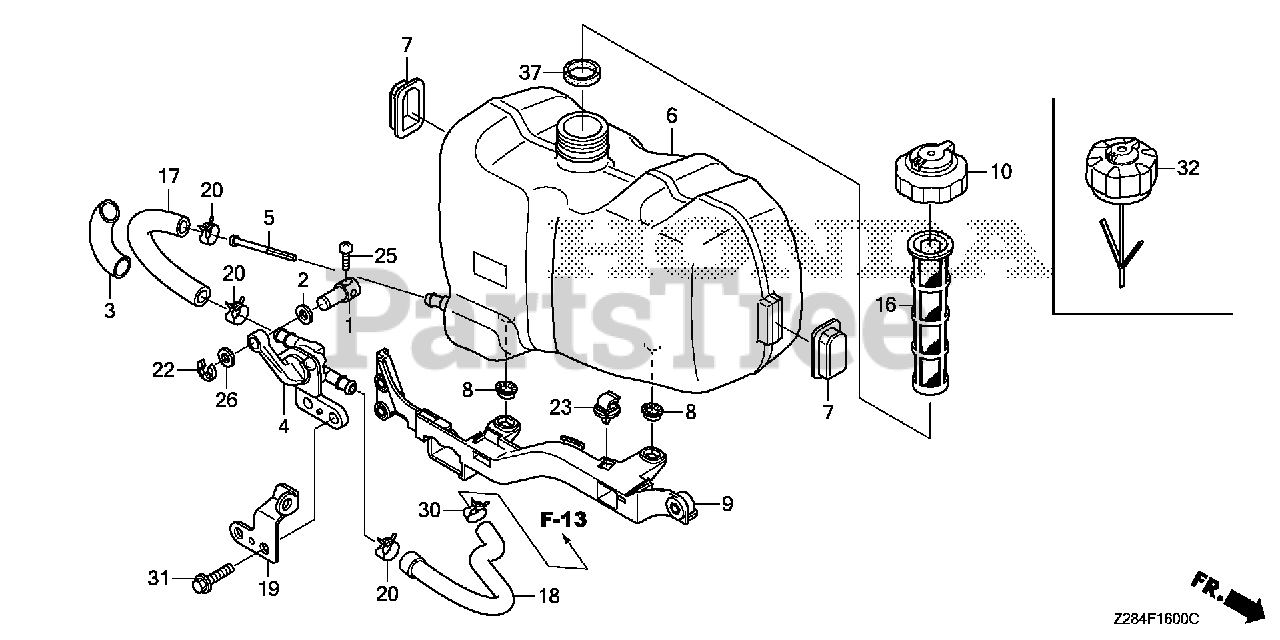

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16617-Z28-000

HOLDER, CABLE

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16622-Z28-000

WASHER, CABLE HOLDER

$1.99

$

Usually ships in 3-6 days

0

3

Honda 16854-Z28-000

RUBBER, SUPPORTER

$6.49

$

Usually ships in 3-6 days

0

4

Honda 16950-Z28-023

PETCOCK ASSY.

$101.99

$

Usually ships in 3-6 days

0

5

Honda 16952-ZA8-800

FILTER, FUEL

$9.49

$

In Stock, Qty 16

0

6

Honda 17511-Z28-305

TANK, FUEL (COO)
(Superseded to 17511-Z28-000)

$217.99

$

Usually ships in 3-6 days

0

7

Honda 17532-Z28-000

RUBBER A, TANK MOUNTING

$5.49

$

Usually ships in 3-6 days

0

8

Honda 17533-Z28-000

RUBBER B, TANK MOUNTING

$3.99

$

Usually ships in 3-6 days

0

9

Honda 17560-Z28-000

BRACKET, FUEL TANK

$47.99

$

Usually ships in 3-6 days

0

10

Honda 17620-Z28-000

CAP ASSY., FUEL TANK

$25.99

$

Usually ships in 3-6 days

0

11

Honda 17622-ZC3-000

INNER, FUEL CAP (NOT AVAILABLE)

$

$

Not available

12

Honda 17623-ZV0-000

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 3 left!

0

13

Honda 17625-ZV0-000

GASKET, FUEL CAP

$4.49

$

In Stock, only 3 left!

0

14

Honda 17626-Z28-000

VALVE, BREATHER

$13.99

$

Usually ships in 3-6 days

0

15

Honda 17629-ZV0-000

SPRING, FUEL CAP

$3.49

$

In Stock, only 1 left!

0

16

Honda 17670-Z28-C30

FILTER, FUEL

$16.99

$

Usually ships in 3-6 days

0

17

Honda 17701-Z28-S31

TUBE, FUEL TANK (FKM)
(Superseded to 17701-Z28-E31)

$9.99

$

Usually ships in 3-6 days

0

18

Honda 17702-Z28-S31

TUBE, FUEL PETCOCK (FKM)
(Superseded to 17702-Z28-E31)

$

$

Not available

19

Honda 17978-Z28-000

HOLDER, PETCOCK CABLE

$3.99

$

Usually ships in 3-6 days

0

20

Honda 43514-KS6-701

CLAMP, MASTER CYLINDER OIL HOSE

$17.99

$

Usually ships in 3-6 days

0

21

Honda 90539-836-000

WASHER (6MM)

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90605-230-000

CIRCLIP (5MM)

$4.49

$

In Stock, only 2 left!

0

23

Honda 90659-KG4-000

CLAMP, WIRE (8MM)

$4.49

$

Usually ships in 3-6 days

0

24

Honda 91362-ZC3-000

O-RING (13.8X2.4) (N/A: SEE ASSEMBLY)

$

$

Not available

25

Honda 93500-04006-0A

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

30

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

Usually ships in 3-6 days

0

31

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, only 2 left!

0

37

Honda 17538-Z28-000

RUBBER C, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0
