EU3000i AN8 (EAVJ) - Honda Generator, Made in Japan (SN: EAVJ-1000001 - EAVJ-9999999) ENGINE STOP SWITCH Parts Diagram

Generator, Made in Japan

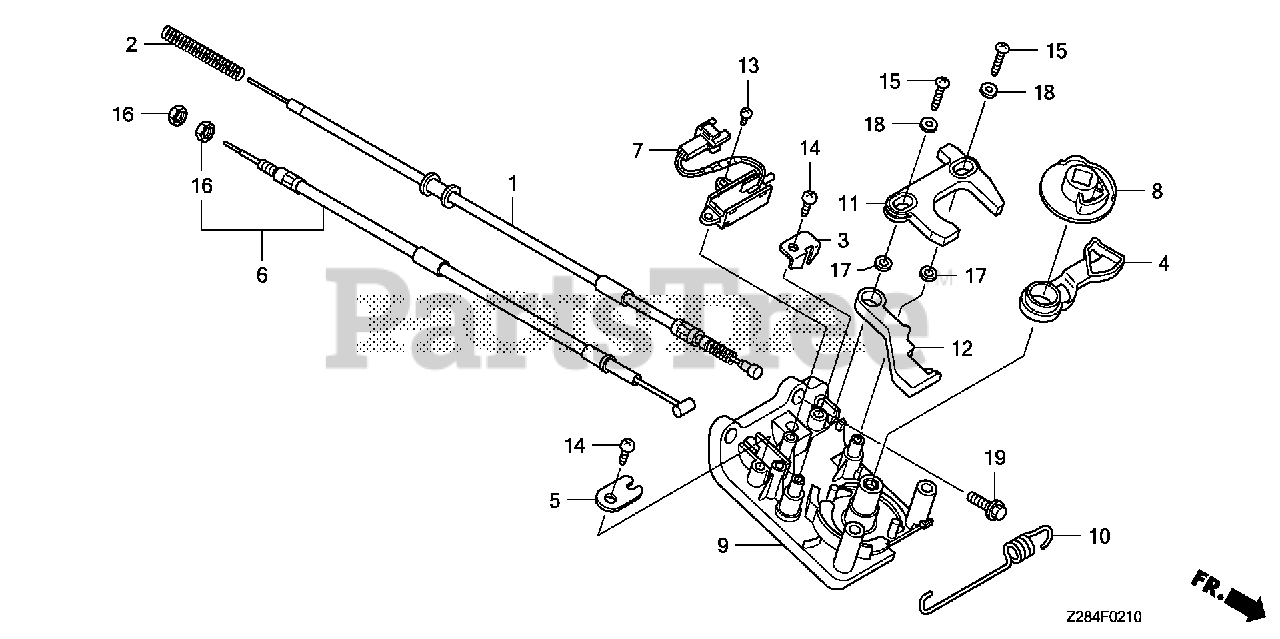

ENGINE STOP SWITCH Parts Diagram

  • Title

1

Honda 17950-Z28-013

CABLE, CHOKE

$23.99

$

Usually ships in 3-6 days

0

2

Honda 17952-Z28-000

SPRING, CHOKE

$2.99

$

Usually ships in 3-6 days

0

3

Honda 17953-Z28-000

BRACKET, CHOKE CABLE

$3.99

$

Usually ships in 3-6 days

0

4

Honda 17957-Z28-000

ARM, CHOKE

$3.99

$

Usually ships in 3-6 days

0

5

Honda 17959-Z28-000

BRACKET, PETCOCK CABLE

$3.49

$

Usually ships in 3-6 days

0

6

Honda 17975-Z28-003

CABLE, PETCOCK

$24.99

$

Usually ships in 3-6 days

0

7

Honda 35120-Z28-003

SWITCH ASSY., ENGINE STOP

$19.99

$

In Stock, only 1 left!

0

8

Honda 35124-Z28-010

CAM, ENGINE SWITCH

$8.99

$

Usually ships in 3-6 days

0

9

Honda 35125-Z28-000

BASE, ENGINE SWITCH

$22.99

$

Usually ships in 3-6 days

0

10

Honda 35126-Z28-000

SPRING, SWITCH CAM TENSION

$5.99

$

Usually ships in 3-6 days

0

11

Honda 35127-Z28-000

PLATE, ENGINE SWITCH

$7.99

$

Usually ships in 3-6 days

0

12

Honda 35129-Z28-000

PLATE, SWITCH CAM TENSION

$6.99

$

Usually ships in 3-6 days

0

13

Honda 93901-12220

SCREW, TAPPING (3X10) (NOT AVAILABLE)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 93911-25420

SCREW, TAPPING (5X16)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 93913-25620

SCREW, TAPPING (5X25) (P0)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 94002-06000-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94103-05000

WASHER, PLAIN (5MM)

$0.99

$

In Stock, only 3 left!

0

19

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 6

0
