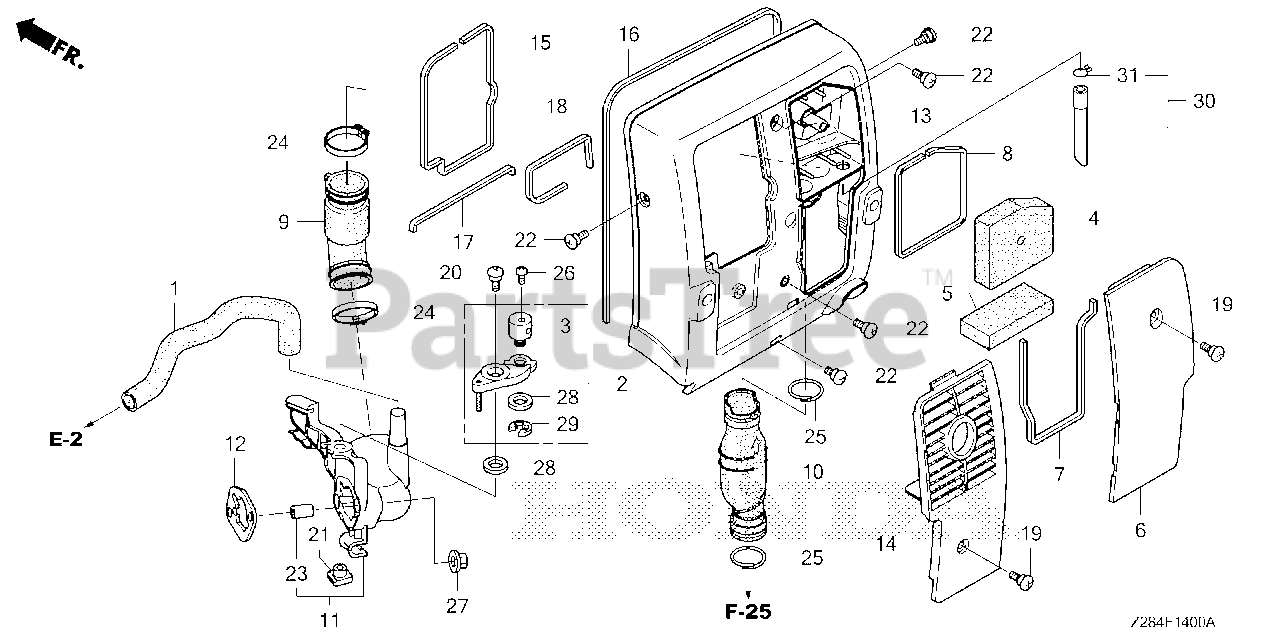

EU3000i AN8 (EAVJ) - Honda Generator, Made in Japan (SN: EAVJ-1000001 - EAVJ-9999999) AIR CLEANER + REAR COVER Parts Diagram

Generator, Made in Japan

AIR CLEANER + REAR COVER Parts Diagram

  • Title

1

Honda 15721-Z28-000

TUBE, BREATHER

$6.99

$

Usually ships in 3-6 days

0

2

Honda 16610-Z28-010

LEVER ASSY., CHOKE

$16.99

$

In Stock, only 1 left!

0

3

Honda 16618-Z28-000

HOLDER, CABLE

$9.99

$

Usually ships in 3-6 days

0

4

Honda 17211-Z28-000

ELEMENT, AIR CLEANER

$7.49

$

In Stock, only 1 left!

0

5

Honda 17218-Z28-000

FILTER (OUTER)

$6.49

$

In Stock, only 2 left!

0

6

Honda 17231-Z28-000ZA

COVER, AIR CLEANER *NH314* (CONDUCT GRAY)

$35.99

$

Usually ships in 3-6 days

0

7

Honda 17233-Z28-000

SEAL A, AIR CLEANER COVER

$3.49

$

Usually ships in 3-6 days

0

8

Honda 17235-Z28-000

SEAL C, AIR CLEANER COVER

$4.49

$

Usually ships in 3-6 days

0

9

Honda 17251-Z28-000

TUBE, AIR CLEANER CONNECTING

$17.99

$

Usually ships in 3-6 days

0

10

Honda 17252-Z28-000

TUBE, RESONATOR

$19.99

$

Usually ships in 3-6 days

0

11

Honda 17271-Z28-000

JOINT, AIR IN.

$15.99

$

Usually ships in 3-6 days

0

12

Honda 17274-Z28-000

GASKET, AIR IN. JOINT

$3.49

$

In Stock, Qty 9

0

13

Honda 63310-Z28-030ZA

COVER, RR. *NH314* (CONDUCT GRAY)

$152.99

$

Usually ships in 3-6 days

0

14

Honda 63315-Z28-000ZA

COVER, MUFFLER PROTECTOR *NH314* (CONDUCT GRAY)

$40.99

$

Usually ships in 3-6 days

0

15

Honda 63317-Z28-000

SEAL, RR. COVER (565MM)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 63318-Z28-000

SEAL, RR. COVER (UPPER)

$4.99

$

In Stock, only 1 left!

0

17

Honda 63319-Z28-000

SEAL, RR. COVER (LOWER)

$2.99

$

In Stock, Qty 5

0

18

Honda 63323-Z28-000

SEAL, RR. COVER (261MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90102-Z07-003

SCREW, SPECIAL (6X16)

$4.49

$

In Stock, Qty 19

0

20

Honda 90105-Z28-000

SCREW, SPECIAL (6X12)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90301-Z28-000

NUT, SPECIAL (6MM)

$7.99

$

Usually ships in 3-6 days

0

22

Honda 90380-GM9-740

SCREW, SPECIAL (6X15)

$1.99

$

In Stock, Qty 20+

0

23

Honda 90512-Z28-000

COLLAR, IN. JOINT

$1.49

$

Usually ships in 3-6 days

0

24

Honda 90653-GHB-660

CLAMP, HOSE

$14.99

$

Usually ships in 3-6 days

0

25

Honda 90851-Z28-000

CLIP, AIR CLEANER TUBE

$2.99

$

Usually ships in 3-6 days

0

26

Honda 93500-04006-0A

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

28

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

29

Honda 94540-05018

E-RING (5MM)

$3.99

$

In Stock, only 4 left!

0

30

Honda 17245-Z28-000

TUBE ASSY., AIR CLEANER

$16.99

$

Usually ships in 3-6 days

0

31

Honda 17369-KB4-670

CLIP, BREATHER TUBE

$7.49

$

In Stock, only 1 left!

0
