EU3000i AN (EAVJ) - Honda Generator, Made in Japan (SN: EAVJ-1000001 - EAVJ-9999999) GENERATOR Parts Diagram
Generator, Made in Japan

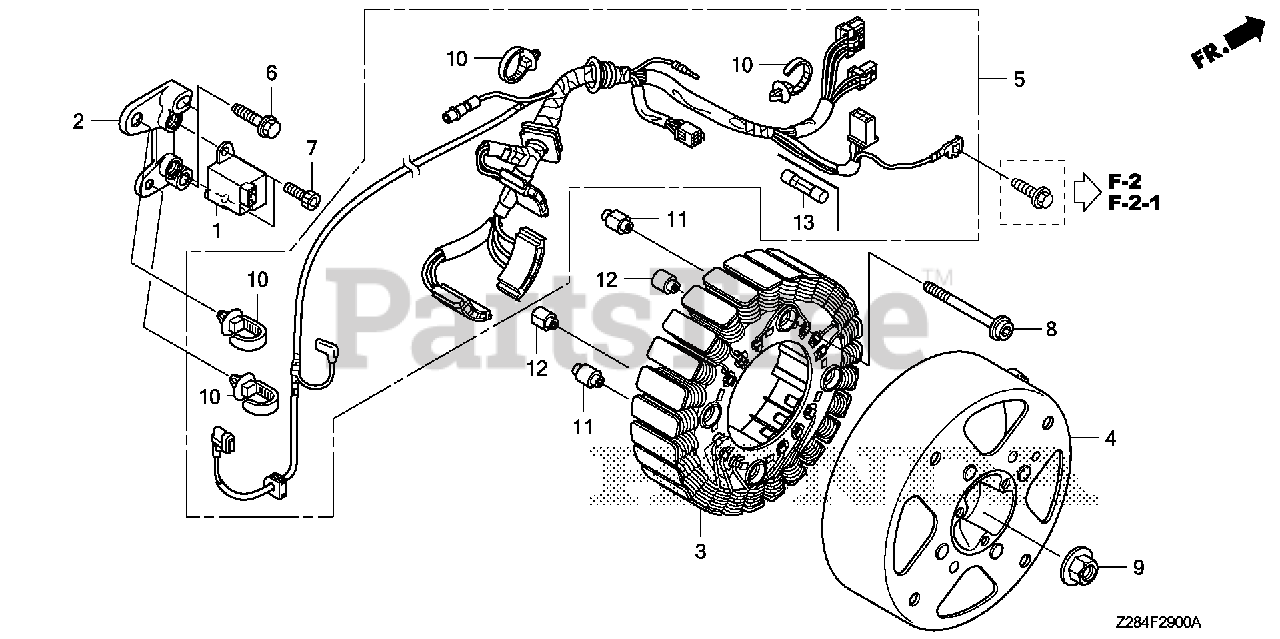

GENERATOR Parts Diagram
Honda 30300-HA0-033
GENERATOR ASSY., PULSE (TEC)
$55.99
$
Usually ships in 3-6 days
Honda 30312-Z28-000
BRACKET, PULSER COIL
$17.99
$
Usually ships in 3-6 days
Honda 31019-Z28-C30
COIL SET, INSULATED VARNISH
$547.99
$
Usually ships in 3-6 days
Honda 31130-Z28-000
ROTOR
$273.99
$
Usually ships in 3-6 days
Honda 32158-Z28-C30
WIRE HARNESS ASSY., GENERATOR
$171.99
$
Usually ships in 3-6 days
Honda 90018-ZE1-000
BOLT, FLANGE (6X23) (Honda Code 1725050).
$2.49
$
Usually ships in 3-6 days
Honda 90049-KBH-000
BOLT, SOCKET (5X14)
$1.99
$
Usually ships in 3-6 days
Honda 90101-Z03-000
BOLT, FLANGE SOCKET (6X57) (CT200)
$1.99
$
Usually ships in 3-6 days
Honda 90201-878-003
SEE PART DETAILS - PRI; NUT, SPECIAL (14MM) (Honda Code 0442038).
$7.99
$
In Stock, only 1 left!
Honda 91541-S0A-003
CLIP, HARNESS BAND (145MM) (BLACK)
$5.49
$
In Stock, only 1 left!
Honda 91553-Z28-000
COLLAR, STATOR
$6.99
$
Usually ships in 3-6 days
Honda 91554-Z28-000
COLLAR, STATOR
$6.99
$
Usually ships in 3-6 days
