EU3000i AC (EAVJ) - Honda Generator, Made in Japan (SN: EAVJ-1000001 - EAVJ-9999999) CARBURETOR Parts Diagram

Generator, Made in Japan

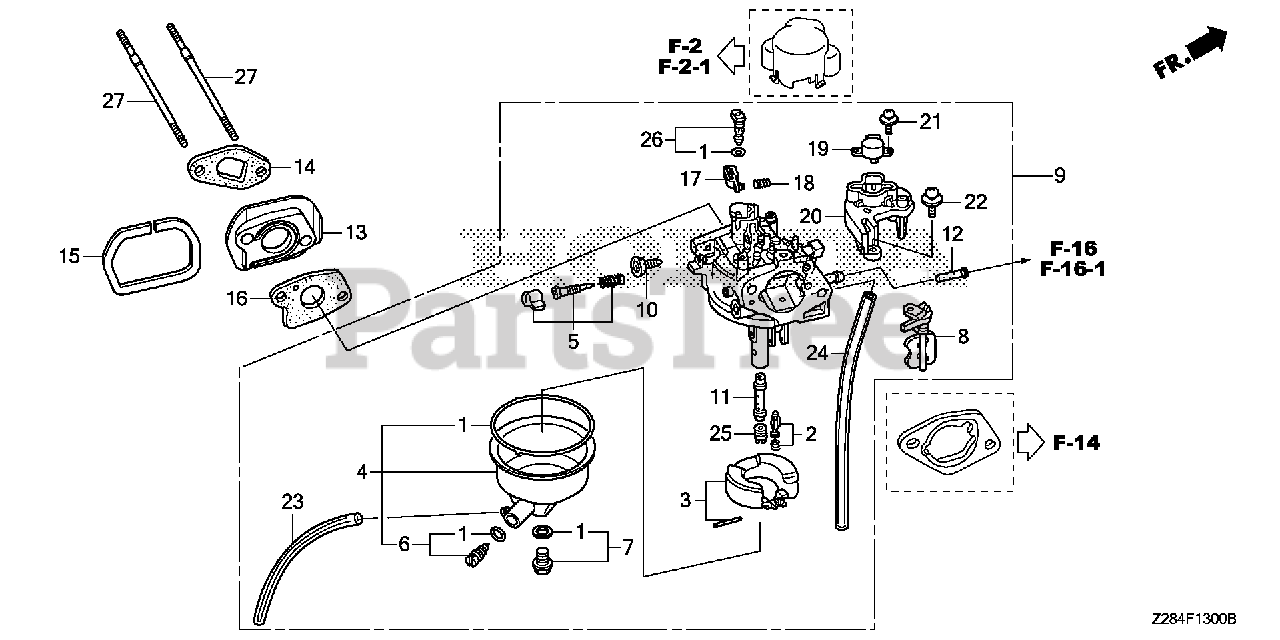

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZB9-005

GASKET SET

$18.99

$

In Stock, Qty 5

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-Z2G-D51

CHAMBER SET, FLOAT

$34.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZB9-005

SCREW SET, DRAIN (CARBURETOR NO.)

$10.99

$

In Stock, only 2 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE7-005

CHOKE SET (CARBURETOR NO.)

$37.99

$

In Stock, only 1 left!

0

9

Honda 16100-Z2G-D52

CARBURETOR ASSY. (BE67S B)

$118.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-Z2G-D51

NOZZLE, MAIN

$23.99

$

Usually ships in 3-6 days

0

12

Honda 16176-Z2G-D51

SCREEN, FUEL STRAINER

$11.99

$

In Stock, Qty 5

0

13

Honda 16211-Z2G-D50

INSULATOR, CARBURETOR

$8.99

$

In Stock, only 1 left!

0

14

Honda 16212-ZH8-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

15

Honda 16217-Z2G-D50

SEAL, CARBURETOR INSULATOR

$2.99

$

Usually ships in 3-6 days

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

17

Honda 36161-ZL0-D31

LEVER, LINK (CARBURETOR NO.)

$14.99

$

Usually ships in 3-6 days

0

18

Honda 36162-ZL0-D31

SPRING, COMPRESSION COIL (CARBURETOR NO.)

$7.49

$

In Stock, Qty 11

0

19

Honda 36165-ZF6-F41

MOTOR, THROTTLE CONTROL

$103.99

$

Usually ships in 3-6 days

0

20

Honda 36166-ZL0-D31

BRACKET, THROTTLE MOTOR

$21.99

$

Usually ships in 3-6 days

0

21

Honda 90003-ZL0-D30

SCREW-WASHER (3X8)

$2.49

$

In Stock, only 4 left!

0

22

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

23

Honda 95003-05008-60M

BULK HOSE, VINYL (3.5X6.5X8000) (9500(95003-05001-60M) (CARBURETOR NO.)

$28.99

$

In Stock, only 1 left!

0

24

Honda 95003-07008-60M

BULK HOSE, VINYL (4X7X8000) (95003-07(95003-07001-60M) (CARBURETOR NO.)

$36.99

$

Usually ships in 3-6 days

0

25

Honda 99101-ZH8-0720

SEE PART DETAILS - PRI; JET, MAIN (#72) (CARBURETOR NO.)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

25

Honda 99101-ZH8-0750

JET, MAIN (#75) (CARBURETOR NO.)

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

25

Honda 99101-ZH8-0780

JET, MAIN (#78) (CARBURETOR NO.)

$8.49

$

Usually ships in 3-6 days

0

26

Honda 99204-ZE0-0450

JET SET, PILOT (#45) (CARBURETOR NO.)

$23.99

$

In Stock, only 1 left!

0

27

Honda 90001-Z2G-D50

BOLT, STUD (6X108) (CT200)

$4.99

$

Usually ships in 3-6 days

0
