EU2200i T AN1 (EAMT) - Honda Generator, Made in Thailand (SN: EAMT-1000001 - EAMT-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in Thailand

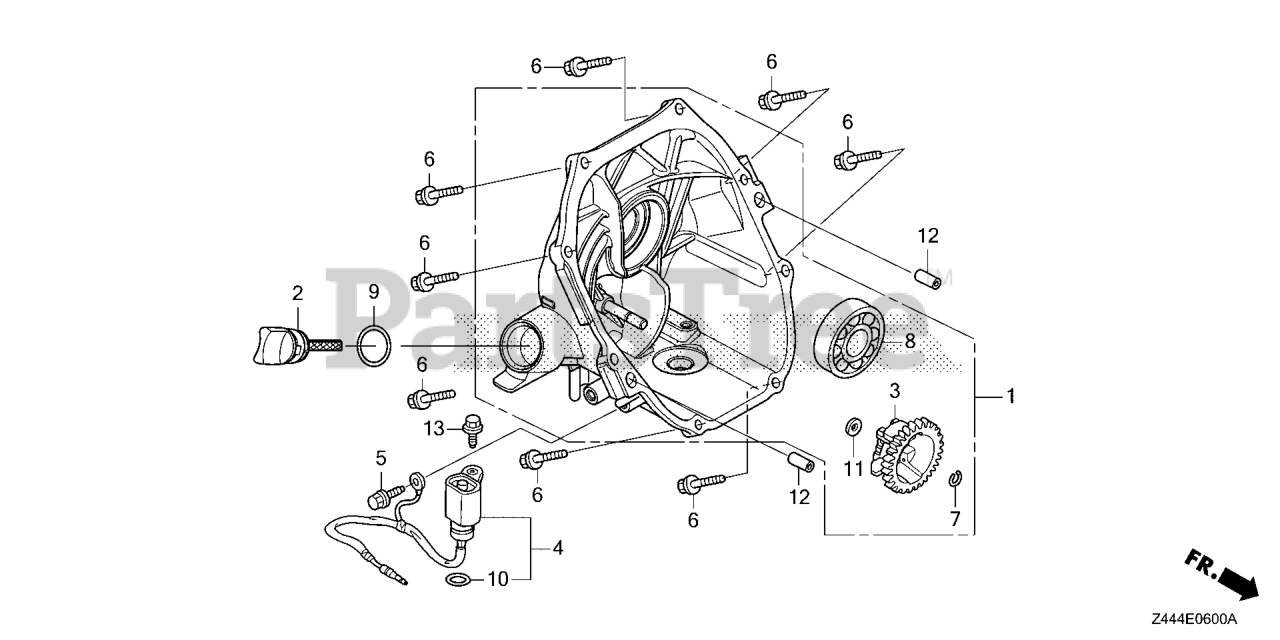

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZDJ-405

COVER ASSY., CRANKCASE

$160.99

$

Usually ships in 3-6 days

0

2

Honda 15620-ZE2-700

CAP, OIL FILLER

$8.49

$

In Stock, only 4 left!

0

3

Honda 16512-ZL8-000

HOLDER, GOVERNOR WEIGHT

$5.49

$

In Stock, Qty 12

0

4

Honda 35480-Z0D-D02

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

$50.99

$

In Stock, only 1 left!

0

5

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use from Engine SN 2673102.

$1.99

$

In Stock, Qty 20+

0

5

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

Note: Use up to Engine SN 2673101.

$2.99

$

In Stock, only 4 left!

0

6

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

7

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

8

Honda 91001-878-003

BEARING, RADIAL BALL (62/22) (Honda Code 0442061).

$37.99

$

In Stock, only 1 left!

0

9

Honda 91301-ZDJ-D00

O-RING (25.5X3)

$1.49

$

In Stock, Qty 9

0

10

Honda 91302-ZL8-003

O-RING (11.8X2.4)

$1.49

$

In Stock, only 2 left!

0

11

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

12

Honda 94301-08200

SEE PART DETAILS - PRI; PIN, DOWEL (8X20)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

Note: Use up to Engine SN 2673101.

$2.99

$

In Stock, only 4 left!

0

13

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

Note: Use from Engine SN 2673102.

$1.49

$

In Stock, Qty 5

0
