EU2200i T A3 (EAMT) - Honda Generator, Made in Thailand (SN: EAMT-1000001 - EAMT-9999999) FUEL TANK Parts Diagram

Generator, Made in Thailand

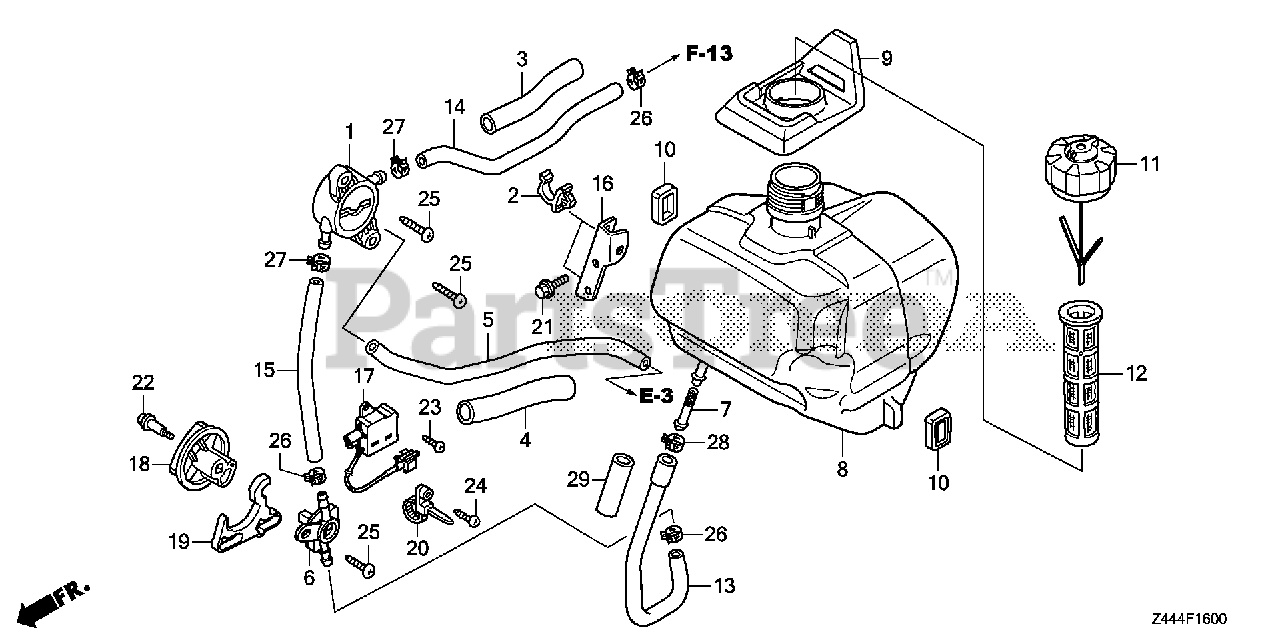

FUEL TANK Parts Diagram

  • Title

1

Honda 16700-ZT3-013

PUMP ASSY., FUEL (MSDS)

Note: Use up to Frame SN 2142835.

$48.99

$

In Stock, Qty 13

0

1

Honda 16700-Z44-004

PUMP ASSY., FUEL (MSDS)

Note: Use from Frame SN 2142836.

$122.99

$

Usually ships in 3-6 days

0

2

Honda 16731-ZE2-003

CLIP, TUBE (Honda Code 2026094).

$3.49

$

In Stock, only 2 left!

0

3

Honda 16854-Z07-000

RUBBER A, SUPPORTER

$3.99

$

Usually ships in 3-6 days

0

4

Honda 16857-ZT3-000

RUBBER B, SUPPORTER

$3.49

$

In Stock, only 1 left!

0

5

Honda 16882-Z07-000

TUBE, DIAPHRAGM

$4.49

$

In Stock, Qty 14

0

6

Honda 16950-Z44-A31

PETCOCK ASSY.

$13.99

$

Usually ships in 3-6 days

0

7

Honda 16952-Z39-C90

FILTER, FUEL

$1.99

$

In Stock, Qty 14

0

8

Honda 17511-Z07-E31

TANK, FUEL

$92.99

$

Usually ships in 3-6 days

0

9

Honda 17514-Z07-R30

SEAL, FUEL FILLER NECK

$10.99

$

In Stock, only 1 left!

0

10

Honda 17532-Z07-000

RUBBER A, TANK MOUNTING

$4.49

$

Usually ships in 3-6 days

0

11

Honda 17620-Z44-A30

CAP ASSY., FUEL TANK

$47.99

$

In Stock, only 1 left!

0

12

Honda 17670-Z07-R30

FILTER, FUEL

$16.99

$

In Stock, only 1 left!

0

13

Honda 17701-Z44-A31

TUBE, FUEL TANK (FKM)
(Superseded to 17701-Z44-A32)

Note: Use up to Frame SN 2149955.

$14.99

$

Usually ships in 3-6 days

0

13

Honda 17701-Z44-A32

TUBE, FUEL TANK (FKM)

Note: Use from Frame SN 2149956.

$14.99

$

Usually ships in 3-6 days

0

14

Honda 17702-Z07-E33

TUBE A, FUEL (FKM)

$

$

Not available

15

Honda 17703-Z07-E32

TUBE B, FUEL (FKM)
(Superseded to 17703-Z07-E33)

Note: Use up to Frame SN 2149955.

$8.99

$

Usually ships in 3-6 days

0

15

Honda 17703-Z07-E33

TUBE B, FUEL (FKM)

Note: Use from Frame SN 2149956.

$8.99

$

Usually ships in 3-6 days

0

16

Honda 17718-Z07-000

BRACKET, FUEL TUBE

$4.49

$

Usually ships in 3-6 days

0

17

Honda 35120-Z32-003

SWITCH ASSY., ENGINE STOP

$13.99

$

Usually ships in 3-6 days

0

18

Honda 35123-Z44-A30

KNOB, ENGINE SWITCH

$2.99

$

In Stock, only 1 left!

0

19

Honda 35127-Z44-A30

PLATE, ENGINE SWITCH

$1.49

$

In Stock, only 4 left!

0

20

Honda 36135-ZA8-801

BAND, HARNESS

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

22

Honda 90105-ZT3-000

SCREW, PAN (4X19)

$2.49

$

In Stock, only 1 left!

0

23

Honda 93901-12320

SCREW, TAPPING (3X12)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93901-12420

SCREW, TAPPING (3X16)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93913-25520

SCREW, TAPPING (5X20) (PO)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0

27

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

$3.49

$

In Stock, Qty 8

0

28

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

$3.49

$

In Stock, Qty 7

0

29

Honda 16858-Z39-C30

RUBBER, SUPPORTER (C)

$2.49

$

Usually ships in 3-6 days

0
