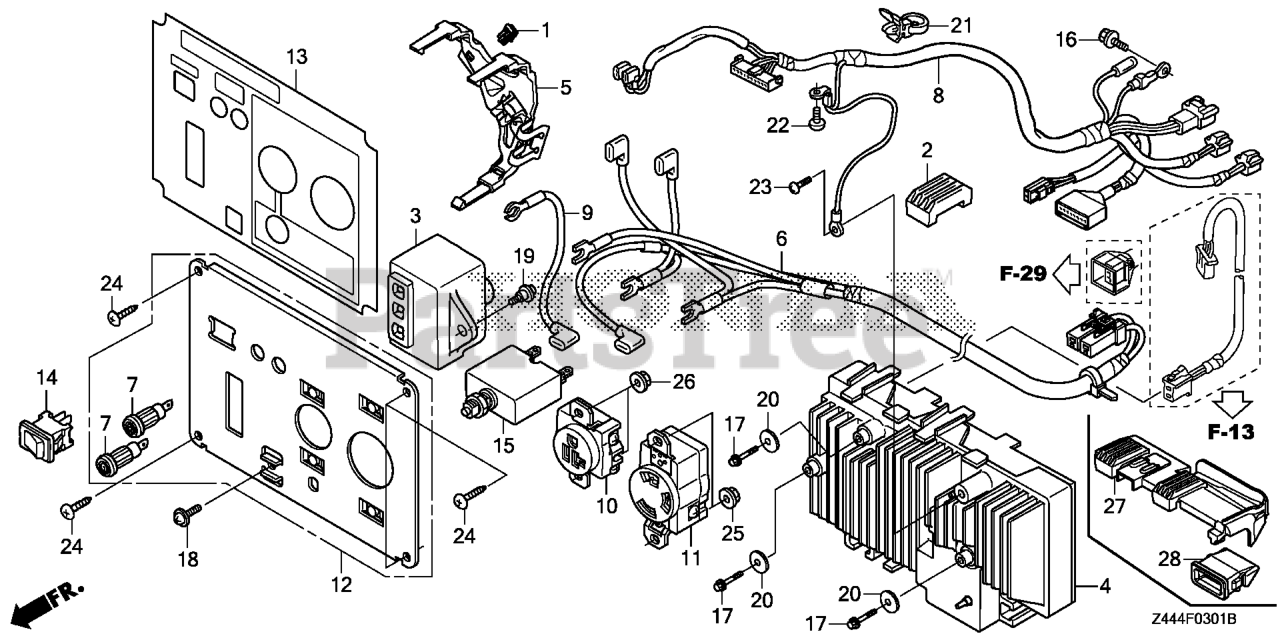

EU2200i T A1 (EAMT) - Honda Generator, Made in Thailand (SN: EAMT-1000001 - EAMT-9999999) CONTROL PANEL (2) Parts Diagram

Generator, Made in Thailand

CONTROL PANEL (2) Parts Diagram

  • Title

1

Honda 16731-MEN-A71

CLIP, TUBE

$2.99

$

Usually ships in 3-6 days

0

2

Honda 17533-Z44-A30

RUBBER B, TANK MOUNTING

Note: Use up to Frame SN 2062580.

$5.49

$

Usually ships in 3-6 days

0

3

Honda 30400-Z44-A01

SPARK UNIT

$60.99

$

In Stock, only 3 left!

0

4

Honda 31310-Z44-A32

INVERTER UNIT

$428.99

$

Usually ships in 3-6 days

0

5

Honda 31314-Z44-A30

BRACKET, INVERTER HARNESS

$1.99

$

Usually ships in 3-6 days

0

6

Honda 32105-Z44-C30

SUB-WIRE HARNESS ASSY.

$38.99

$

Usually ships in 3-6 days

0

7

Honda 32139-Z07-C00

SOCKET, COMPOSITE

$30.99

$

Usually ships in 3-6 days

0

8

Honda 32150-Z44-C30

WIRE HARNESS ASSY., CONTROL
(Superseded to 32150-Z44-C31)

Note: Use up to Frame SN 2062580.

$39.99

$

Usually ships in 3-6 days

0

8

Honda 32150-Z44-C31

WIRE HARNESS ASSY., CONTROL

Note: Use from Frame SN 2062581.

$39.99

$

Usually ships in 3-6 days

0

9

Honda 32221-Z07-C30

WIRE, TERMINAL

$6.49

$

Usually ships in 3-6 days

0

10

Honda 32330-Z07-R22

SEE PART DETAILS - PRI; RECEPTACLE (20A/125V)

$72.99

$

Usually ships in 3-6 days

0

11

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$48.99

$

In Stock, only 1 left!

0

12

Honda 32345-Z07-R20

PANEL, CONTROL

$106.99

$

Usually ships in 3-6 days

0

13

Honda 32366-Z44-C30

MARK, CONTROL PANEL

$19.99

$

Usually ships in 3-6 days

0

14

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$25.99

$

In Stock, only 3 left!

0

15

Honda 38240-Z07-A31

PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO)

$39.99

$

Usually ships in 3-6 days

0

15

Honda 38240-Z07-T20

PROTECTOR, CIRCUIT (20A) (BLACK)(JOEMEX)

$98.99

$

Usually ships in 3-6 days

0

16

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90101-P4V-010

BOLT, FLANGE (5X12)

$3.49

$

In Stock, only 2 left!

0

18

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90108-MN0-000

SCREW, PAN (5X13)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90581-310-000

WASHER, PLAIN (20MM)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 90676-692-000

BAND (100MM) (BLACK)

$9.49

$

Usually ships in 3-6 days

0

22

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 93500-05010-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 93913-25480

SCREW, TAPPING (5X16) (PO)

$1.49

$

In Stock, Qty 14

0

25

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

26

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

27

Honda 17533-Z44-A30

RUBBER B, TANK MOUNTING

Note: Use from Frame SN 2062581.

$5.49

$

Usually ships in 3-6 days

0

28

Honda 32137-Z44-A30

COVER, CONNECTOR

Note: Use from Frame SN 2062581.

$1.49

$

Usually ships in 3-6 days

0
