EU2200i T A1 (EAMT) - Honda Generator, Made in Thailand (SN: EAMT-1000001 - EAMT-9999999) AIR CLEANER Parts Diagram

Generator, Made in Thailand

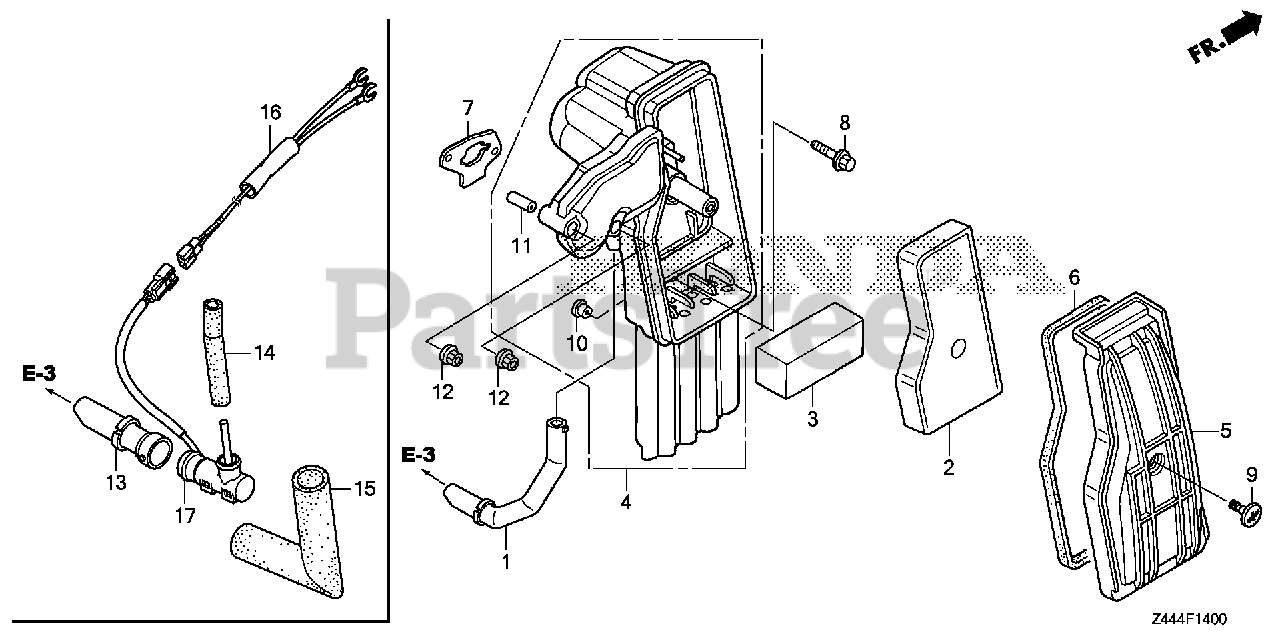

AIR CLEANER Parts Diagram

  • Title
1

Honda 15721-Z44-000

TUBE, BREATHER

$2.99

$

In Stock, only 1 left!

0

2

Honda 17211-Z07-000

ELEMENT, AIR CLEANER

$8.99

$

In Stock, Qty 20+

0

3

Honda 17218-Z07-000

FILTER (OUTER)

$7.99

$

In Stock, Qty 20+

0

4

Honda 17220-Z07-010

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER

$12.99

$

In Stock, only 4 left!

0

5

Honda 17231-Z07-000

COVER, AIR CLEANER

$11.99

$

In Stock, only 1 left!

0

6

Honda 17233-Z07-000

SEAL A, AIR CLEANER COVER

$5.49

$

In Stock, Qty 10

0

7

Honda 17274-ZT3-000

GASKET, AIR IN. JOINT

$3.49

$

In Stock, Qty 14

0

8

Honda 90012-892-000

BOLT, FLANGE (5X16) (Honda Code 0941096).

$1.99

$

In Stock, only 4 left!

0

9

Honda 90102-Z07-003

SCREW, SPECIAL (6X16)

$4.49

$

In Stock, Qty 19

0

10

Honda 90129-463-770

COLLAR, REFLECTOR SETTING

$4.49

$

In Stock, only 1 left!

0

11

Honda 91551-Z07-000

COLLAR, AIR CLEANER

$3.49

$

Usually ships in 3-6 days

0

12

Honda 94050-05080

NUT, FLANGE (5MM) (Honda Code 0612671).

$0.99

$

In Stock, Qty 6

0
