EU2000i T1 A4 (EACT) - Honda Generator, Made in Thailand (SN: EACT-1000001 - EACT-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Thailand

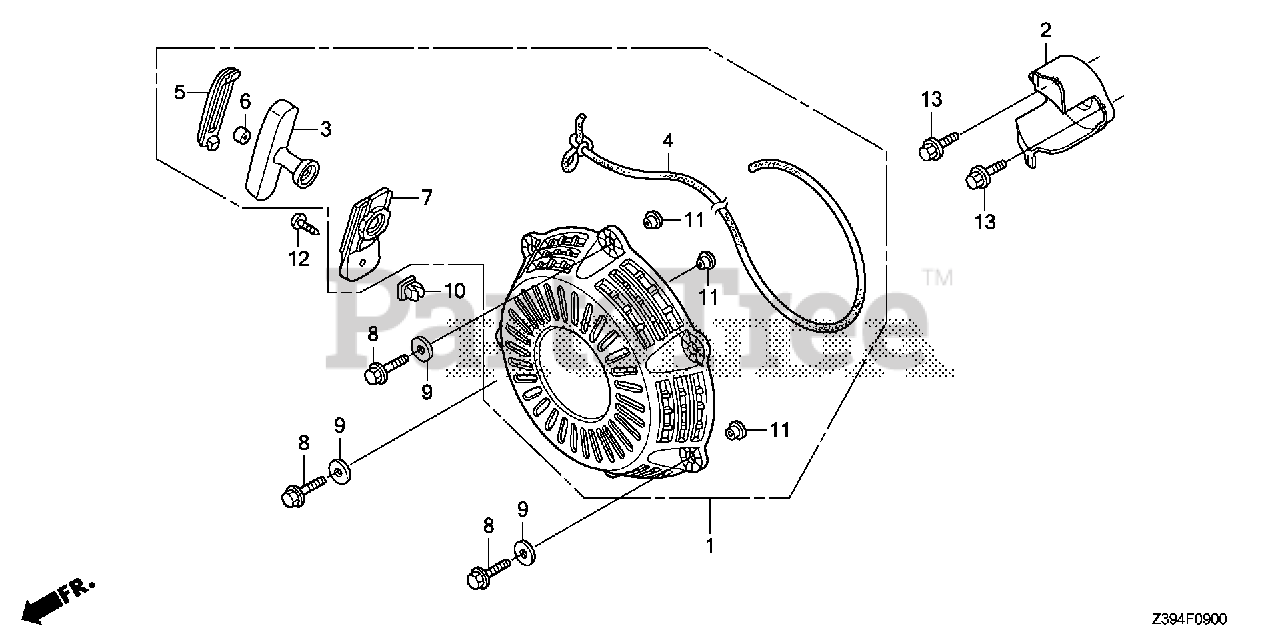

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z07-004

STARTER ASSY., RECOIL

Note: Use up to Frame SN 1434763.

$63.99

$

In Stock, only 2 left!

0

1

Honda 28400-Z39-305

STARTER ASSY., RECOIL (COO)(FOR U.S.A.)
(Superseded to 28400-Z39-C91)

Note: Use from Frame SN 1434764.

$25.99

$

In Stock, only 1 left!

0

2

Honda 28451-Z07-004

PULLEY, STARTER

$19.99

$

Usually ships in 3-6 days

0

3

Honda 28461-Z07-004

GRIP, STARTER

$4.99

$

In Stock, Qty 5

0

4

Honda 28462-Z07-004

ROPE, STARTER

$5.99

$

In Stock, Qty 16

0

5

Honda 28464-Z07-004

COVER, GRIP

$3.49

$

In Stock, Qty 9

0

6

Honda 28469-ZE2-W01

REINFORCEMENT, GRIP

$7.49

$

In Stock, only 2 left!

0

7

Honda 28475-Z07-004

GUIDE, STARTER ROPE

$10.99

$

In Stock, Qty 12

0

8

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$3.49

$

In Stock, only 2 left!

0

9

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90652-SA5-670

GROMMET, SCREW (6MM)

$4.99

$

In Stock, only 3 left!

0

11

Honda 91552-Z07-000

COLLAR, RECOIL STARTER

$2.99

$

Usually ships in 3-6 days

0

12

Honda 93913-15480

SCREW, TAPPING (5X16) (PO)

$1.49

$

In Stock, Qty 7

0

13

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 9

0
