EU2000i T1 A1 (EACT) - Honda Generator, Made in Thailand (SN: EACT-1000001 - EACT-9999999) ROTOR + STATOR Parts Diagram

Generator, Made in Thailand

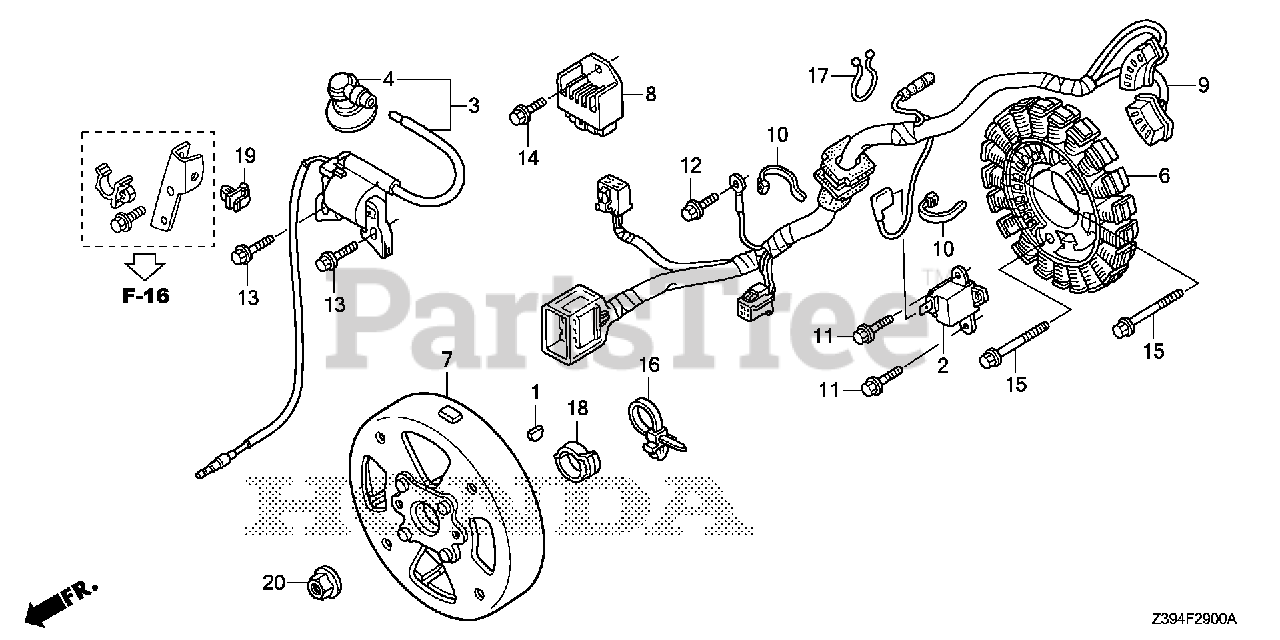

ROTOR + STATOR Parts Diagram

  • Title

1

Honda 13331-ZM7-000

KEY, SPECIAL

$4.99

$

Usually ships in 3-6 days

0

2

Honda 30300-Z07-003

GENERATOR, PULSE

$42.99

$

In Stock, only 1 left!

0

3

Honda 30500-Z39-C91

COIL ASSY., IGNITION

$29.99

$

Usually ships in 3-6 days

0

4

Honda 30700-Z39-C91

CAP ASSY., NOISE SUPPRESSOR

$11.99

$

In Stock, only 2 left!

0

6

Honda 31125-Z07-C31

STATOR

$206.99

$

Usually ships in 3-6 days

0

7

Honda 31130-Z07-C01

ROTOR

$240.99

$

Usually ships in 3-6 days

0

8

Honda 31710-ZS9-A02

RECTIFIER ASSY.

$27.99

$

In Stock, only 2 left!

0

9

Honda 32158-Z07-E21

WIRE HARNESS ASSY., GENERATOR

$216.99

$

Usually ships in 3-6 days

0

10

Honda 83645-GG0-000

BAND, NYLON

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90012-ZM3-U30

BOLT, FLANGE (5X14) (CT200)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90019-883-000

BOLT, FLANGE (5X10) (CT200)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$3.49

$

In Stock, only 2 left!

0

14

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90101-Z07-000

BOLT, FLANGE (5X32) (CT200)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90676-SA8-003

BAND, WIRE HARNESS (150MM) (BLUE)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 90683-GS9-670

BAND, TUBE

$3.49

$

Usually ships in 3-6 days

0

18

Honda 90683-KJ2-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90683-SB3-003

CLIP, WIRE HARNESS

$9.49

$

Usually ships in 3-6 days

0

20

Honda 94050-12080

NUT, FLANGE (12MM)

$2.99

$

Usually ships in 3-6 days

0
