EU2000i K1 A3 (EAAJ) - Honda Generator, Made in Japan (SN: EAAJ-2017305 - EAAJ-9999999) CONTROL PANEL (EU2000IK1) (2) Parts Diagram

Generator, Made in Japan

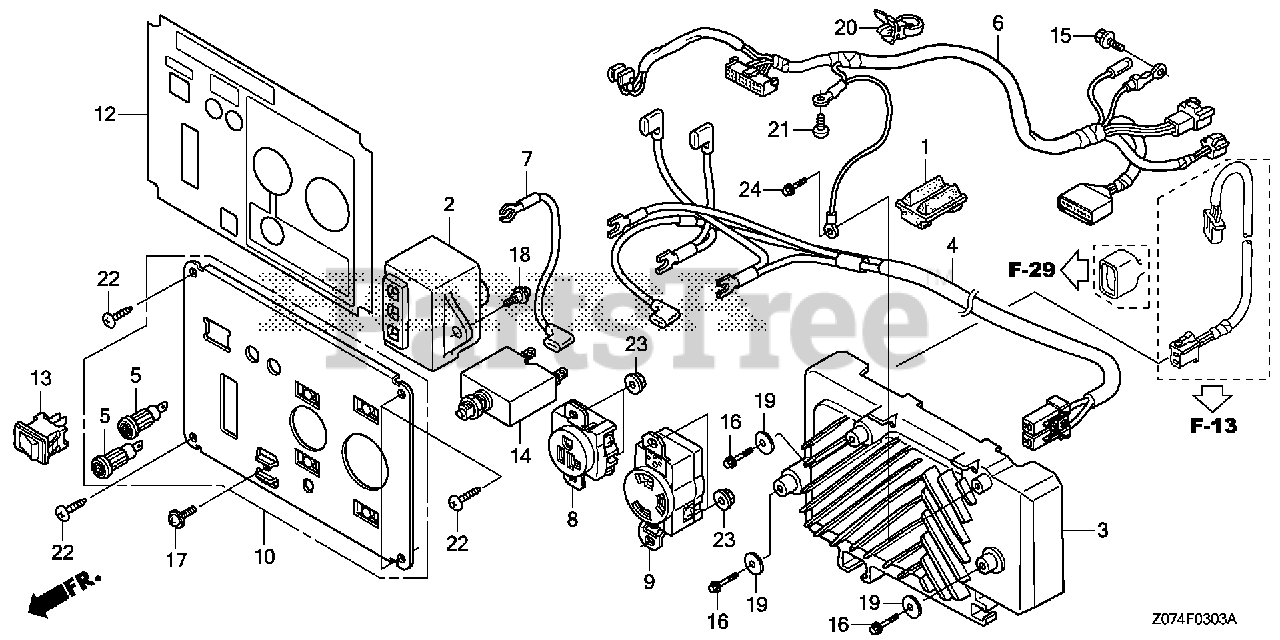

CONTROL PANEL (EU2000IK1) (2) Parts Diagram

  • Title

1

Honda 17533-Z07-000

RUBBER B, TANK MOUNTING

$4.99

$

In Stock, only 1 left!

0

2

Honda 30400-Z07-013

SPARK UNIT
(Superseded to 30400-Z39-C91)

$74.99

$

In Stock, only 2 left!

0

3

Honda 31310-Z07-E21

INVERTER UNIT

$753.99

$

Usually ships in 3-6 days

0

4

Honda 32105-Z07-T21

SUB-WIRE HARNESS ASSY.

$45.99

$

Usually ships in 3-6 days

0

5

Honda 32139-Z07-C00

SOCKET, COMPOSITE

$31.99

$

In Stock, only 2 left!

0

6

Honda 32150-Z07-T20

SEE PART DETAILS - SUP; WIRE HARNESS ASSY., CONTROL
(Superseded to 32150-Z07-T21)

$33.99

$

Usually ships in 3-6 days

0

6

Honda 32150-Z07-T21

SEE PART DETAILS - PRI; WIRE HARNESS ASSY., CONTROL

$33.99

$

Usually ships in 3-6 days

0

7

Honda 32221-Z07-C30

WIRE, TERMINAL

$6.49

$

Usually ships in 3-6 days

0

8

Honda 32330-Z07-R22

SEE PART DETAILS - PRI; RECEPTACLE (20A/125V)

$76.99

$

Usually ships in 3-6 days

0

9

Honda 32332-880-710

RECEPTACLE (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

10

Honda 32345-Z07-R20

PANEL, CONTROL

$111.99

$

Usually ships in 3-6 days

0

11

Honda 32346-Z07-R20

PANEL, CONTROL

$87.99

$

Usually ships in 3-6 days

0

12

Honda 32366-Z07-R21

MARK, CONTROL PANEL

$19.99

$

In Stock, only 1 left!

0

13

Honda 36214-ZS9-A01

SEE PART DETAILS - PRI; SWITCH, AUTO-THROTTLE

$26.99

$

In Stock, only 2 left!

0

14

Honda 38240-Z07-A31

PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO)

$41.99

$

Usually ships in 3-6 days

0

15

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 90101-P4V-010

BOLT, FLANGE (5X12)

$3.49

$

In Stock, only 2 left!

0

17

Honda 90102-899-003

SCREW, PAN (5X12)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90108-MN0-000

SCREW, PAN (5X13)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90581-310-000

WASHER, PLAIN (20MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90676-692-000

BAND (100MM) (BLACK)

$9.49

$

Usually ships in 3-6 days

0

21

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93913-25480

SCREW, TAPPING (5X16) (PO)

$1.49

$

In Stock, Qty 14

0

23

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

24

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0
