EU2000i AN (EAAJ) - Honda Generator, Made in Japan (SN: EAAJ-1170001 - EAAJ-9999999) FUEL TANK (1) Parts Diagram

Generator, Made in Japan

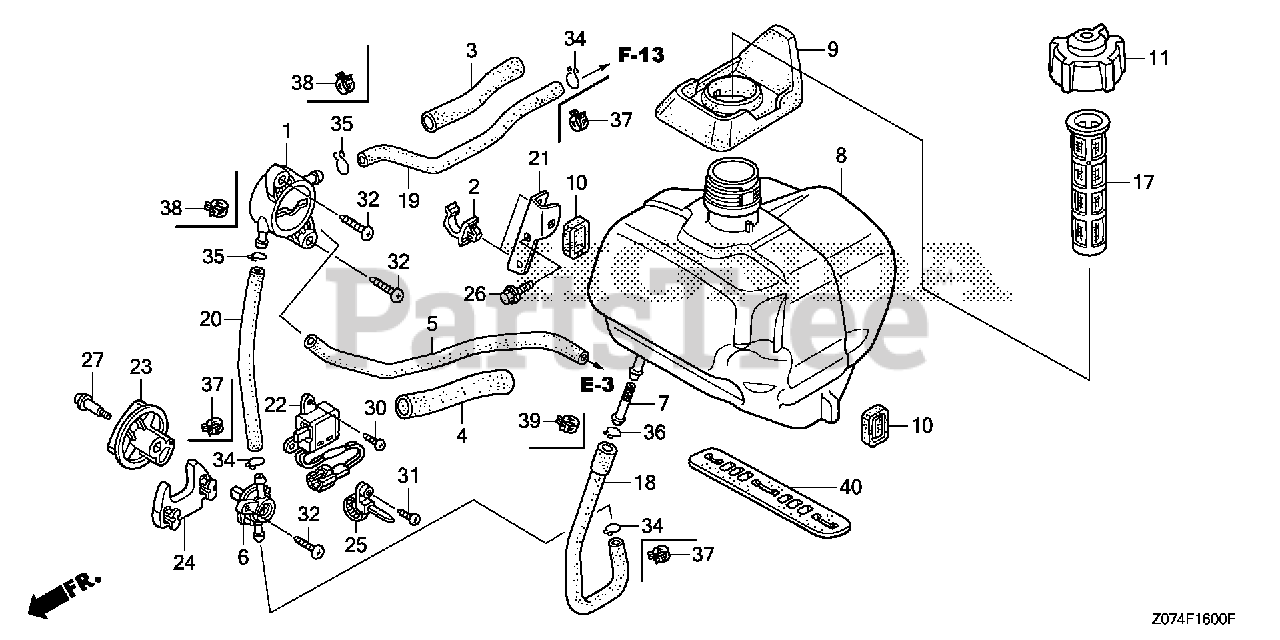

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16700-ZT3-013

PUMP ASSY., FUEL (MSDS)

$46.99

$

In Stock, Qty 5

0

2

Honda 16731-ZE2-003

CLIP, TUBE (Honda Code 2026094).

$2.99

$

In Stock, only 2 left!

0

3

Honda 16854-Z07-000

RUBBER A, SUPPORTER

$3.99

$

Usually ships in 3-6 days

0

4

Honda 16857-ZT3-000

RUBBER B, SUPPORTER

$3.49

$

In Stock, only 1 left!

0

5

Honda 16882-Z07-000

TUBE, DIAPHRAGM

$4.49

$

In Stock, Qty 5

0

6

Honda 16950-ZT3-003

PETCOCK ASSY.

$42.99

$

Usually ships in 3-6 days

0

7

Honda 16952-ZA8-800

FILTER, FUEL

$8.99

$

In Stock, only 3 left!

0

8

Honda 17511-Z07-000

TANK, FUEL

$60.99

$

In Stock, only 1 left!

0

9

Honda 17514-Z07-R30

SEAL, FUEL FILLER NECK

Note: Use from Frame SN 1568063.

$10.99

$

In Stock, only 1 left!

0

9

Honda 17514-Z07-000

SEAL, FUEL FILLER NECK

Note: Use up to Frame SN 1568062.

$10.99

$

Usually ships in 3-6 days

0

10

Honda 17532-Z07-000

RUBBER A, TANK MOUNTING

$3.99

$

Usually ships in 3-6 days

0

11

Honda 17620-ZT3-020

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZT3-030)

Note: Use up to Frame SN 1905558.

$20.99

$

In Stock, only 2 left!

0

11

Honda 17620-ZT3-030

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$20.99

$

In Stock, only 2 left!

0

12

Honda 17622-ZC3-000

INNER, FUEL CAP (NOT AVAILABLE)

$

$

Not available

13

Honda 17623-ZV0-000

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 3 left!

0

14

Honda 17625-ZV0-000

GASKET, FUEL CAP

$4.49

$

In Stock, only 3 left!

0

15

Honda 17626-ZC3-020

VALVE, BREATHER

$

$

Not available

16

Honda 17629-ZV0-000

SPRING, FUEL CAP

$2.99

$

In Stock, only 1 left!

0

17

Honda 17670-Z07-000

FILTER, FUEL

$19.99

$

In Stock, only 2 left!

0

18

Honda 17701-Z07-C32

TUBE, FUEL TANK (FKM)
(Superseded to 17701-Z07-C33)

Note: Use from Frame SN 1848645.

$13.99

$

In Stock, only 1 left!

0

18

Honda 17701-Z07-000

TUBE, FUEL TANK

Note: Use up to Frame SN 1848644.

$6.99

$

In Stock, only 4 left!

0

19

Honda 17702-Z07-C32

TUBE A, FUEL (FKM)

Note: Use from Frame SN 1848645.

$

$

Not available

19

Honda 17702-Z07-000

TUBE A, FUEL

Note: Use up to Frame SN 1848644.

$5.99

$

In Stock, only 1 left!

0

20

Honda 17703-Z07-C32

TUBE B, FUEL (FKM)
(Superseded to 17703-Z07-E33)

Note: Use from Frame SN 1848645.

$8.49

$

In Stock, only 1 left!

0

20

Honda 17703-Z07-000

TUBE B, FUEL

Note: Use up to Frame SN 1848644.

$4.49

$

In Stock, only 2 left!

0

21

Honda 17718-Z07-000

BRACKET, FUEL TUBE

$3.99

$

Usually ships in 3-6 days

0

22

Honda 35120-ZT3-023

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: Use up to Frame SN 1568062.

$17.99

$

In Stock, only 1 left!

0

22

Honda 35120-ZT3-023

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: Use from Frame SN 1568063 to 1827488.

$17.99

$

In Stock, only 1 left!

0

22

Honda 35120-ZT3-023

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

Note: Use from Frame SN 1827489.

$17.99

$

In Stock, only 1 left!

0

23

Honda 35123-Z07-000

KNOB, ENGINE SWITCH

$11.99

$

Usually ships in 3-6 days

0

24

Honda 35127-Z07-000

PLATE, ENGINE SWITCH

$7.99

$

Usually ships in 3-6 days

0

25

Honda 36135-ZA8-801

BAND, HARNESS

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

27

Honda 90105-ZT3-000

SCREW, PAN (4X19)

$2.49

$

In Stock, only 1 left!

0

28

Honda 90539-836-000

WASHER (6MM)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 91362-ZC3-000

O-RING (13.8X2.4) (N/A: SEE ASSEMBLY)

$

$

Not available

30

Honda 93901-12320

SCREW, TAPPING (3X12)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 93901-12420

SCREW, TAPPING (3X16)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93913-25520

SCREW, TAPPING (5X20) (PO)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 11

0

34

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

Note: Use up to Frame SN 1848644.

$2.49

$

In Stock, Qty 10

0

35

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use up to Frame SN 1848644.

$2.49

$

Usually ships in 3-6 days

0

36

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

Note: Use up to Frame SN 1848644.

$2.49

$

In Stock, Qty 9

0

37

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

Note: Use from Frame SN 1848645.

$2.99

$

In Stock, Qty 10

0

38

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

Note: Use from Frame SN 1848645.

$3.49

$

In Stock, Qty 8

0

39

Honda 95002-41050-08

SEE PART DETAILS - PRI; CLIP, TUBE (10.5MM)

Note: Use from Frame SN 1848645.

$3.49

$

In Stock, Qty 7

0
