EU2000i AN (EAAJ) - Honda Generator, Made in Japan (SN: EAAJ-1170001 - EAAJ-9999999) AIR CLEANER Parts Diagram

Generator, Made in Japan

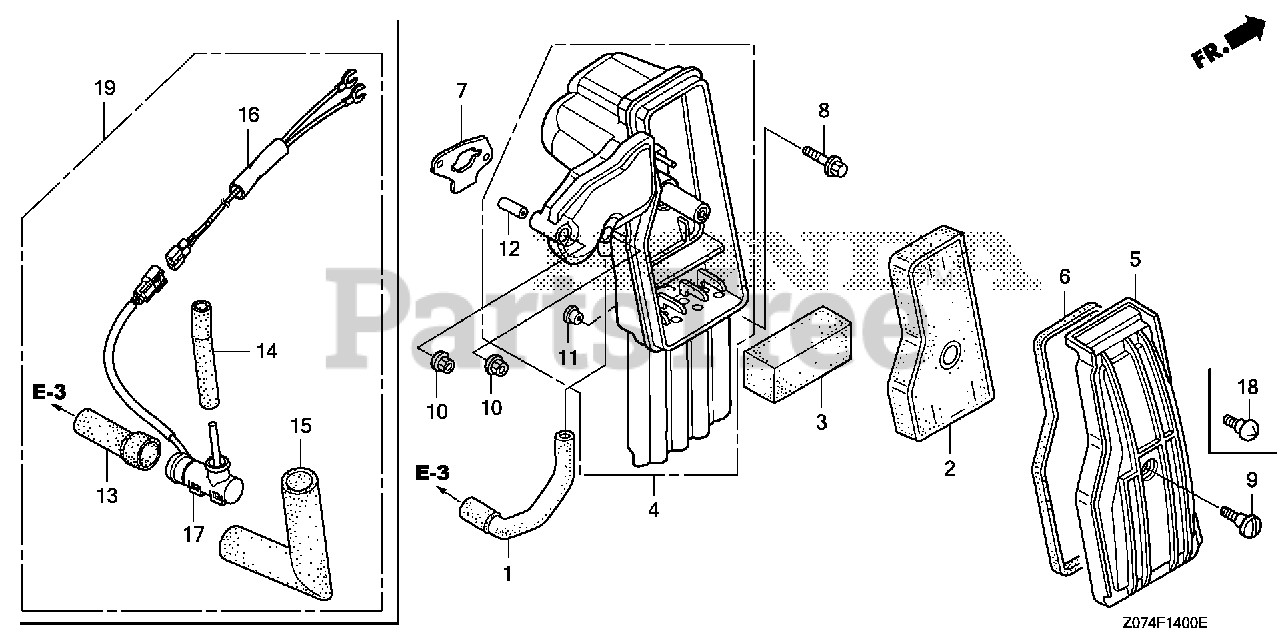

AIR CLEANER Parts Diagram

  • Title

1

Honda 15721-Z07-000

TUBE, BREATHER

$7.49

$

In Stock, Qty 11

0

2

Honda 17211-Z07-000

ELEMENT, AIR CLEANER

$8.99

$

Usually ships in 3-6 days

0

3

Honda 17218-Z07-000

FILTER (OUTER)

$7.99

$

In Stock, Qty 20+

0

4

Honda 17220-Z07-010

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER

$12.99

$

In Stock, only 4 left!

0

5

Honda 17231-Z07-000

COVER, AIR CLEANER

$11.99

$

Usually ships in 3-6 days

0

6

Honda 17233-Z07-000

SEAL A, AIR CLEANER COVER

$5.49

$

In Stock, only 2 left!

0

7

Honda 17274-ZT3-000

GASKET, AIR IN. JOINT

$2.99

$

In Stock, Qty 14

0

8

Honda 90012-892-000

BOLT, FLANGE (5X16) (Honda Code 0941096).

$1.99

$

In Stock, only 3 left!

0

9

Honda 90028-ZC3-000

BOLT, AIR CLEANER COVER (- SCREW)

Note: Use up to Frame SN 1973321.

$5.99

$

In Stock, Qty 9

0

10

Honda 94050-05080

NUT, FLANGE (5MM) (Honda Code 0612671).

$0.99

$

In Stock, Qty 6

0

11

Honda 90129-463-770

COLLAR, REFLECTOR SETTING

$4.49

$

Usually ships in 3-6 days

0

12

Honda 91551-Z07-000

COLLAR, AIR CLEANER

$3.49

$

Usually ships in 3-6 days

0

13

Honda 15721-Z07-C40

TUBE A, BREATHER

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

14

Honda 15722-Z07-C40

TUBE B, BREATHER

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

15

Honda 15723-Z07-C40

INSULATOR L, BREATHER TUBE

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

16

Honda 32198-Z07-C40

SUB-WIRE ASSY.

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

17

Honda 39310-Z07-C42

HEATER ASSY., BREATHER (L)

Note: (Optional).

$273.99

$

Usually ships in 3-6 days

0

18

Honda 90102-Z07-003

SCREW, SPECIAL (6X16)

Note: Use from Frame SN 1973322.

$3.99

$

In Stock, Qty 20+

0

19

Honda 06390-Z07-C20

HEATER KIT, BREATHER

Note: (Optional).

$143.99

$

Usually ships in 3-6 days

0
