EU2000i AC (EAAJ) - Honda Generator, Made in Japan (SN: EAAJ-1170001 - EAAJ-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

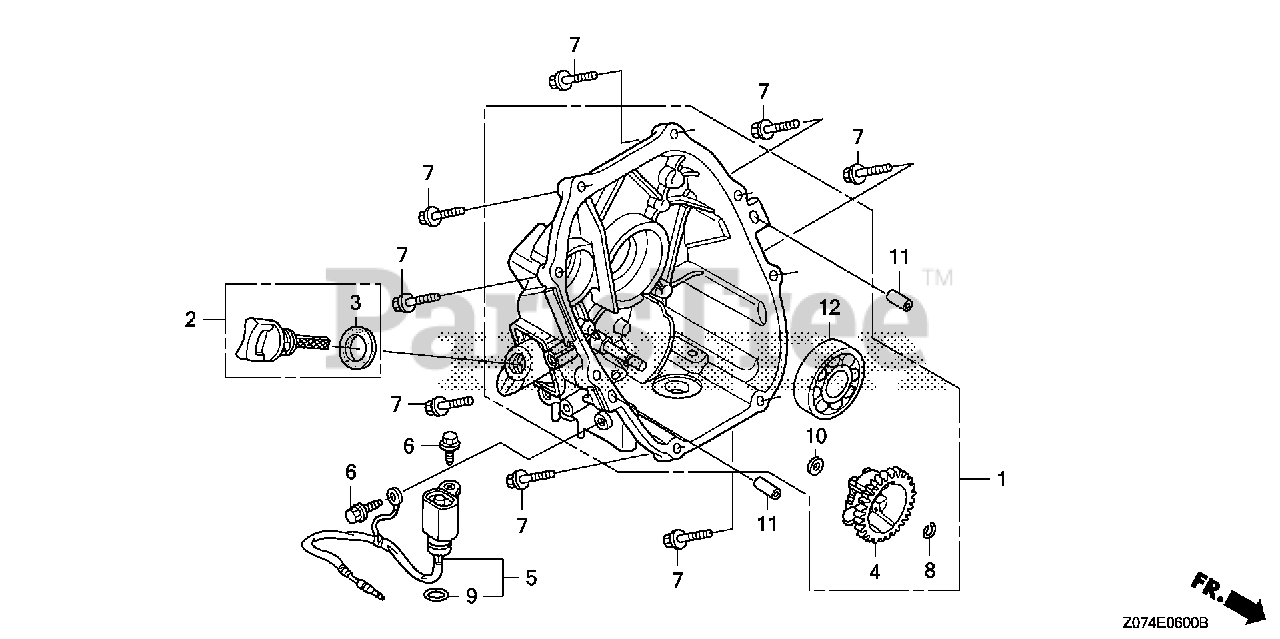

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-Z0D-408

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE
(Superseded to 11300-Z0D-418)

Note: Use up to Engine SN 1939969.

$262.99

$

Usually ships in 3-6 days

0

1

Honda 11300-Z0D-418

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$262.99

$

Usually ships in 3-6 days

0

2

Honda 15600-ZM7-003

CAP ASSY., OIL FILLER
(Superseded to 15600-ZDF-000)

$1.99

$

In Stock, only 4 left!

0

3

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

4

Honda 16512-ZL8-000

HOLDER, GOVERNOR WEIGHT

$5.49

$

In Stock, Qty 12

0

5

Honda 35480-Z0D-D02

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL

$52.99

$

In Stock, only 1 left!

0

6

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

7

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

8

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

9

Honda 91302-ZL8-003

O-RING (11.8X2.4)

$1.49

$

In Stock, only 2 left!

0

10

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

11

Honda 94301-08200

SEE PART DETAILS - PRI; PIN, DOWEL (8X20)

$2.99

$

Usually ships in 3-6 days

0

12

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204) (Honda Code 0674390).

$16.99

$

In Stock, only 2 left!

0
