EU1000i T1 AG (EAAT) - Honda Generator, Made in Thailand (SN: EAAT-2000001 - EAAT-9999999) FRONT COVER@SIDE COVER Parts Diagram

Generator, Made in Thailand

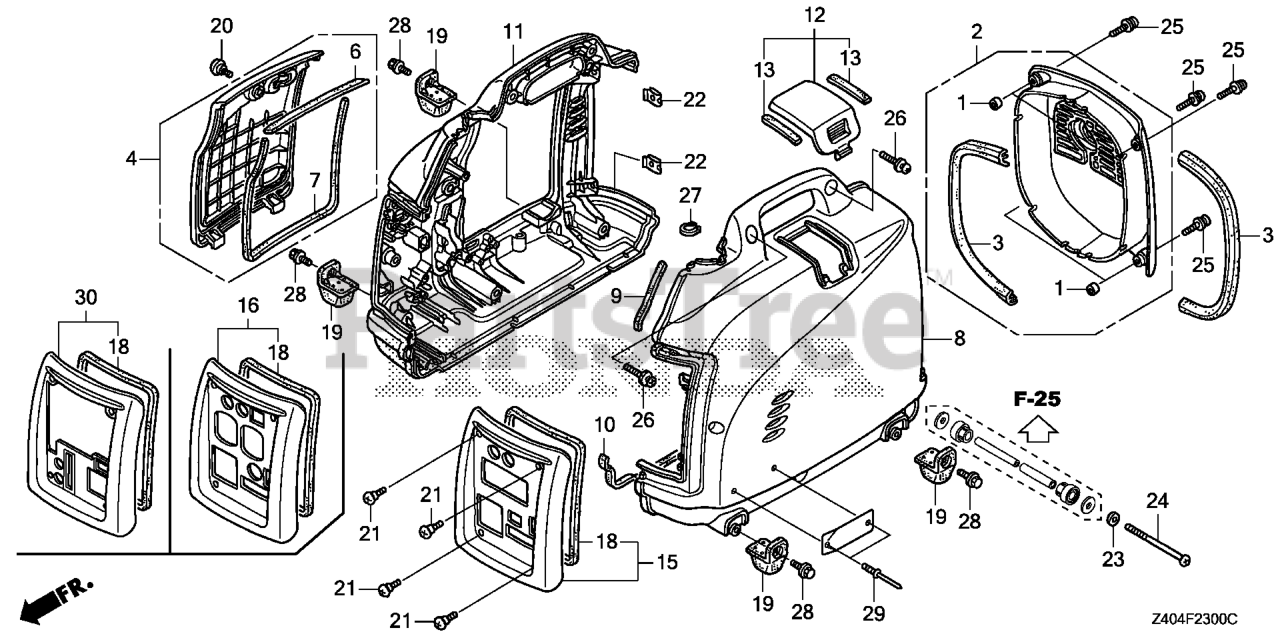

FRONT COVER@SIDE COVER Parts Diagram

  • Title

1

Honda 16598-ZG1-750

COLLAR, CONTROL COVER

$2.49

$

In Stock, Qty 8

0

2

Honda 18320-ZT3-000

PROTECTOR, MUFFLER

$62.99

$

Usually ships in 3-6 days

0

3

Honda 18327-ZT3-300

SEAL RUBBER, PROTECTOR

$12.99

$

Usually ships in 3-6 days

0

4

Honda 63150-ZT3-C01

SEE PART DETAILS - PRI; COVER ASSY., MAINTENANCE

$27.99

$

Usually ships in 3-6 days

0

6

Honda 63153-ZT3-000

SEAL A, MAINTENANCE COVER

$2.49

$

In Stock, Qty 5

0

7

Honda 63154-ZT3-000

SEAL B, MAINTENANCE COVER

$3.99

$

In Stock, only 2 left!

0

8

Honda 63210-ZT3-C02

COVER, R. SIDE

$87.99

$

In Stock, only 1 left!

0

9

Honda 63218-ZT3-000

SEAL A, SIDE COVER

$2.49

$

In Stock, only 2 left!

0

10

Honda 63219-ZT3-000

SEAL B, SIDE COVER

$2.49

$

In Stock, only 2 left!

0

11

Honda 63220-ZT3-C02

COVER, L. SIDE

$87.99

$

Usually ships in 3-6 days

0

12

Honda 63340-ZT3-C01

SEE PART DETAILS - PRI; COVER ASSY., PLUG CHECK

$10.99

$

Usually ships in 3-6 days

0

13

Honda 63344-ZT3-000

SEAL, PLUG CHECK

$2.49

$

Usually ships in 3-6 days

0

18

Honda 63512-ZT3-000

SEAL, FR. COVER

$4.49

$

Usually ships in 3-6 days

0

19

Honda 68325-ZT3-000

RUBBER (LOWER)

$14.99

$

In Stock, only 2 left!

0

20

Honda 90102-Z07-003

SCREW, SPECIAL (6X16)

$4.49

$

In Stock, Qty 11

0

21

Honda 90114-Z39-C30

SCREW, FR. COVER

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90320-GE2-760

NUT, SPRING (5MM)

$2.99

$

In Stock, Qty 5

0

23

Honda 90485-286-000

WASHER (6MM) (Honda Code 0155077).

$2.49

$

In Stock, only 1 left!

0

24

Honda 93500-06100-0A

SCREW, PAN (6X100)

$1.99

$

In Stock, only 3 left!

0

25

Honda 93891-05016-07

SCREW-WASHER (5X16)

$1.99

$

In Stock, only 4 left!

0

26

Honda 93891-06020-07

SCREW-WASHER (6X20) (Honda Code 1188614).

$1.99

$

In Stock, Qty 20+

0

27

Honda 94514-10150

CIRCLIP (OUTER) (10MM)

$1.49

$

In Stock, only 3 left!

0

28

Honda 96001-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 3 left!

0

30

Honda 63510-Z40-A30

COVER ASSY., FR.

$47.99

$

Usually ships in 3-6 days

0
