EU1000i T1 A/A (EAAT) - Honda Generator, Made in Thailand (SN: EAAT-2000001 - EAAT-9999999) AIR CLEANER@SHROUD Parts Diagram

Generator, Made in Thailand

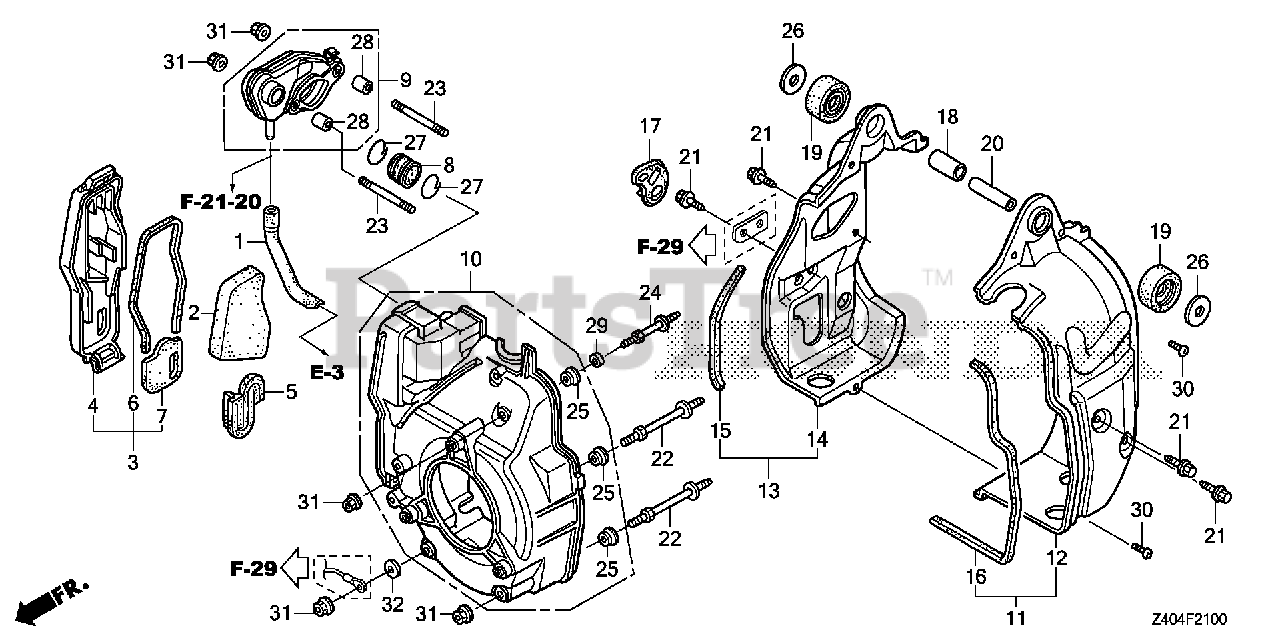

AIR CLEANER@SHROUD Parts Diagram

  • Title

1

Honda 15721-ZT3-000

TUBE, BREATHER

$6.49

$

Usually ships in 3-6 days

0

2

Honda 17211-ZT3-000

ELEMENT, AIR CLEANER

$3.99

$

In Stock, Qty 9

0

3

Honda 17230-ZT3-000

COVER, AIR CLEANER

$16.99

$

Usually ships in 3-6 days

0

4

Honda 17231-ZT3-000

COVER, AIR CLEANER

$11.99

$

Usually ships in 3-6 days

0

5

Honda 17232-ZT3-000

RUBBER, AIR CLEANER

$6.99

$

In Stock, Qty 7

0

6

Honda 17233-ZT3-000

SEAL A, AIR CLEANER COVER

$3.49

$

Usually ships in 3-6 days

0

7

Honda 17234-ZT3-000

SEAL B, AIR CLEANER COVER

$5.99

$

In Stock, only 2 left!

0

8

Honda 17251-ZT3-000

TUBE, AIR CLEANER CONNECTING

$3.49

$

Usually ships in 3-6 days

0

9

Honda 17270-ZT3-030

JOINT, AIR IN.

$19.99

$

Usually ships in 3-6 days

0

10

Honda 19610-ZT3-000

COVER, FAN

$55.99

$

Usually ships in 3-6 days

0

11

Honda 19630-ZT3-010

SHROUD ASSY., R.

$56.99

$

Usually ships in 3-6 days

0

12

Honda 19632-ZT3-010

SHROUD, R.

$56.99

$

Usually ships in 3-6 days

0

13

Honda 19640-ZT3-010

SEE PART DETAILS - PRI; SHROUD ASSY., L.

$56.99

$

Usually ships in 3-6 days

0

14

Honda 19641-ZT3-010

SHROUD, L.

$66.99

$

Usually ships in 3-6 days

0

15

Honda 19643-ZT3-000

SEAL A, SHROUD

$2.49

$

Usually ships in 3-6 days

0

16

Honda 19644-ZT3-000

SEAL B, SHROUD

$3.99

$

Usually ships in 3-6 days

0

17

Honda 63713-ZT3-000

RUBBER, OIL CHECK

$7.99

$

Usually ships in 3-6 days

0

18

Honda 68337-ZT3-000

COLLAR D, INSULATOR

$2.99

$

Usually ships in 3-6 days

0

19

Honda 68338-ZT3-000

INSULATOR, SHROUD

$3.49

$

Usually ships in 3-6 days

0

20

Honda 68339-ZT3-000

COLLAR B, INSULATOR

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90019-883-000

BOLT, FLANGE (5X10) (Honda Code 0636878).

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90101-ZT3-000

BOLT A, STUD

$5.99

$

Usually ships in 3-6 days

0

23

Honda 90102-ZT3-010

SEE PART DETAILS - PRI; BOLT, STUD (5X91)

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90103-ZT3-000

BOLT B, STUD

$5.99

$

Usually ships in 3-6 days

0

25

Honda 90129-463-770

COLLAR, REFLECTOR SETTING

$4.49

$

Usually ships in 3-6 days

0

26

Honda 90551-033-000

WASHER, SPROCKET SETTING

$2.49

$

In Stock, Qty 5

0

27

Honda 90851-ZC3-000

CLIP (28MM)

$3.99

$

In Stock, only 1 left!

0

28

Honda 91551-ZT3-000

COLLAR, AIR CLEANER HOUSING

$1.99

$

Usually ships in 3-6 days

0

29

Honda 91554-ZT3-000

COLLAR, DISTANCE

$3.99

$

Usually ships in 3-6 days

0

30

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 8

0

31

Honda 94050-05080

NUT, FLANGE (5MM) (Honda Code 0612671).

$0.99

$

In Stock, Qty 10

0

32

Honda 94101-05000

SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) (Honda Code 0059055).

$1.49

$

In Stock, only 3 left!

0
