EU1000i A2/A (EZGA) - Honda Generator, Made in Japan (SN: EZGA-1080505 - EZGA-1119999) IGNITION COIL + GENERATOR (EU1000I/K1) Parts Diagram

Generator, Made in Japan

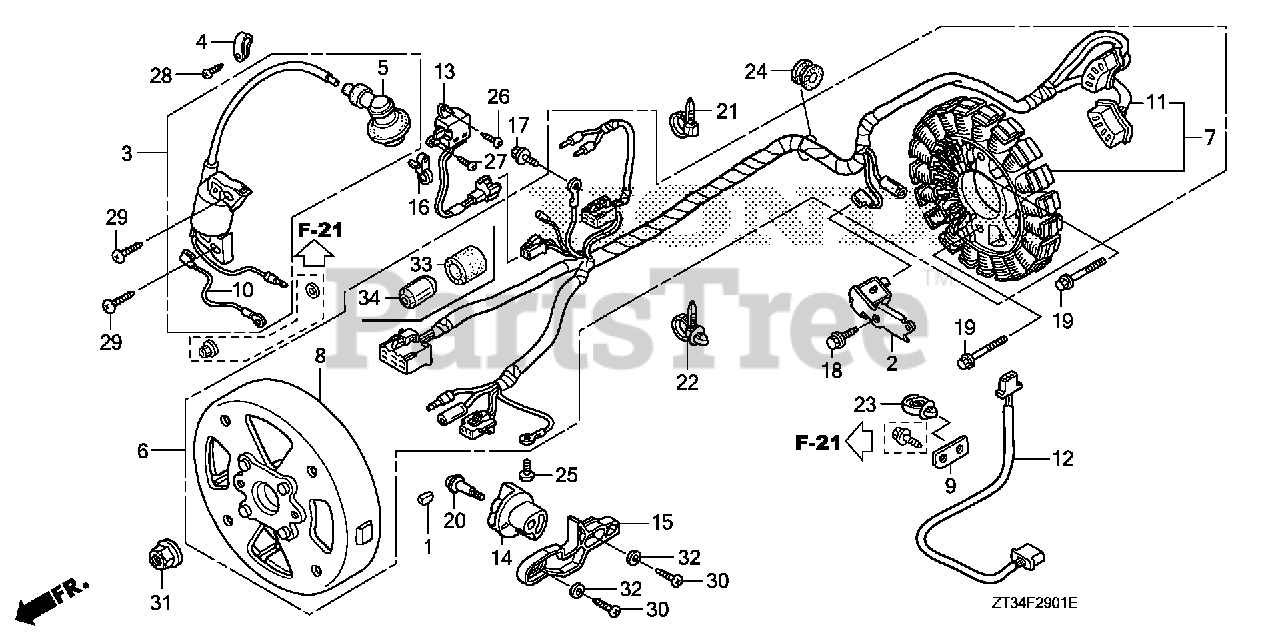

IGNITION COIL + GENERATOR (EU1000I/K1) Parts Diagram

  • Title

1

Honda 13331-ZM7-000

KEY, SPECIAL

$4.49

$

Usually ships in 3-6 days

0

2

Honda 30315-ZT3-003

COIL, PULSER

$43.99

$

Usually ships in 3-6 days

0

3

Honda 30500-ZT3-003

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZT3-023)

Note: Use up to Frame SN 1106067.

$63.99

$

Usually ships in 3-6 days

0

3

Honda 30500-ZT3-013

SEE PART DETAILS - PRI; COIL ASSY., IGNITION
(Superseded to 30500-ZT3-023)

$63.99

$

Usually ships in 3-6 days

0

4

Honda 30564-895-000

CLAMP A, CABLE

$4.99

$

Usually ships in 3-6 days

0

5

Honda 30700-ZT3-C01

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR
(Superseded to 30700-ZT3-C02)

Note: Use up to Frame SN 1106067.

$17.99

$

Usually ships in 3-6 days

0

5

Honda 30700-ZT3-C02

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$17.99

$

Usually ships in 3-6 days

0

6

Honda 31000-ZT3-C31

GENERATOR ASSY.

$

$

Not available

7

Honda 31120-ZT3-C31

STATOR ASSY.

$

$

Not available

8

Honda 31130-ZT3-C01

ROTOR

$165.99

$

Usually ships in 3-6 days

0

9

Honda 32103-759-000

BRACKET, WIRE HARNESS CLIP

$3.99

$

Usually ships in 3-6 days

0

10

Honda 32157-ZT3-000

WIRE, IGNITION GROUND

$9.99

$

Usually ships in 3-6 days

0

11

Honda 32158-ZT3-C31

WIRE HARNESS ASSY., GENERATOR

$252.99

$

Usually ships in 3-6 days

0

12

Honda 32196-ZT3-C00

SUB-WIRE ASSY.

$41.99

$

Usually ships in 3-6 days

0

13

Honda 35120-ZT3-003

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP
(Superseded to 35120-ZT3-023)

$18.99

$

In Stock, only 1 left!

0

13

Honda 35120-ZT3-013

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP
(Superseded to 35120-ZT3-023)

$18.99

$

In Stock, only 1 left!

0

14

Honda 35123-ZT3-000

KNOB, ENGINE SWITCH

$10.99

$

In Stock, only 1 left!

0

15

Honda 35127-ZT3-000

PLATE, ENGINE SWITCH

$7.49

$

Usually ships in 3-6 days

0

16

Honda 36135-ZA8-801

BAND, HARNESS

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90002-MC7-000

BOLT, FLANGE (5X8)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90003-892-000

BOLT, FLANGE (5X12)

$1.99

$

In Stock, only 1 left!

0

19

Honda 90014-KCZ-000

BOLT, FLANGE (5X25) (CT200)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90105-ZT3-000

SCREW, PAN (4X19)

$2.49

$

In Stock, only 1 left!

0

21

Honda 90650-KV6-003

BAND, WIRE (95MM)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90672-SA0-003

STRAP, CABLE (118MM) (BLACK)

$9.99

$

In Stock, only 1 left!

0

23

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 91651-ZT3-C00

GROMMET, GENERATOR CORD

$4.49

$

Usually ships in 3-6 days

0

25

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 93901-12220

SCREW, TAPPING (3X10)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 93901-12420

SCREW, TAPPING (3X16)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93903-25220

SCREW, TAPPING (5X12)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 93903-26320

SCREW, TAPPING (6X20)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 93913-25520

SCREW, TAPPING (5X20) (PO)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

32

Honda 94103-05800

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0
