ETZ 20420 (2691048-02) - Simplicity 42" Zero-Turn Mower, 20hp Parking Brake Group Parts Diagram

42" Zero-Turn Mower, 20hp

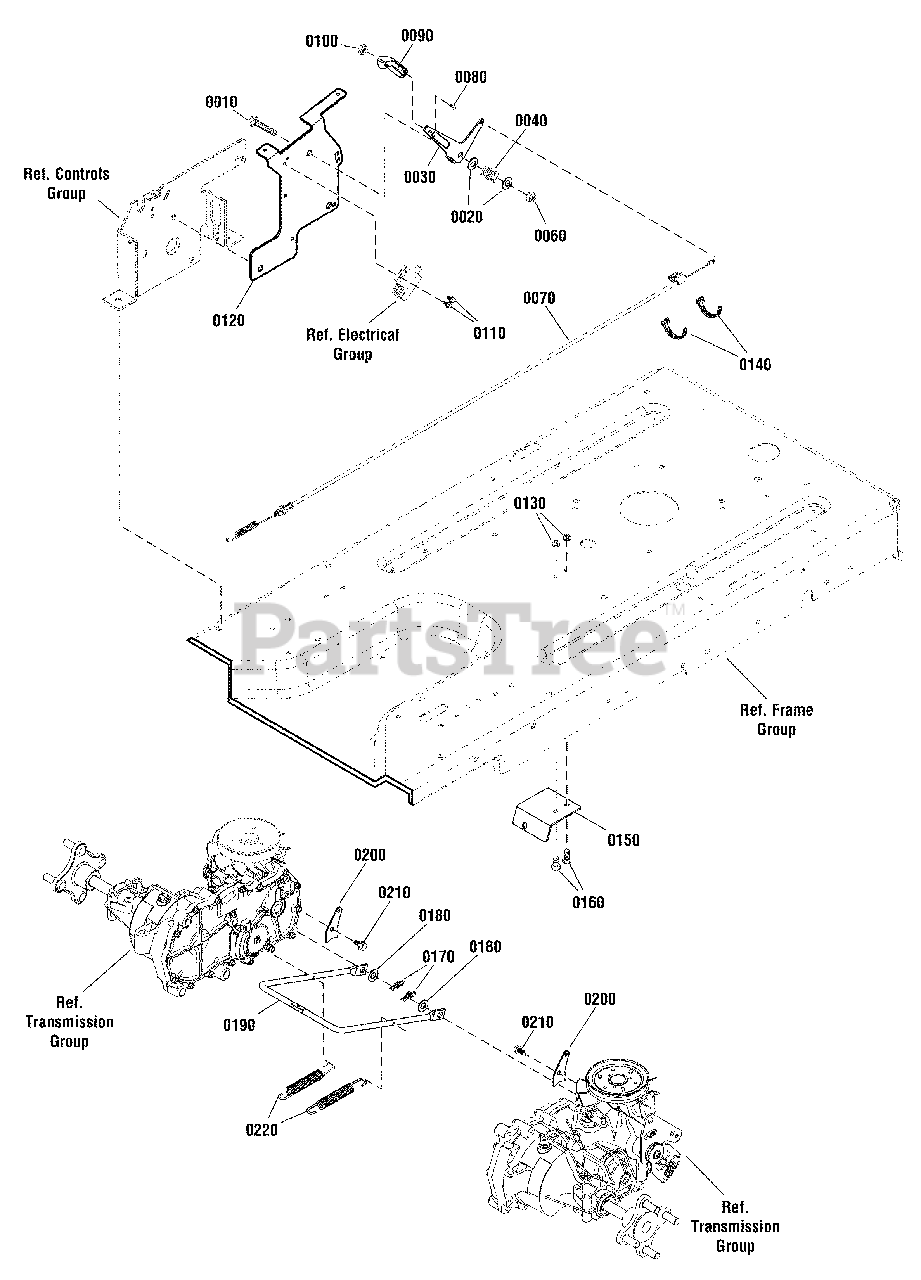

Parking Brake Group Parts Diagram

  • Title

0010

Simplicity 703872

SCREW, 3/8-16 x 2-1/4" Hex Head Cap, GR 5, YZ

$4.99

$

In Stock, Qty 20+

0

0020

Simplicity 7090517SM

WASHER, 7/16" Flat, YZ

$4.49

$

In Stock, Qty 8

0

0030

Simplicity 7301074YP

LEVER, Park Brake

$10.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7028036YP

SPRING, Friction Pack

$6.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0070

Simplicity 7103792YP

CABLE, Park Brake, RZT

$33.99

$

In Stock, only 2 left!

0

0080

Simplicity 7091017YP

SCREW, #8-32 x 3/8" Cross Recess Filister Head, GR 2, BZ

$3.99

$

In Stock, only 4 left!

0

0090

Simplicity 7023655YP

LEVER, Throttle Control

$

$

Not available

0100

Simplicity 703460

NUT, #8-32 Hex, GR 2B, YZ

$3.99

$

In Stock, Qty 9

0

0110

Simplicity 704060

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

$3.49

$

In Stock, Qty 11

0

0120

Simplicity 7301075BMYP

BRACKET, Lever, Park Brake

$22.99

$

Usually ships in 2-12 days

0

0130

Simplicity 703233

NUT, 1/4-20 Hex Flange Lock, Black

$4.49

$

In Stock, Qty 10

0

0140

Simplicity 703586

* CABLE TIE, 7.0

$4.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7301086BMYP

BRACKET, Cable, Park Brake

$7.49

$

Usually ships in 2-12 days

0

0160

Simplicity 703925

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5 YZ

$4.49

$

In Stock, Qty 7

0

0170

Simplicity 7091594SM

COTTER PIN, 1/2 Self, YZ

$2.99

$

In Stock, only 3 left!

0

0180

Simplicity 703590

WASHER, 3/8" Flat (SAE) YZ

$3.99

$

In Stock, Qty 12

0

0190

Simplicity 7103436YP

ROD, Park Brake, RZT

$48.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7301092AYP

TAB, Spring, Park Brake

$6.49

$

Usually ships in 2-12 days

0

0210

Simplicity 704130

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap, Black

$3.99

$

In Stock, Qty 11

0

0220

Simplicity 703144

SPRING, Extension, 0.562 OD x 4.250 LG .049 Wire, Black

$5.99

$

In Stock, Qty 5

0
