ETZ 20420 (2691048-02) - Simplicity 42" Zero-Turn Mower, 20hp Frame Group Parts Diagram

42" Zero-Turn Mower, 20hp

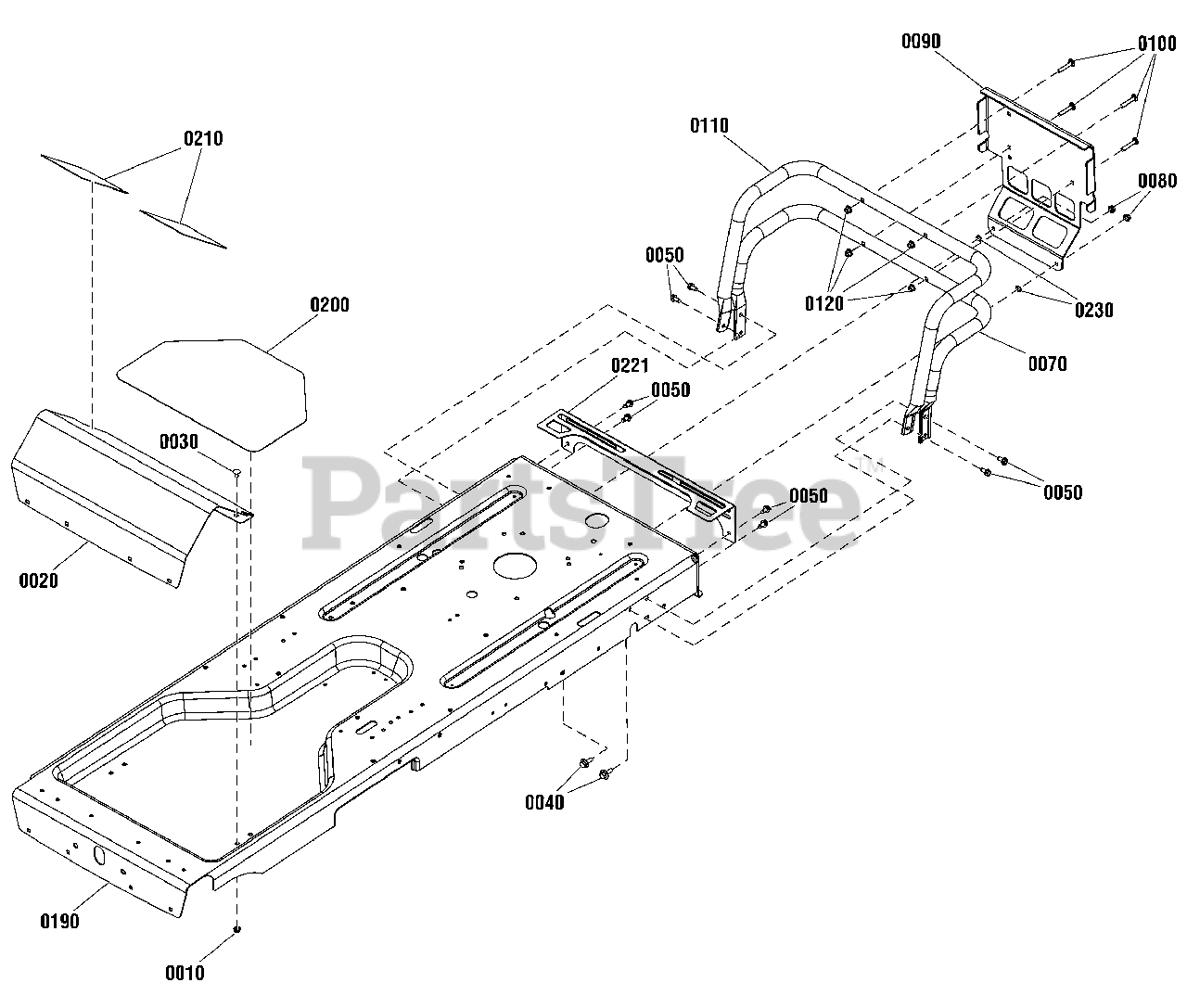

Frame Group Parts Diagram

  • Title

0010

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0020

Simplicity 7300140CYP

FOOTREST , Orange

$85.99

$

Usually ships in 2-12 days

0

0030

Simplicity 704065

BOLT, 5/16-18 X 0.875, Carriage Short Neck, ZC/CL

$4.49

$

In Stock, Qty 5

0

0040

Simplicity 1716654SM

BOLT, 5/16-18 X .75, .50 Shoulder G5 YEL

$5.49

$

In Stock, only 1 left!

0

0050

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 1753517BMYP

BUMPER, Lower Tube

$92.99

$

In Stock, only 1 left!

0

0080

Simplicity 703330

NUT, 5/16-18, Hex Flange Whiz-Lock

$4.99

$

In Stock, Qty 14

0

0090

Simplicity 1753572CYP

PLATE, Brand - Simplicity Orange

Note: (52" Models Only)

$96.99

$

Usually ships in 2-12 days

0

0100

Simplicity 703175

BOLT, 5/16-18 x 1-3/4 Round Head Short Square Neck, GR 5, Zinc/Clear

Note: (52" Models Only)

$3.99

$

In Stock, only 2 left!

0

0110

Simplicity 7301123BMYP

TUBE, Bumper, Upper

Note: (52" Models Only)

$142.99

$

Usually ships in 2-12 days

0

0120

Simplicity 703115

NUT, Nylock Flange, 5/16-18, GR F

Note: (52" Models Only)

$3.49

$

In Stock, Qty 20+

0

0190

FRAME

Note: (Not a serviceable part)

$

$

Not available

0200

Simplicity 7103830YP

MAT, Floor Pan

$33.99

$

Usually ships in 2-12 days

0

0210

Simplicity 7104571YP

PAD, Foot, Wide

$17.99

$

In Stock, Qty 5

0

0221

Simplicity 1757996BMYP

SHIELD, Heat

Note: (Used on serial Nos. after 201676697)

$92.99

$

Usually ships in 2-12 days

0

0230

Simplicity 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0
