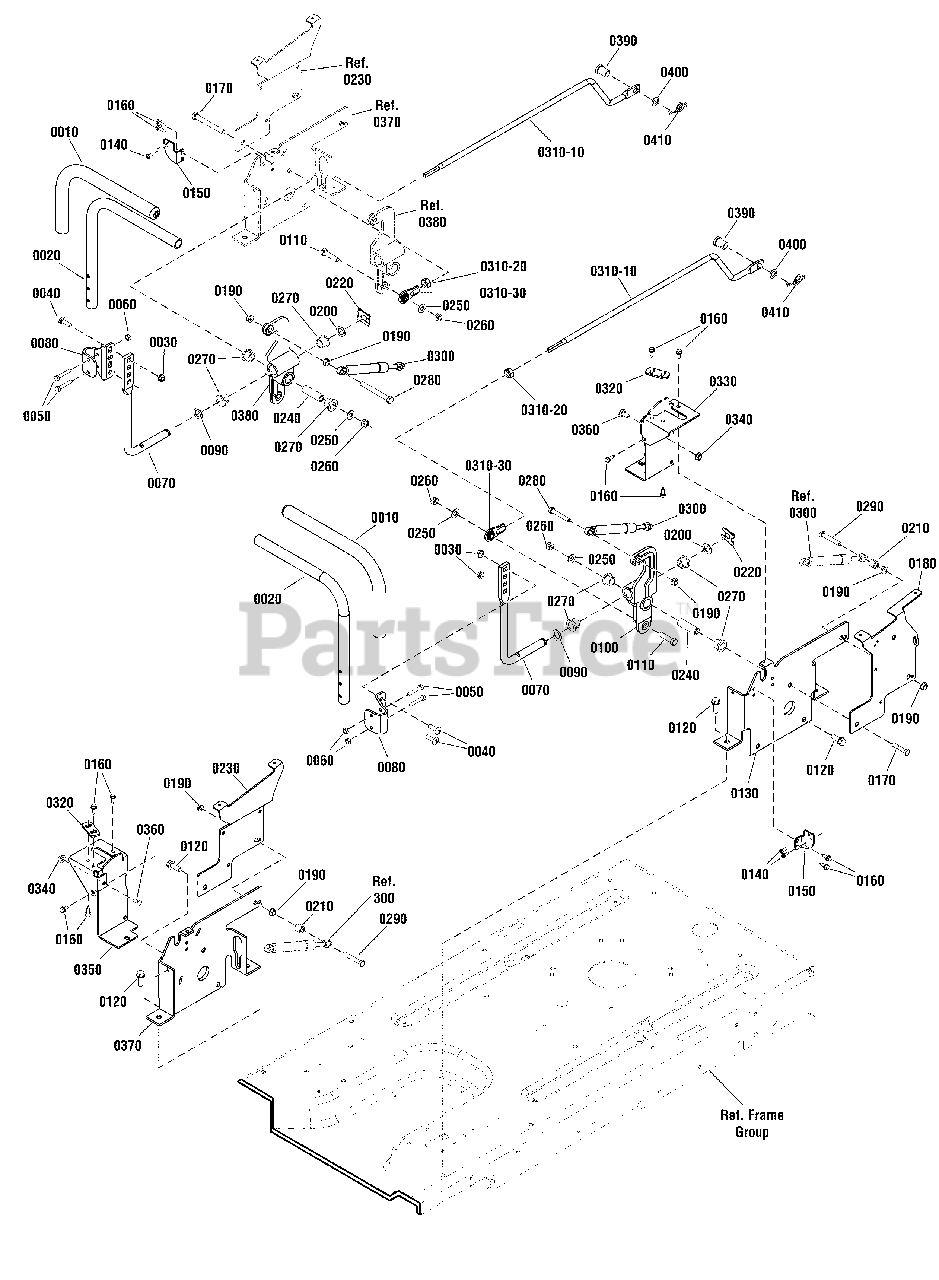

ETZ 20420 (2691048-01) - Simplicity 42" Zero-Turn Mower, 20hp Controls Group Parts Diagram

42" Zero-Turn Mower, 20hp

Controls Group Parts Diagram

  • Title
0010

Simplicity 7100051YP

GRIP, Handle

$10.99

$

Usually ships in 2-12 days

0

0020

Simplicity 7301168BMYP

HANDLE, Adjustable

$45.99

$

In Stock, only 1 left!

0

0030

Simplicity 704061

NUT, Hex Flange, Two Way Lock, 5/16-18

$3.99

$

In Stock, Qty 16

0

0040

Simplicity 703483

BOLT, Carriage, Short Neck, 5/16-18 x 1, G5

$3.99

$

In Stock, only 1 left!

0

0050

Simplicity 703234

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5

$4.49

$

In Stock, only 4 left!

0

0060

Simplicity 703954

NUT, Hex Center Lock, 1/4-20, G5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0070

Simplicity 7104677YP

ROD, Handle, Adjustable

$40.99

$

In Stock, only 1 left!

0

0080

Simplicity 7074628BMYP

BRACKET, Handle Adjustment

$

$

Not available

0090

Simplicity 7091628SM

WASHER, Flat, 5/8 ID x 1 OD

$4.49

$

In Stock, only 3 left!

0

0100

Simplicity 1755952YP

ARM, Control, LH

$27.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703406

CAPSCREW, Hex Head, 3/8-16 x 1-1/2, G5

$4.99

$

In Stock, only 1 left!

0

0120

Simplicity 704000

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1

$4.99

$

Usually ships in 2-12 days

0

0130

Simplicity 7043302BMYP

BRACKET, Control, LH

$33.99

$

Usually ships in 2-12 days

0

0140

Simplicity 704060

CAPSCREW, Hex Head Flange Taptite, Torx, #10C x 1/2

$3.49

$

In Stock, Qty 11

0

0150

Simplicity 7300032BMYP

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703466

SCREW, 1/4-20 x 3/4 Hex Washer Self-Tap, Black

$3.99

$

In Stock, Qty 11

0

0170

Simplicity 703874

CAPSCREW, Hex Head, 3/8-16 x 3-1/4, G5

$4.49

$

In Stock, Qty 11

0

0180

Simplicity 7301075BMYP

BRACKET, Lever, Parking Brake

$22.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0200

Simplicity 7900016SM

WASHER, Nylon 5/16

$3.49

$

Usually ships in 2-12 days

0

0210

Simplicity 7023206YP

SPACER, 3/8 ID x 5/8 OD x 1/2 Long

$8.49

$

Usually ships in 2-12 days

0

0220

Simplicity 7104704YP

CLIP, Spring, 5/8 OD Shaft

$5.49

$

Usually ships in 2-12 days

0

0230

Simplicity 7301072BMYP

BRACKET, Fender Support, RH

$23.99

$

Usually ships in 2-12 days

0

0240

Simplicity 7100714YP

SPACER, Sleeve

$16.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703590

WASHER, .406, Flat, Zinc/Clear

$3.99

$

In Stock, Qty 10

0

0260

Simplicity 703347

NUT, Hex Center Lock, 3/8-16, G5

$4.99

$

In Stock, only 2 left!

0

0270

$5.99

$

In Stock, Qty 5

0

0280

Simplicity 703906

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G5

$4.99

$

In Stock, only 4 left!

0

0290

Simplicity 703867

CAPSCREW, Hex Head, 5/16-18 x 2, G5

$4.99

$

In Stock, only 4 left!

0

0300

Simplicity 5103511YP

DAMPENER, Control

$62.99

$

In Stock, Qty 16

0

0310-10

Simplicity 7104168YP

ROD, Link Fwd/Rev

$30.99

$

Usually ships in 2-12 days

0

0310-20

Simplicity 703895

NUT, Hex, 3/8-24, G5

$4.49

$

In Stock, only 1 left!

0

0310-30

$10.99

$

In Stock, only 2 left!

0

0320

Simplicity 7300009BMYP

PLATE, Forward / Reverse Adjust

$8.49

$

Usually ships in 2-12 days

0

0330

Simplicity 7301128BMYP

BRACKET, Guide, Stick, Control, LH

$27.99

$

Usually ships in 2-12 days

0

0340

Simplicity 703233

NUT, Hex Flange, Whiz Lock, 1/4-20

$4.49

$

In Stock, Qty 6

0

0350

Simplicity 7301129BMYP

BRACKET, Guide, Stick, Control, RH

$54.99

$

Usually ships in 2-12 days

0

0360

Simplicity 7091573YP

BOLT, Carriage, Short Neck, 1/4-20 x 5/8, G5

$4.49

$

In Stock, only 1 left!

0

0370

Simplicity 7043330BMYP

BRACKET, Control, RH

$33.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1755953YP

ARM, Control, RH

$27.99

$

Usually ships in 2-12 days

0

0390

Simplicity 7900000SM

PIN, Clevis

$6.99

$

Usually ships in 2-12 days

0

0400

Simplicity 703964

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

0410

Simplicity 7091594SM

PIN, Cotter, Self Locking, 1/2

$2.99

$

In Stock, only 2 left!

0
