ETZ 20420 (2691048-01) - Simplicity 42" Zero-Turn Mower, 20hp 42" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

42" Zero-Turn Mower, 20hp

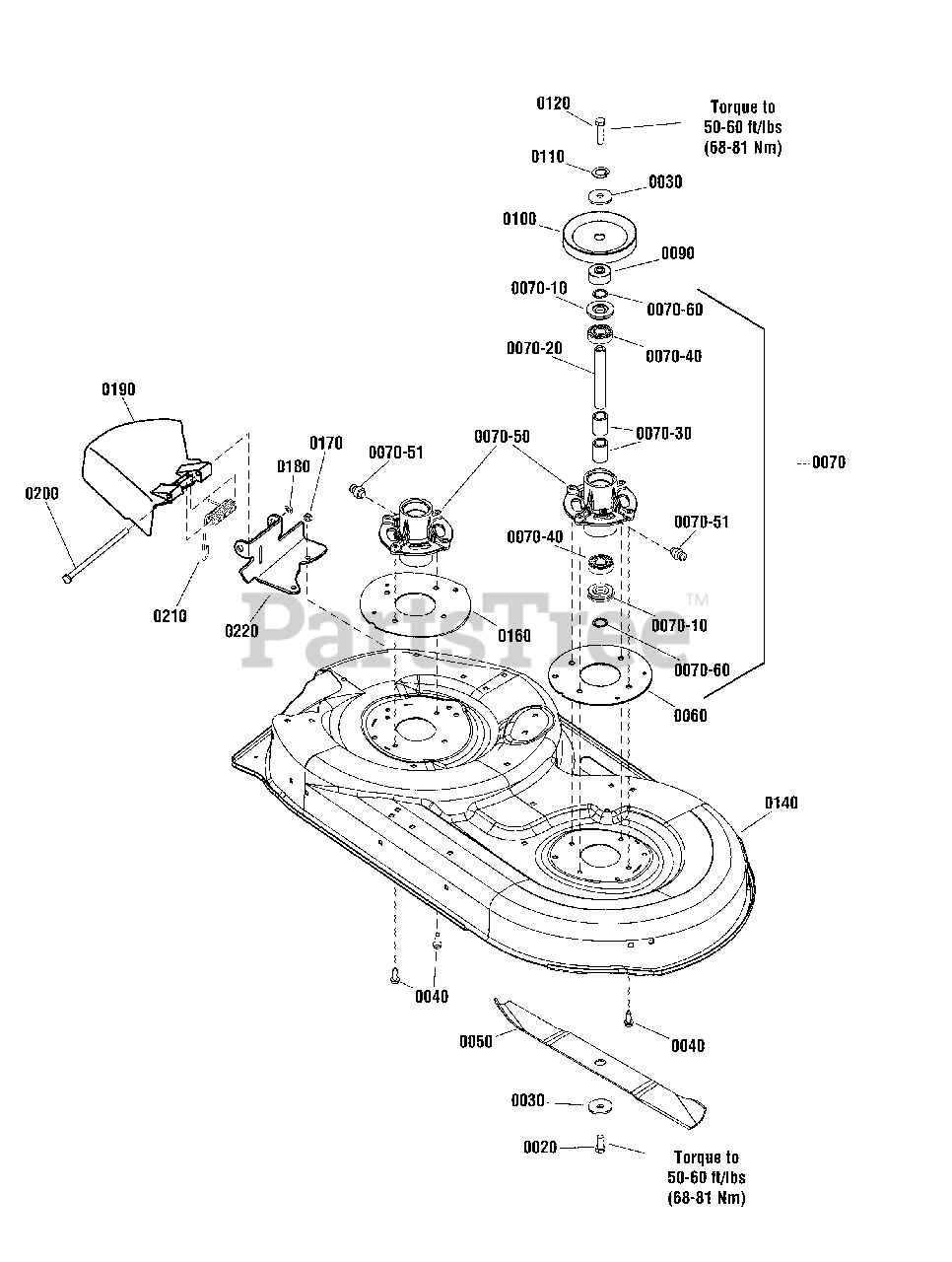

42" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

  • Title

0020

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 x 1, G5

$5.49

$

In Stock, Qty 12

0

0030

Simplicity 1656916SM

WASHER, Spring, 0.475ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 703167

SCREW, Hex Washer Head, Self Tap, 5/16-18 x 1-1/4

$3.99

$

In Stock, only 3 left!

0

0050

Simplicity 1752100AYP

BLADE, 42"

$29.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1750458BZ

PLATE, Spindle, LH
(Superseded to 1750458BMYP)

$28.99

$

In Stock, only 2 left!

0

0070

Simplicity 7600211YP

KIT, Aluminum Spindle Assembly
(Superseded to 84003175)

$100.99

$

In Stock, only 1 left!

0

0070-10

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 1 left!

0

0070-20

Simplicity 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, only 3 left!

0

0070-30

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, Qty 6

0

0070-40

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-50

Simplicity 1735573YP

HOUSING, Spindle, Cast Aluminum
(Superseded to 84003654)

$43.99

$

In Stock, Qty 7

0

0070-51

Simplicity 1704314

FITTING, Zerk
(Superseded to 1704314SM)

Note: (Included with Ref. No. 0070-50)

$4.99

$

In Stock, Qty 20+

0

0070-60

Simplicity 1960766YP

RING, Self Lock

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0100

Simplicity 1737835YP

PULLEY, V Deep Groove

$20.99

$

In Stock, only 1 left!

0

0110

Simplicity 704007

LOCKWASHER, Spring, 7/16

$4.49

$

In Stock, Qty 20+

0

0120

Simplicity 703171

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, G5

$3.99

$

In Stock, Qty 6

0

0140

Simplicity 1736504CYP

HOUSING, Mower, 42"
(Superseded to 1687780YP)

$555.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1750457BMYP

PLATE, Spindle, RH

$28.99

$

In Stock, only 1 left!

0

0170

Simplicity 1927557SM

NUT, Hex Flange, Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0180

Simplicity 703179

NUT, Push, 1/2

$3.49

$

In Stock, Qty 20+

0

0190

Simplicity 7104733YP

CHUTE, Discharge

$87.99

$

In Stock, Qty 19

0

0200

Simplicity 7104640YP

ROD, Pivot, Discharge Chute

$28.99

$

In Stock, only 1 left!

0

0210

Simplicity 7035813SM

SPRING, Torsion, Discharge Chute

$24.99

$

In Stock, only 1 left!

0

0220

Simplicity 7301176BMYP

BRACKET, Hinge

$

$

Not available
