ETZ 20420 (2691048-00) - Simplicity 42" Zero-Turn Mower, 20hp Frame Group Parts Diagram

42" Zero-Turn Mower, 20hp

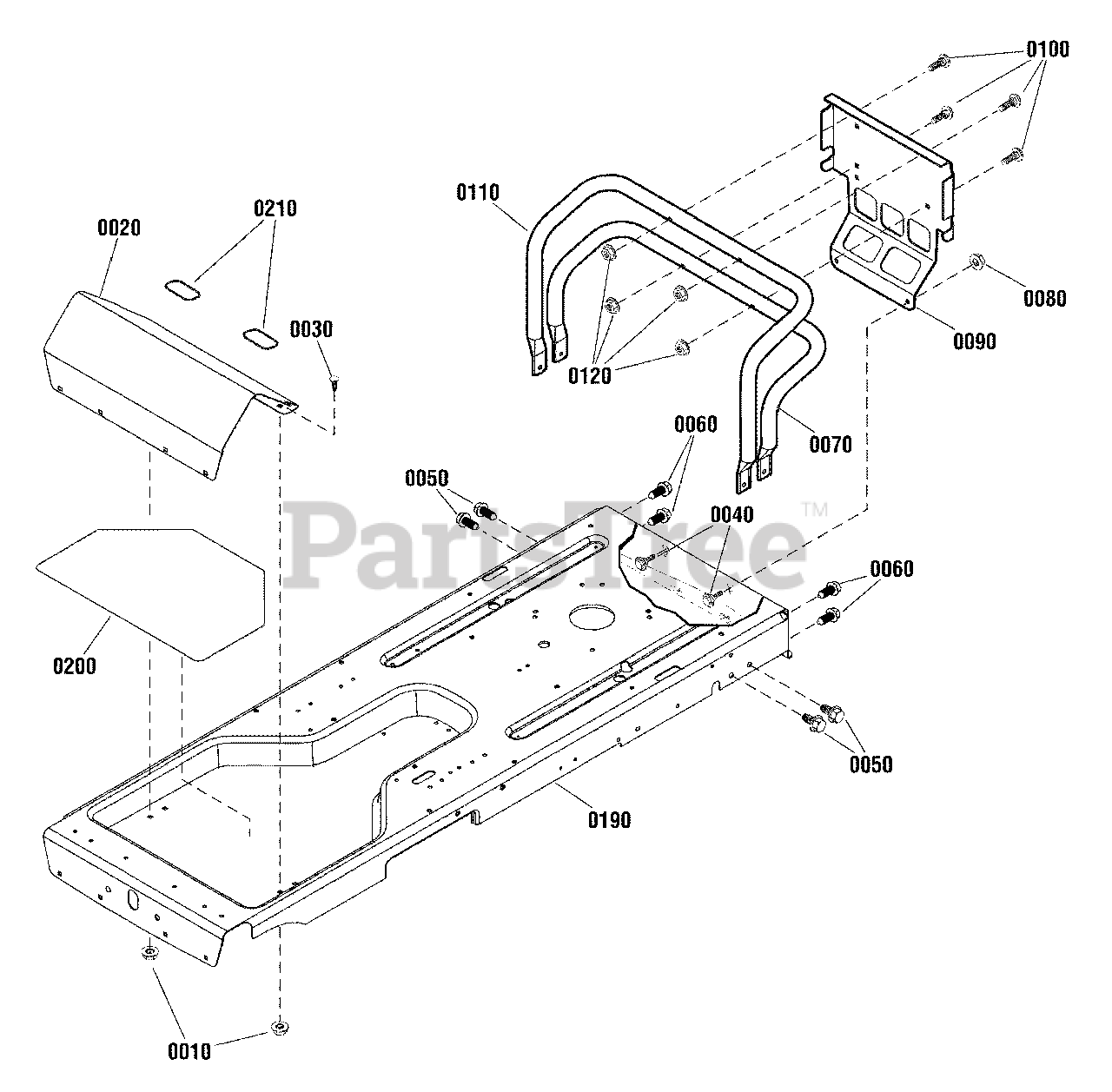

Frame Group Parts Diagram

  • Title

0010

Simplicity 7091601

NUT, Hex Flange Lock, 5/16-18, G5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0020

Simplicity 7300140C

FOOTREST
(Superseded to 7300140CYP)

$85.99

$

Usually ships in 2-12 days

0

0030

Simplicity 7090799

BOLT, Carriage, Short Neck, 5/16-18 x 5/8, G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 1716654

BOLT, Shoulder, 5/16-18 x .89 (3/4 Thread Length)
(Superseded to 1716654SM)

$5.49

$

In Stock, only 1 left!

0

0050

Simplicity 1664847SM

SCREW, Hex Washer Head, Self Tap, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 1753517BM

TUBE, Bumper, Lower
(Superseded to 1753517BMYP)

$92.99

$

In Stock, only 1 left!

0

0080

Simplicity 1927557

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

0090

Simplicity 1753572C

PLATE, Brand
(Superseded to 1753572CYP)

$96.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1931338

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0110

Simplicity 7301123BM

TUBE, Bumper, Upper
(Superseded to 7301123BMYP)

$142.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0190

Simplicity 7301073C

FRAME
(Superseded to 7301073CYP)

$826.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7103830

MAT, Floor Pan
(Superseded to 7103830YP)

$33.99

$

Usually ships in 2-12 days

0

0210

Simplicity 7104571

PAD, Foot
(Superseded to 7104571YP)

$17.99

$

In Stock, Qty 5

0
