ETM 17 - Poulan Pro Trimmer, Electric ETM17 Electric Trimmer Parts Diagram

Trimmer, Electric

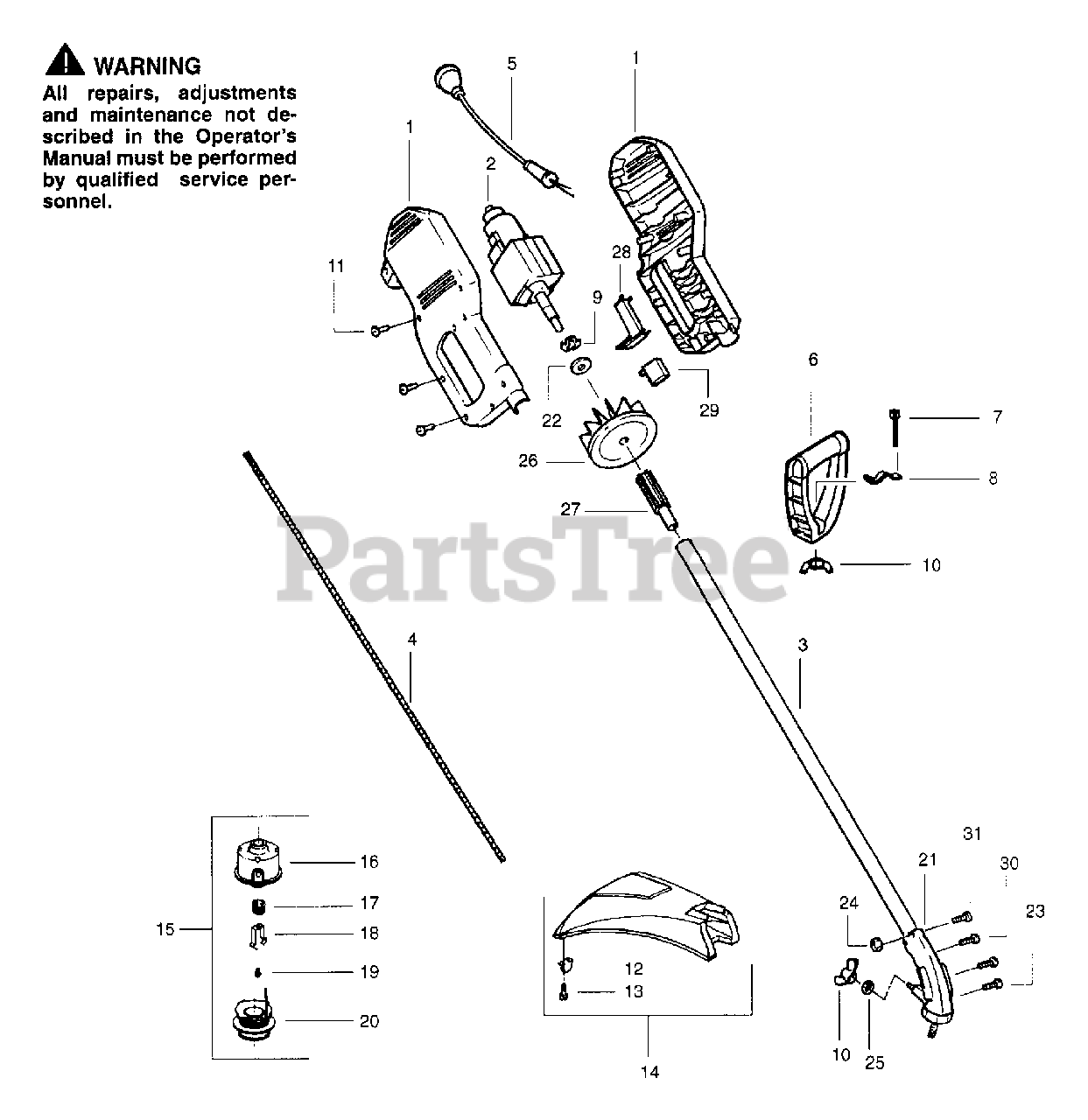

ETM17 Electric Trimmer Parts Diagram

  • Title
1

Poulan 530402797

Housing Set

$9.99

$

Usually ships in 3-10 days

0

$

$

Not available

3

Poulan 530403318

Tube Ass'y.

$

$

Not available

4

Poulan 530095391

Flex Shaft

$15.99

$

Usually ships in 3-10 days

0

5

Poulan 530402803

Wiring Harness Ass'y.

Note: (Incl. Switch)

$

$

Not available

6

Poulan 530038708

Assist Handle

$

$

Not available

$4.99

$

In Stock, only 1 left!

0

8

Poulan 530094742

Clamp - Assist Handle

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530403111

Clip Retainer

$

$

Not available

10

Poulan 530401992

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

11

$3.99

$

In Stock, Qty 9

0

12

Poulan 530095387

Line Limiter

$1.99

$

Usually ships in 3-10 days

0

13

Poulan 530015880

Screw - Line Limiter

$4.99

$

In Stock, Qty 8

0

14

Poulan 530069752

Shield Kit Ass'y.

Note: (Incl.12 & 13)

$

$

Not available

15

Poulan 952701666

Cutting Head Ass'y.
(Superseded to 590267601)

Note: (Incl. 16 - 20)

$32.99

$

In Stock, only 2 left!

0

16

Poulan 530069690

Hub Ass'y.

$

$

Not available

17

$

$

Not available

18

Poulan 530401466

Retainer - Clip

$3.99

$

In Stock, Qty 9

0

19

Poulan 530401467

Screw w/ Washer - Head

$

$

Not available

20

Poulan 952711527

Spool w/Line

$

$

Not available

21

Poulan 530052308

Gear Box Ass'y.

$

$

Not available

22

Poulan 530403112

Washer - Drive Adaptor

$

$

Not available

23

$

$

Not available

24

$6.49

$

In Stock, only 2 left!

0

25

$2.49

$

Usually ships in 3-10 days

0

$

$

Not available

27

Poulan 530402801

Drive Adaptor Ass'y.

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530402799

Trigger Switch

$

$

Not available

29

$

$

Not available

30

$4.99

$

In Stock, Qty 5

0

31

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

Poulan 530084676

Operator Manual

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530403323

Shaft Warning Decal

Note: Not Shown

$

$

Not available
