ET2100 (9478-0) - Generac 2,100 Watt Portable Generator Generator Parts Diagram

2,100 Watt Portable Generator

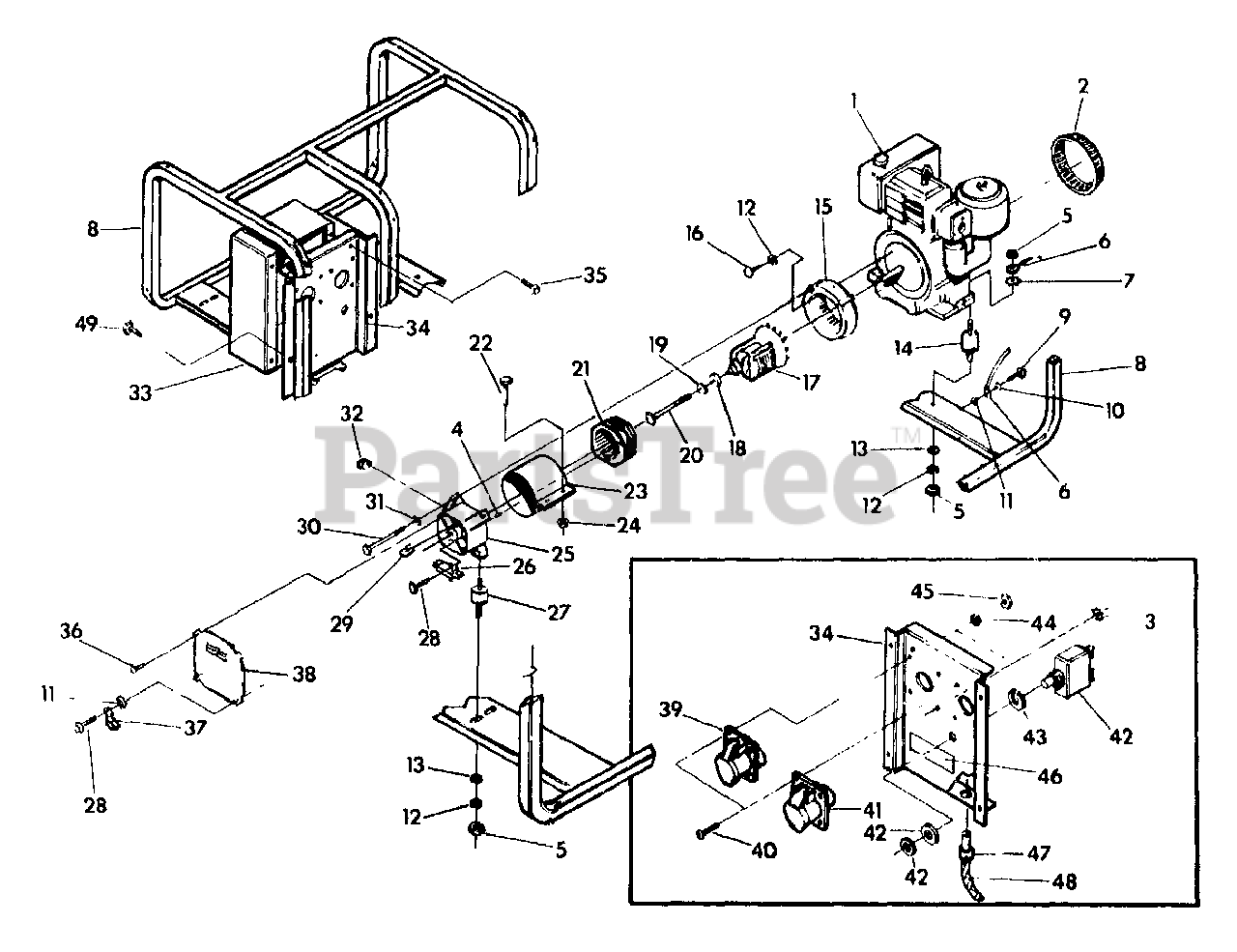

Generator Parts Diagram

  • Title

1

Briggs & Stratton 80279

5 H.P. Briggs & Stratton Engine

$

$

Currently unavailable

2

Briggs & Stratton 82341

Recoil Starter Guard

$

$

Not available

3

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

4

UNKNOWN

$

$

Not available

5

Briggs & Stratton 45771

M8-1.25 Hex Nut

$

$

Not available

6

Briggs & Stratton 10953621

Ground Wire

$

$

Currently unavailable

7

Briggs & Stratton 27482

5/16" Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 83990

Cradle

$

$

Currently unavailable

9

Briggs & Stratton 24911

No. 8-3/8" long Taptite Screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

14

Briggs & Stratton 66443B

Vibration Mount
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66365F

Engine Adaptor Housing
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22336

5/16" -24 x 3/4" Hex Capscrew

$

$

Not available

17

Briggs & Stratton 80023G

Rotor Assembly

$

$

Not available

18

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 67451

Flat Washer (special)

$

$

Currently unavailable

20

Briggs & Stratton 36180

5/16"-24 x 6-3/8" Rotor Bolt
(Superseded to 36180GS)

$11.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84292

Stator Assembly

$

$

Currently unavailable

22

Briggs & Stratton 52618

M5-0.8 x 12mm Hex Capscrew
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 81887F

Stator Wrapper

$

$

Currently unavailable

24

Briggs & Stratton 52856

M5-0.8 Locking Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825

Rear Bearing Carrier

$

$

Currently unavailable

26

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 66443A

Vibration Mount

$

$

Currently unavailable

28

Briggs & Stratton 66849

M5-0.8 x 15mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 66850

Bridge Rectifier Assembly
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 66449B

M6-1.0 x 90mm Stator Bolt

$

$

Currently unavailable

31

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 84277

Back Panel Cover

$

$

Currently unavailable

34

Briggs & Stratton 84276

Control Panel

$

$

Currently unavailable

35

Briggs & Stratton 63036

No. 8-1/4" Tapping Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 74908

M5-0.8 x 10mm Taptite Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

38

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

39

Briggs & Stratton 83706

230 volts, 16 amp Receptacle
(Superseded to 83706GS)

$35.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 76040

M5-0.8 x 16mm Pan Head Screw
(Superseded to 76040GS)

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 83707

130 volts, 16 amp Receptacle

$

$

Currently unavailable

42

Briggs & Stratton 75207D

15 amp Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 82881

Lock Washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 51716

M5-0.8 Hex Nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 84302

Generac Decal

$

$

Currently unavailable

47

Briggs & Stratton 84313

Strain Relief

$

$

Currently unavailable

48

Briggs & Stratton 84409

20" long Sleeving

$

$

Currently unavailable

49

Briggs & Stratton 75494

No. 10-24 Self-drilling Screw

$

$

Not available
