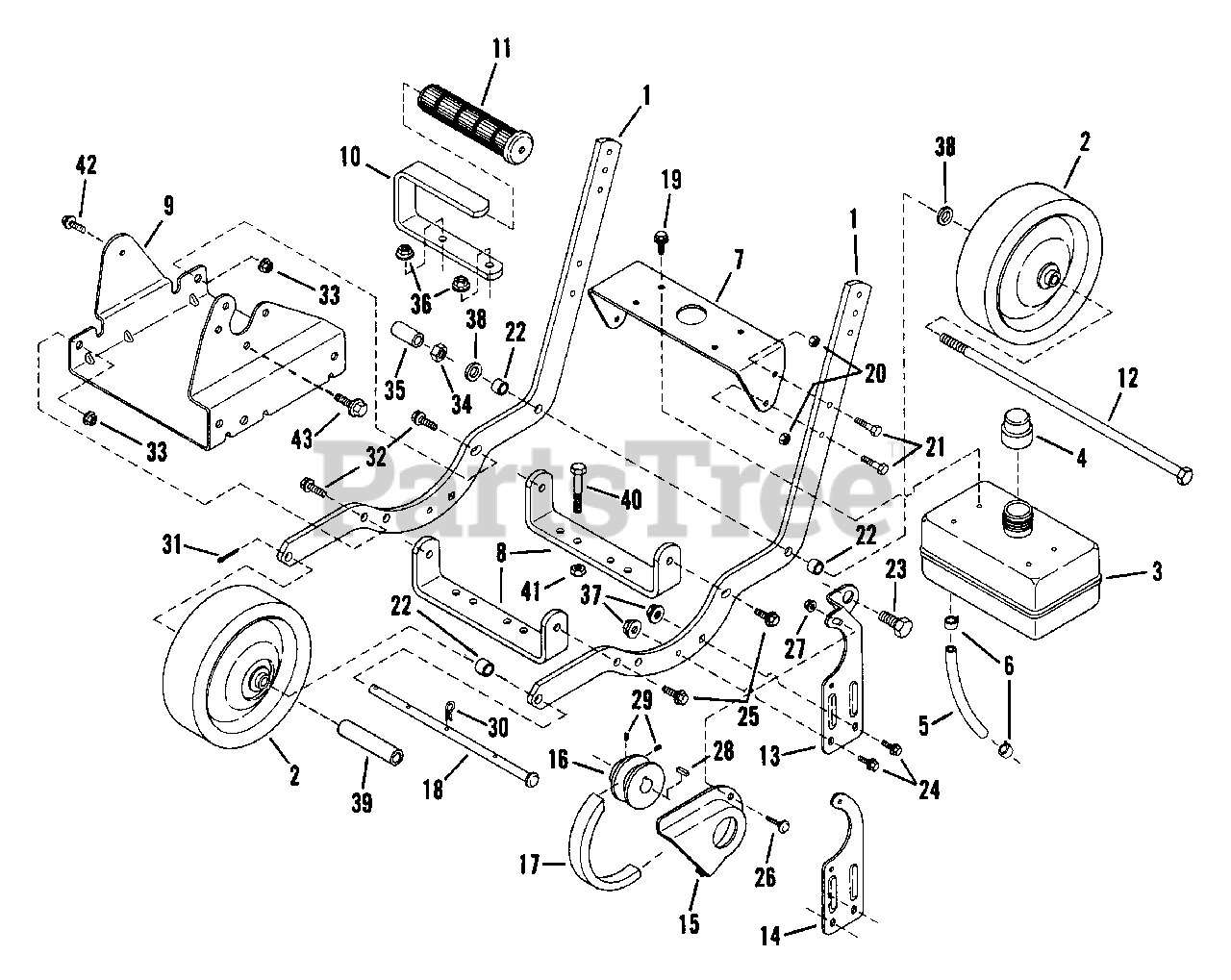

ET 201 B (80095) - Snapper Edger, 3hp Frame & Wheels Parts Diagram

Edger, 3hp

Frame & Wheels Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Snapper 7011082

WHEEL 8" x 1.75" (300 & 300l/C)
(Superseded to 7035727YP)

Note: Was 12346

$28.99

$

In Stock, Qty 20+

0

Snapper 7018189

WHEEL 7" x 1.50" (200 & 250-2)

$

$

Not available

3

Snapper 7019736

TANK, Fuel

$

$

Not available

4

Snapper 7014636

CAP, Fuel Tank
(Superseded to 7014636YP)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper 7032365

LINE, Fuel
(Superseded to 7032365YP)

$4.49

$

In Stock, only 1 left!

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 36231

BRACKET, Fuel Tank

$

$

Currently unavailable

8

Snapper 7036219

SUPPORT, Engine

$

$

Currently unavailable

9

Snapper 7035121

MOUNT, Engine

$

$

Currently unavailable

10

Snapper 7032635

HANDLE (300 I/C Only)
(Superseded to 7032635YP)

$22.99

$

Usually ships in 2-12 days

0

11

Snapper 7012031

GRIP (300 I/C Only)
(Superseded to 7012031YP)

$

$

Not available

12

Snapper 7018951

AXLE, Rear

$

$

Not available

13

Snapper 7038343

BRACKET, Guard

$

$

Currently unavailable

14

Snapper 38355

BRACKET, Guard

$

$

Currently unavailable

15

Snapper 7038331

GUARD, Belt
(Superseded to 7038331YP)

$13.99

$

Usually ships in 2-12 days

0

16

Snapper 7015869

PULLEY, Engine

$

$

Not available

17

Snapper 7023226

BELT, Drive
(Superseded to 7023226YP)

$21.99

$

Usually ships in 2-12 days

0

18

Snapper 7019015

AXLE, Front

$

$

Not available

19

Snapper 90855

SCREW, 1/4-15 x 3/4" Self-Tapping

$

$

Currently unavailable

20

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

21

Snapper 7090643

SCREW, 1/4-20 x 7/8" Hex Cap
(Superseded to 7090643YP)

$

$

Not available

22

Snapper 7015925

SPACER, Axle

$

$

Not available

23

Snapper 7091502

SCREW, 1/2-20 x 3/4" Hex Cap
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7090596

BOLT, 1/4-20 x 5/8" Hex Flange Lock

$

$

Not available

25

Snapper 7090815

SCREW, 3/8-16 x 3/4" Self-Tapping
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

26

Snapper 7090530

BOLT, #10-24 x 1/2" Carriage
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7090623

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7010061

KEY, 3/16x3/16x1"
(Superseded to 7010061SM)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 7090471

SCREW, 1/4-20 x 5/16 Socket Set
(Superseded to 7090471YP)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper 7091503

PIN, 3/32 x 1-1/2" Cotter Hair
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

32

Snapper 7090607

BOLT, 5/16-18 x 7/8" Hex Flange Lock

$

$

Currently unavailable

33

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7090377

NUT, 7/16-20 Hex Center Lock
(Superseded to 7090377SM)

Note: Was 90394

$5.49

$

In Stock, Qty 20+

0

35

Snapper 7015923

CAP, Axle

$

$

Currently unavailable

36

Snapper 7090672

NUT, 5/16-18 Hex Flange Lock
(Superseded to 7090672YP)

$2.99

$

Usually ships in 2-12 days

0

37

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock (300 I/C Only)
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

38

Snapper 7090500

WASHER, 7/16 Flat

$2.99

$

In Stock, Qty 7

0

39

Snapper 7012309

BUSHING, Axle
(Superseded to 7012309YP)

$5.99

$

In Stock, only 4 left!

0

40

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Cap
(Superseded to 703906)

Note: Was 90211

$4.99

$

In Stock, only 4 left!

0

41

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 18

0

42

Snapper 7090676

BOLT, 1/4-20 x 3/8 Hex Flange Lock

$

$

Not available

43

Snapper 7090606

BOLT, 5/16-18 x 5/8 Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0
