ET-1 - Lawn-Boy Edger (SN: 000000001 - 099999999) (1960) Model Lpt Tiller Attachment Parts List Parts Diagram

Edger

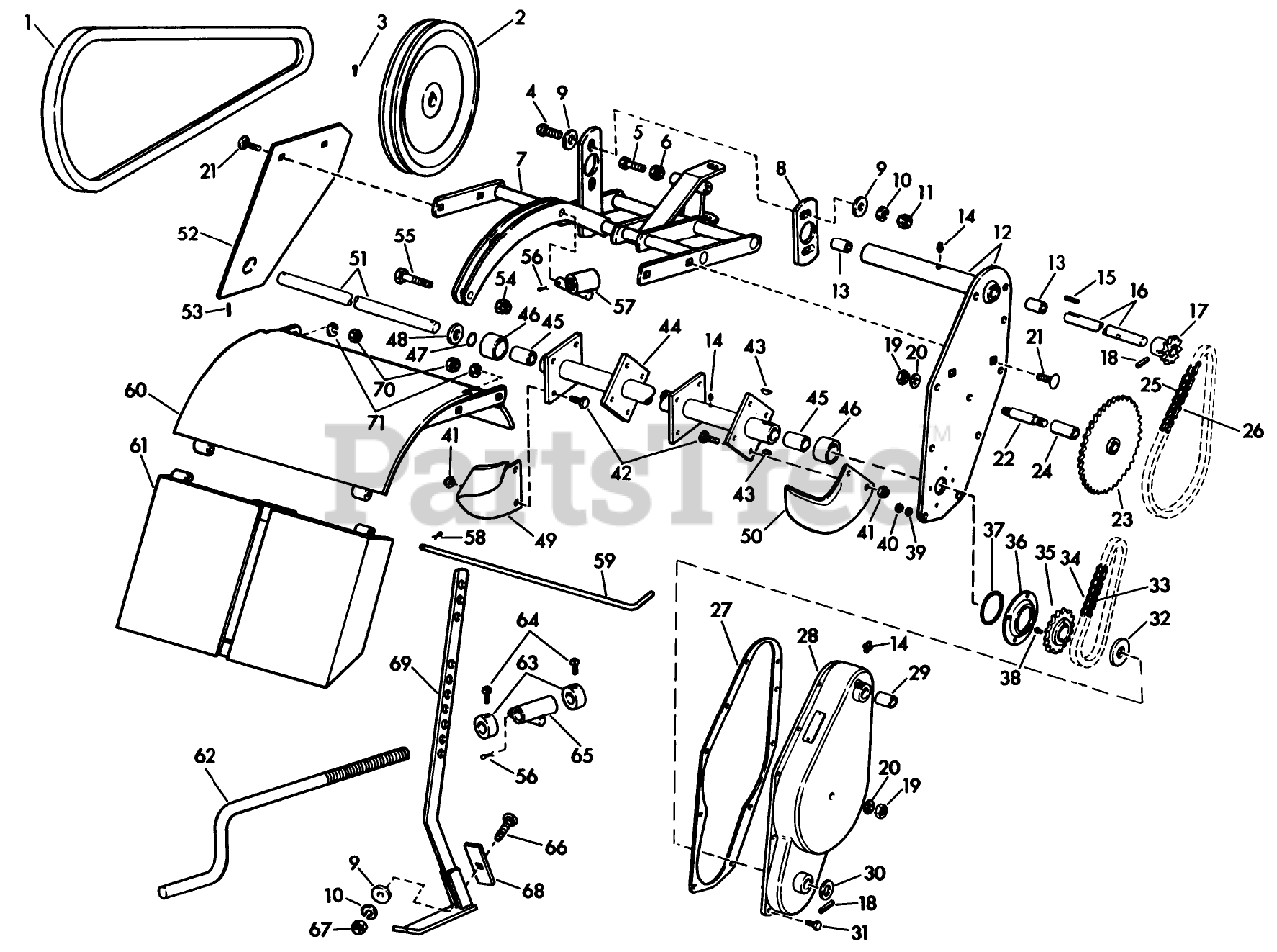

Model Lpt Tiller Attachment Parts List Parts Diagram

  • Title

1

Lawn-Boy 45090

V Belt 60" A Section

$

$

Currently unavailable

2

Lawn-Boy 32137

Pulley 10.4 OD A Section

$

$

Currently unavailable

3

Lawn-Boy 45219

Set Screw 5/16-18

$

$

Currently unavailable

4

Lawn-Boy 43426

Capscrew 5/16-18 x 7/8 Lg.

$

$

Currently unavailable

5

Lawn-Boy 45093

Capscrew 3/8-16 x 1 Lg.

$

$

Currently unavailable

6

Lawn-Boy 42921

BOOM SWITCH

$

$

Not available

7

Lawn-Boy 10766

Frame Assembly

$

$

Currently unavailable

8

Lawn-Boy 45425

Adjustable Guide

$

$

Currently unavailable

9

Lawn-Boy 42309

Washer 5/16

$

$

Currently unavailable

10

Lawn-Boy 42368

DISCONTINUED

$

$

Not available

11

Lawn-Boy 43540

Hex Nut 5/16-18

$

$

Currently unavailable

12

Lawn-Boy 21574

Back Plate Assembly

$

$

Currently unavailable

13

Lawn-Boy 44786

Bushing

$

$

Currently unavailable

14

Lawn-Boy 42643

Grease Fitting 1/4-28 St.

$

$

Currently unavailable

15

Lawn-Boy 42865

DISCONTINUED

$

$

Not available

16

Lawn-Boy 45427

Input Shaft

$

$

Currently unavailable

17

Lawn-Boy 45358

Input Sprocket Hub Assy.

$

$

Currently unavailable

18

Lawn-Boy 44211

Roll Pin 3/16 x 1-1/8

$

$

Currently unavailable

19

Lawn-Boy 44789

Jam Nut 1/2-20

$

$

Currently unavailable

20

Lawn-Boy 44788

Lockwasher, Shakeproof

$

$

Currently unavailable

21

Lawn-Boy 43236

Carriage Bolt 3/8-16 x 1 Lg.

$

$

Currently unavailable

22

Lawn-Boy 45058

Intermediate Shaft

$

$

Currently unavailable

23

Lawn-Boy 45059

Sprocket Cluster Assy

$

$

Currently unavailable

24

Lawn-Boy 45063

Bushing

$

$

Currently unavailable

25

Lawn-Boy 45092

Chain #41-1/2 Pitch, 55 Links

$

$

Currently unavailable

26

Lawn-Boy 44666

Connector Link

$

$

Currently unavailable

27

Lawn-Boy 21374

Side Plate Gasket

$

$

Currently unavailable

28

Lawn-Boy 45076

Cover Assembly

$

$

Currently unavailable

29

Lawn-Boy 44786

Bushing

$

$

Currently unavailable

30

Lawn-Boy 44732

Washer

$

$

Currently unavailable

31

Lawn-Boy 45077

Capscrew 1/4-20 x 5/8 Lg.

$

$

Currently unavailable

32

Lawn-Boy 45364

Thrust Washer

$

$

Currently unavailable

33

Lawn-Boy 45072

Chain #40-1/2 Pitch, 37 Links

$

$

Currently unavailable

34

Lawn-Boy 45073

Connector Link

$

$

Currently unavailable

35

Lawn-Boy 45360

Sprocket 18 Tooth

$

$

Currently unavailable

36

Lawn-Boy 44546

Oil Seal Retainer

$

$

Currently unavailable

37

Lawn-Boy 44547

Ring (Neoprene)

$

$

Currently unavailable

38

Lawn-Boy 42496

DISCONTINUED

$

$

Not available

39

Lawn-Boy 42566

Lockwasher, Shakeproof

$

$

Currently unavailable

40

Lawn-Boy 42380

Hex Nut 1/4-20

$

$

Currently unavailable

41

Lawn-Boy 45069

Marsden Nut 3/8-24

$

$

Currently unavailable

42

Lawn-Boy 45068

Tine Bolt

$

$

Currently unavailable

43

Lawn-Boy 45222

Woodruff Key

$

$

Currently unavailable

44

Lawn-Boy 32413

Rotor Tube Assy.

$

$

Currently unavailable

45

Lawn-Boy 45702

Bushing

$

$

Currently unavailable

46

Lawn-Boy 80736

Sleeve

$

$

Currently unavailable

47

Lawn-Boy 45071

O Ring

$

$

Currently unavailable

48

Lawn-Boy 44084

Thrust Washer

$

$

Currently unavailable

49

Lawn-Boy 32132

Tine LH

$

$

Currently unavailable

50

Lawn-Boy 32131

Tine RH

$

$

Currently unavailable

51

Lawn-Boy 32412

Rotor Shaft

$

$

Currently unavailable

52

Lawn-Boy 21548

Side Plate Assy.

$

$

Currently unavailable

53

Lawn-Boy 45703

Roll Pin

$

$

Currently unavailable

54

Lawn-Boy 45069

Marsden Nut 3/8-24

$

$

Currently unavailable

55

Lawn-Boy 42954

OPERATOR MANUAL

$3.23

$

Usually ships in 3-6 days

0

56

Lawn-Boy 42652

FUEL LINE HOSE

$

$

Not available

57

Lawn-Boy 45084

Adjusting Screw Nut

$

$

Currently unavailable

58

Lawn-Boy 42275

DISCONTINUED

$

$

Not available

59

Lawn-Boy 45432

Hinge Rod

$

$

Currently unavailable

60

Lawn-Boy 21404

Hood Assembly

$

$

Currently unavailable

61

Lawn-Boy 21408

Hood Board Assembly

$

$

Currently unavailable

62

Lawn-Boy 21111

Adjusting Screw

$

$

Currently unavailable

63

Lawn-Boy 42653

See Supercession: 42653-03
(Superseded to 42653-03)

$

$

Not available

64

Lawn-Boy 42687

Set Screw 5/16-18

$

$

Currently unavailable

65

Lawn-Boy 42661

AIR CLEANER TUBE ASM

$142.99

$

Usually ships in 3-6 days

0

66

Lawn-Boy 45083

Carriage Bolt 5/16-18 x 1-3/4 Lg.

$

$

Currently unavailable

67

Lawn-Boy 42923

DISCONTINUED

$

$

Not available

68

Lawn-Boy 45082

Adjustable Shovel

$

$

Currently unavailable

69

Lawn-Boy 32136

Depth Shoe Assembly

$

$

Currently unavailable

70

Lawn-Boy 42761

Hex Nut 3/8-16

$

$

Currently unavailable

71

Lawn-Boy 42735

Lockwasher

$

$

Currently unavailable

Lawn-Boy 603331

Decal

$

$

Currently unavailable
