ESZT 18336 BVE (85697) - Snapper 33" Zero-Turn Mower, 18hp WHEELS- REAR Parts Diagram

33" Zero-Turn Mower, 18hp

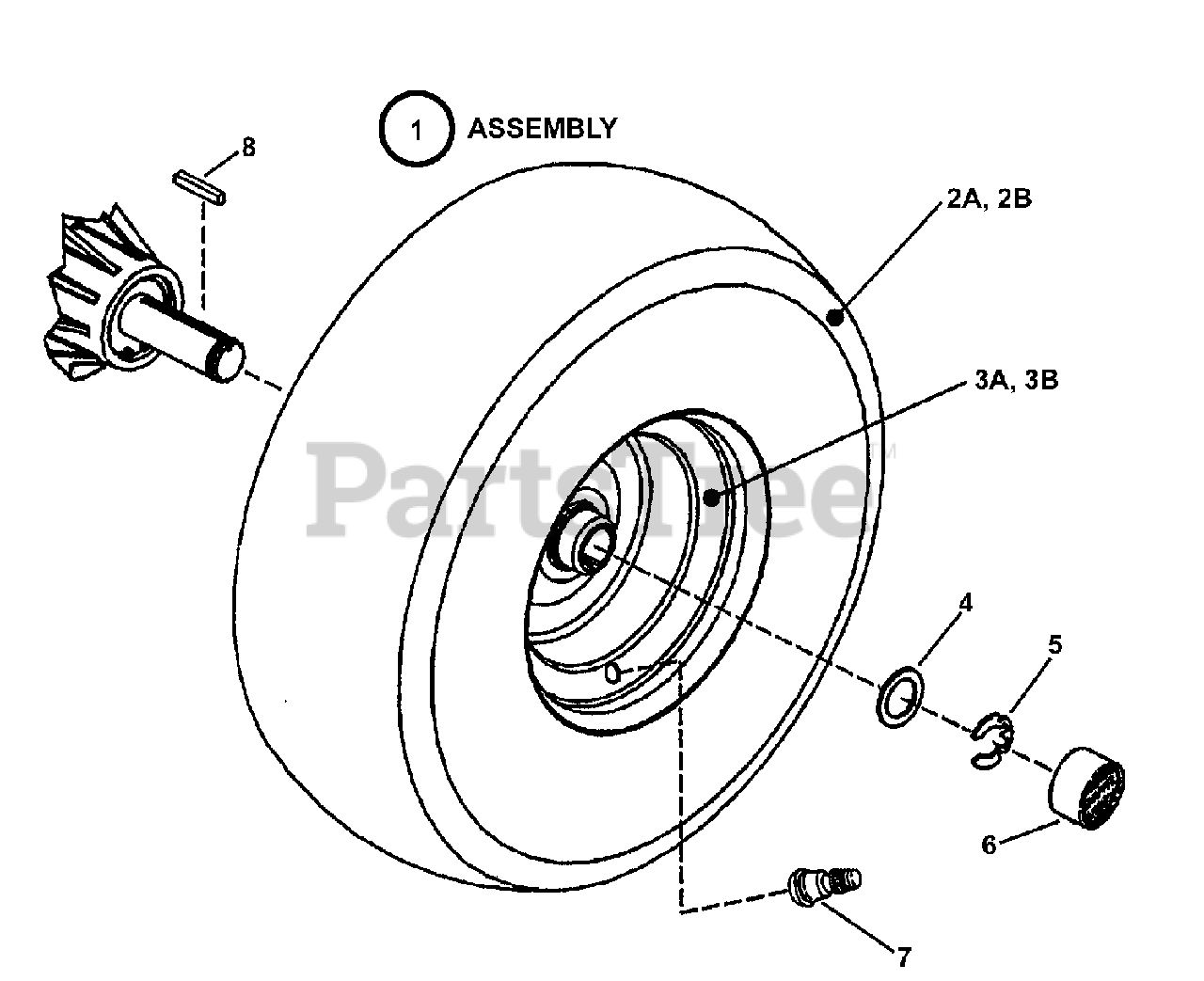

WHEELS- REAR Parts Diagram

  • Title

1

Snapper 7058947

ASSEMBLY, Rear Tire & Rim (Includes items 2A, 3A & 7)
(Superseded to 7058947YP)

Note: *(Used On 33" Deck Models)

$196.99

$

Usually ships in 2-12 days

0

--

Snapper 7058948

ASSEMBLY, Rear Tire & Rim, 18 x 8.50-8 Multi-Trac (Incl items 2A, 3A & 7)

Note: *(Used On 38" Deck Models)

$

$

Not available

2A

Snapper 7046321

TIRE, 18 x 7.00-8, Multi-Trac (33" Models)
(Superseded to 7046321YP)

Note: (per rear wheel & tire assembly)

$230.99

$

Usually ships in 2-12 days

0

2B

Snapper 7046322

TIRE, 18 x 8.50-8, Multi-Trac (38" Models)
(Superseded to 7072705YP)

Note: (per rear wheel & tire assembly)

$125.99

$

Usually ships in 2-12 days

0

3A

Snapper 7039471

RIM, 18 x 7.00 Wheel w/25mm Hub I. D.

Note: (per rear wheel & tire assembly)

$

$

Not available

3B

Snapper 7039468

RIM, 18 x 8.50 Wheel w/25mm Hub I. D.

Note: (per rear wheel & tire assembly)

$

$

Not available

4

Snapper 7072028

WASHER, 1.56 x 1.054 x .047 Flat

$

$

Not available

5

Snapper 7091764

KLIPRING, 1" External (Waldes Truarc 5304-100)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7011022

CAP, Hub
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7012234

AIR VALVE STEM & CAP, Snap-In
(Superseded to 7012234SM)

Note: per rear wheel & tire assembly

$6.49

$

Usually ships in 2-12 days

0

8

Snapper 7042940

KEY, Square M6 x 38mm
(Superseded to 7042940YP)

$6.49

$

Usually ships in 2-12 days

0
