ESXD WM82K (1687888-00) - Snapper XD 82V 21" Walk-Behind Mower Wheels Group Parts Diagram

XD 82V 21" Walk-Behind Mower

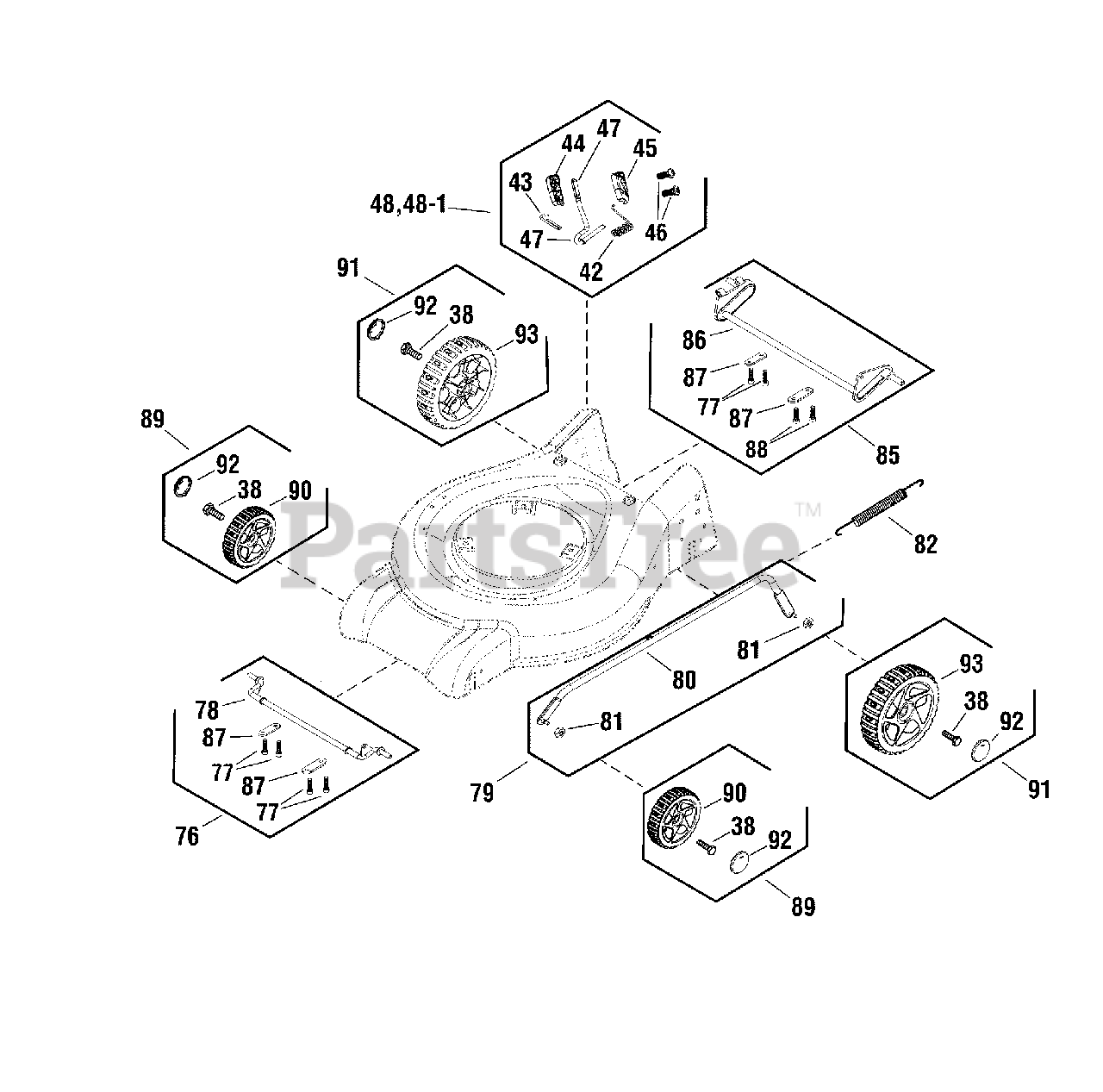

Wheels Group Parts Diagram

  • Title

48

Snapper 770180

KIT, Handle, Height Adjust

$23.99

$

In Stock, only 2 left!

0

48-1

Snapper 770350

KIT, Handle, Height Adjust, EU

$26.99

$

Usually ships in 2-12 days

0

42

SPRING

$

$

Not available

43

PIN, Cotter

$

$

Not available

44

HOUSING, Left

$

$

Not available

45

HOUSING, Right

$

$

Not available

46

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

47

ROD, Adjusting

$

$

Not available

76

Snapper 770186

KIT, Front Axle

$43.99

$

Usually ships in 2-12 days

0

77

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

78

AXLE, Front

$

$

Not available

87

TAB

$

$

Not available

79

Snapper 770185

KIT, Rod, Height Adjust, NA & EU

$37.99

$

Usually ships in 2-12 days

0

80

ROD, Height Adjust

$

$

Not available

81

NUT

$

$

Not available

82

Snapper 770189

KIT, Spring

$7.49

$

Usually ships in 2-12 days

0

85

Snapper 770184

KIT, Rear Axle

$57.99

$

Usually ships in 2-12 days

0

77

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

86

SHAFT

$

$

Not available

87

TAB

$

$

Not available

88

SCREW, Pan Torx Self Tap, ST4.2 x 20-C

$

$

Not available

89

Snapper 770188

KIT, Wheel, 8"

$40.99

$

Usually ships in 2-12 days

0

38

BOLT

$

$

Not available

90

WHEEL, 8"

$

$

Not available

92

COVER, Wheel

$

$

Not available

91

Snapper 770187

KIT, Wheel, 10", NA & EU

$62.99

$

Usually ships in 2-12 days

0

38

BOLT

$

$

Not available

92

COVER, Wheel

$

$

Not available

93

WHEEL, 10"

$

$

Not available
