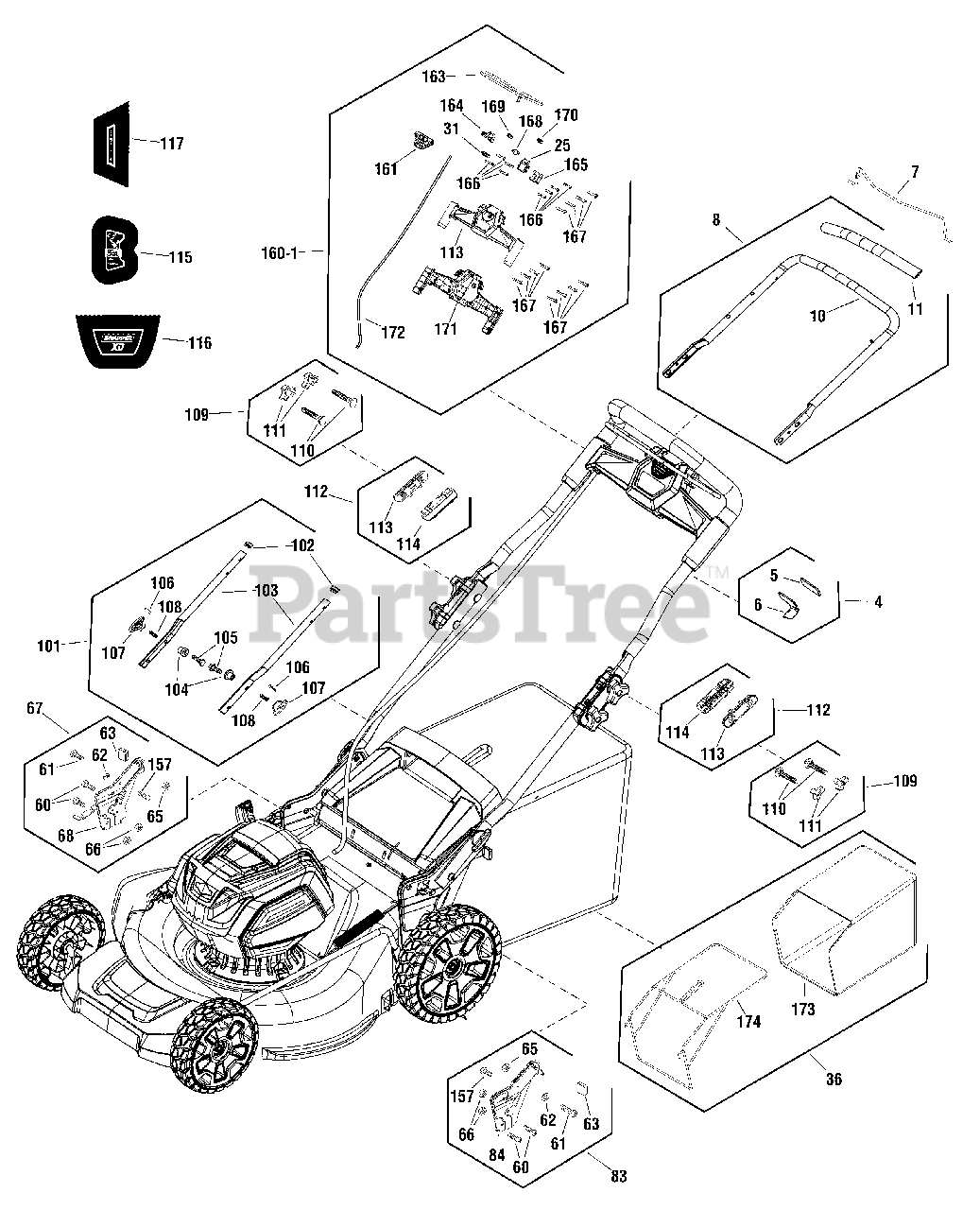

ESXD WM82 (80076031) - Snapper XD 82V 21" Walk-Behind Mower Handles Group, EU Parts Diagram

XD 82V 21" Walk-Behind Mower

Handles Group, EU Parts Diagram

  • Title
4

Snapper 770170

KIT, STOP

$5.49

$

Usually ships in 2-12 days

0

5

SPONGE

$

$

Not available

6

STOP

$

$

Not available

7

Snapper 770169

KIT, LEVER

$40.99

$

In Stock, only 1 left!

0

8

Snapper 770346

KIT, UPPER HANDLE, EU

$182.99

$

Usually ships in 2-12 days

0

10

UPPER HANDLE

$

$

Not available

11

SPONGE

$

$

Not available

36

Snapper 770182

KIT, GRASS BAGGER

$289.99

$

In Stock, only 1 left!

0

173

GRASS CATCHING BAG

$

$

Not available

174

FRAME

$

$

Not available

67

Snapper 770351

KIT, RIGHT BRACKET

$63.99

$

Usually ships in 2-12 days

0

60

BOLT

$

$

Not available

61

BOLT

$

$

Not available

62

GASKET

$

$

Not available

63

BUMPER

$

$

Not available

65

NUT

$

$

Not available

66

NUT

$

$

Not available

68

HEIGHT ADJUST, RIGHT

$

$

Not available

157

SCREW

$

$

Not available

83

Snapper 770179

KIT, LEFT BRACKET

$52.99

$

Usually ships in 2-12 days

0

84

LEFT HEIGHT ADJUST

$

$

Not available

60

BOLT

$

$

Not available

61

BOLT

$

$

Not available

62

GASKET

$

$

Not available

63

BUMPER

$

$

Not available

65

NUT

$

$

Not available

66

NUT

$

$

Not available

157

SCREW

$

$

Not available

101

Snapper 770177

KIT, LOWER HANDLE

$43.99

$

In Stock, only 1 left!

0

102

TUBE CAP

$

$

Not available

103

HANDLE, LOWER

$

$

Not available

104

BUSHING

$

$

Not available

105

SCREW

$

$

Not available

106

PIN

$

$

Not available

107

KNOB

$

$

Not available

108

SPRING

$

$

Not available

109

Snapper 770175

KIT, HARDWARE

$6.49

$

In Stock, Qty 5

0

110

BOLT

$

$

Not available

111

KNOB

$

$

Not available

112

Snapper 770176

KIT, BOX, FIXED

$12.99

$

In Stock, only 1 left!

0

113

BRACKET

$

$

Not available

114

BRACKET

$

$

Not available

160-1

Snapper 770547

KIT, SWITCH BOX COMPONENT, EU

$78.99

$

Usually ships in 2-12 days

0

25

SWITCH

$

$

Not available

31

CLAMP

$

$

Not available

113

TOP COVER

$

$

Not available

161

Snapper 770348

KEY, START

$11.99

$

Usually ships in 2-12 days

0

163

BAR

$

$

Not available

164

BLOCK

$

$

Not available

165

INSERT

$

$

Not available

166

SCREW

$

$

Not available

167

SCREW

$

$

Not available

168

CLAMP

$

$

Not available

169

SPRING

$

$

Not available

170

SPRING

$

$

Not available

171

BOTTOM COVER

$

$

Not available

172

CABLE

$

$

Not available

115

Snapper 770491

DECAL, START

$

$

Currently unavailable

116

Snapper 770492

DECAL, XD SHROUD

$

$

Currently unavailable

117

Snapper 770496

DECAL, CHARGER INDICATOR

$

$

Currently unavailable
