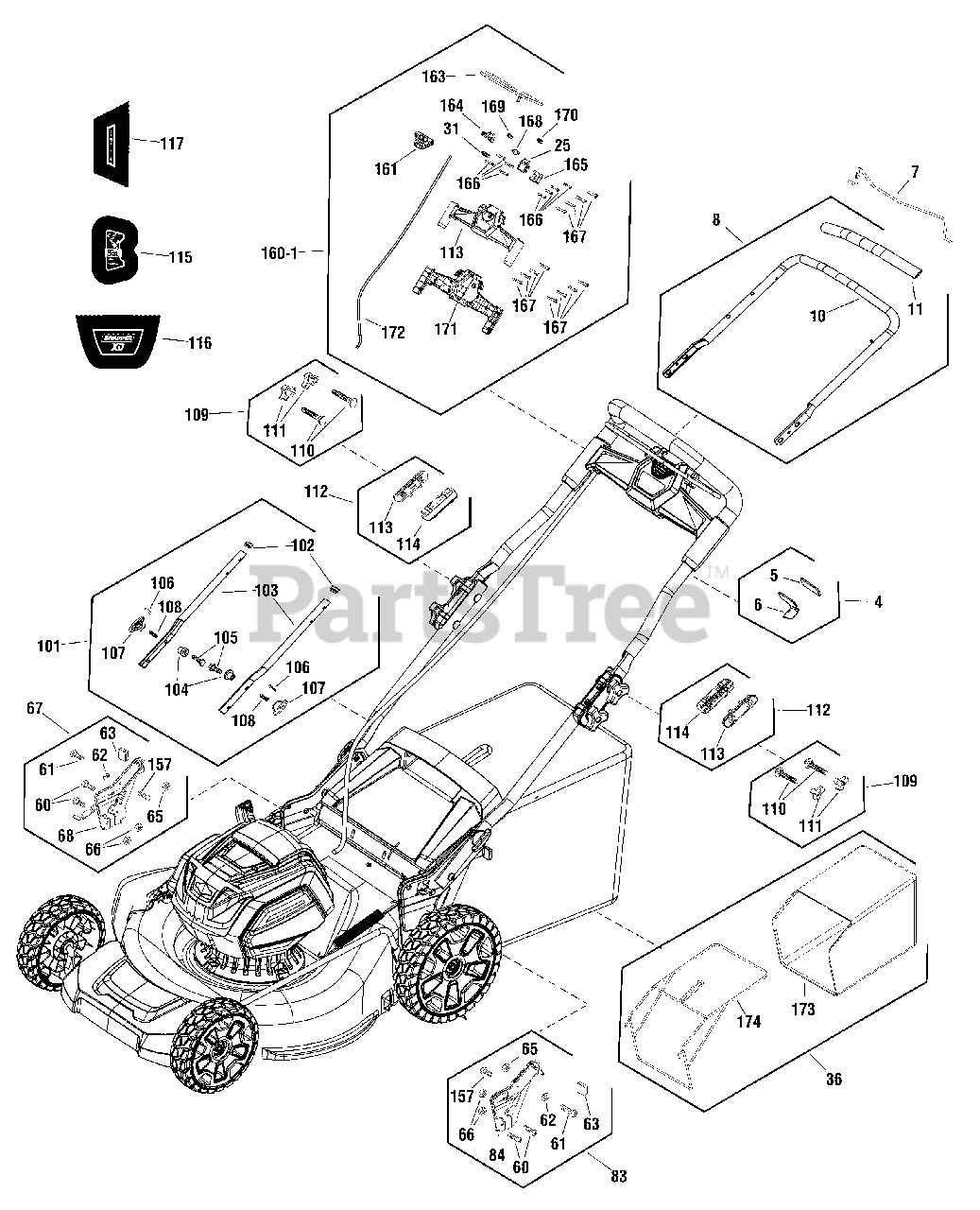

ESXD WM82 (1696778-00) - Snapper XD 82V 21" Walk-Behind Mower Handles Group, EU Parts Diagram

XD 82V 21" Walk-Behind Mower

Handles Group, EU Parts Diagram

  • Title
4

Snapper 770170

KIT, STOP

$5.49

$

Usually ships in 2-12 days

0

5

-----

SPONGE

$

$

Not available

6

-----

PIECE, LIMIT

$

$

Not available

7

Snapper 770169

KIT, LEVER

$40.99

$

In Stock, only 1 left!

0

8

Snapper 770346

KIT, UPPER HANDLE, EU

$182.99

$

Usually ships in 2-12 days

0

2

-----

SPONGE

$

$

Not available

3

-----

PUSH ROD, UP

$

$

Not available

36

Snapper 770182

KIT, GRASS BAGGER

$289.99

$

In Stock, only 1 left!

0

173

-----

BAG, CLOTH

$

$

Not available

174

-----

FRAME, GRASS BAG

$

$

Not available

67

Snapper 770351

KIT, RIGHT BRACKET, EU

$63.99

$

Usually ships in 2-12 days

0

60

-----

BOLT

$

$

Not available

61

-----

BOLT

$

$

Not available

62

-----

GASKET

$

$

Not available

63

-----

PLUG, RUBBER

$

$

Not available

64

-----

HEIGHT ADJUST, RIGHT

$

$

Not available

65

-----

NUT

$

$

Not available

66

-----

NUT

$

$

Not available

157

-----

BLOCK

$

$

Not available

83

Snapper 770179

KIT, LEFT BRACKET

$52.99

$

Usually ships in 2-12 days

0

84

-----

HEIGHT ADJUST, LEFT

$

$

Not available

101

Snapper 770177

KIT, LOWER HANDLE

$43.99

$

In Stock, only 1 left!

0

102

-----

PLUG, RUBBER

$

$

Not available

103

-----

ROB, DOWN PUSH

$

$

Not available

104

-----

BLOCK

$

$

Not available

105

-----

LIMIT COLUMN

$

$

Not available

106

-----

PIN

$

$

Not available

107

-----

KNOB

$

$

Not available

108

-----

SPRING

$

$

Not available

109

Snapper 770175

KIT, HARDWARE

$6.49

$

In Stock, Qty 5

0

110

-----

BOLT

$

$

Not available

111

-----

KNOB

$

$

Not available

112

Snapper 770176

KIT, BOX, FIXED

$12.99

$

In Stock, only 1 left!

0

113

-----

MAIN BODY, FIXED BOX

$

$

Not available

114

-----

COVER, FIXED BOX

$

$

Not available

160-1

Snapper 770547

KIT, SWITCH BOX COMPONENT, EU

$78.99

$

Usually ships in 2-12 days

0

23

-----

SLIDER, SWITCH

$

$

Not available

24

-----

SPRING

$

$

Not available

25

-----

SWITCH

$

$

Not available

26

-----

BOARD, RIGID

$

$

Not available

27

-----

COVER, UP

$

$

Not available

22

-----

COVER, DOWN

$

$

Not available

29

-----

SCREW

$

$

Not available

30

-----

SHAFT, SMALL

$

$

Not available

31

-----

BOARD, LINE PRESSING

$

$

Not available

32

-----

SCREW

$

$

Not available

33

-----

SCREW

$

$

Not available

34

-----

WIRE

$

$

Not available

115

Snapper 770491

DECAL, XD START

$

$

Currently unavailable

116

Snapper 770492

DECAL, XD SHROUD

$

$

Currently unavailable

117

Snapper 770496

DECAL, CHARGER INDICATOR

$

$

Currently unavailable

118

Snapper 770348

KEY,START

$11.99

$

Usually ships in 2-12 days

0
