ESS 50220E (7800083) - Snapper 22" Snow Thrower, 5hp Wheel Assembly Group Parts Diagram

22" Snow Thrower, 5hp

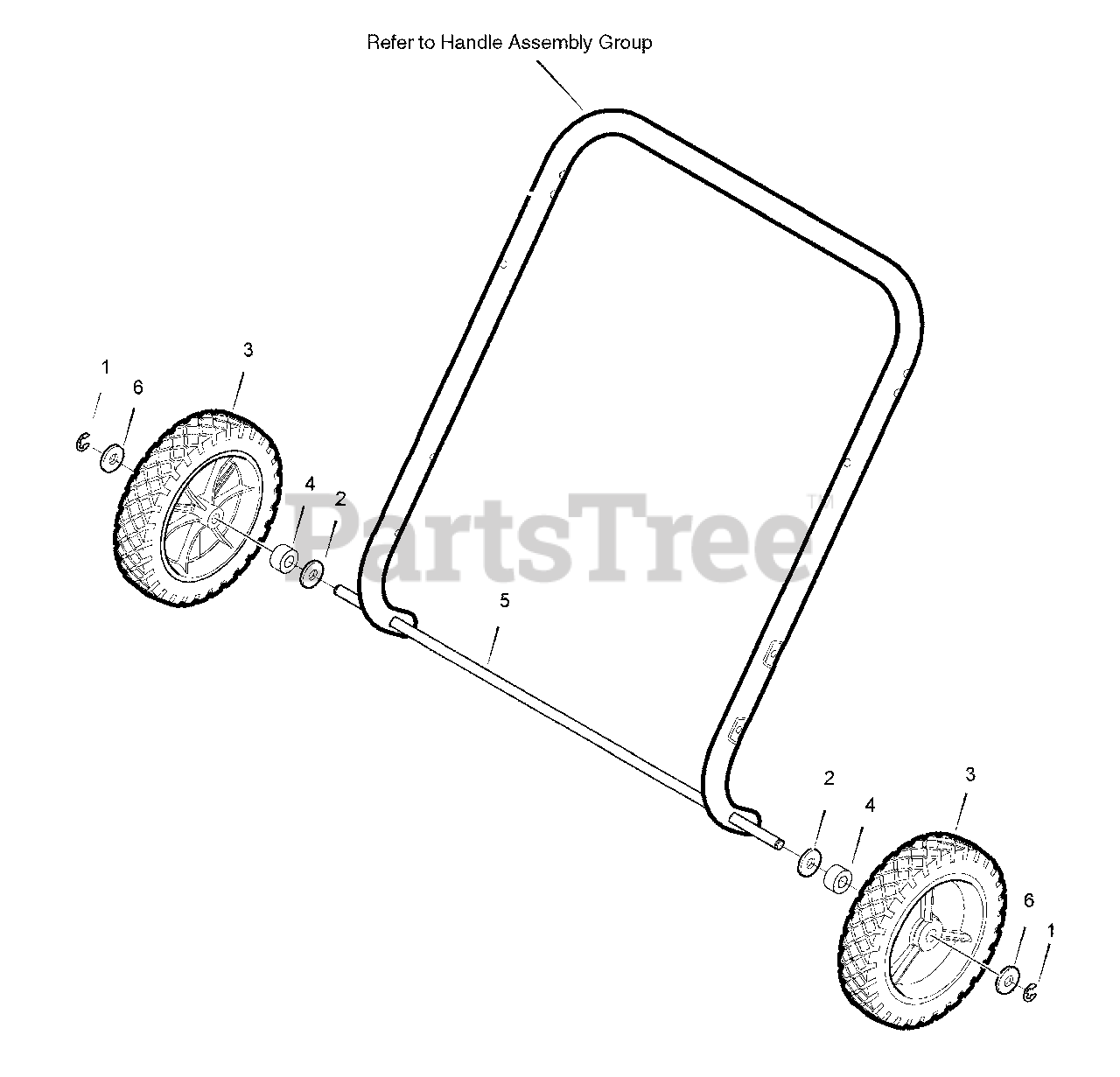

Wheel Assembly Group Parts Diagram

  • Title

1

Snapper 724559

RETAINER, E-Ring
(Superseded to 577598MA)

$4.49

$

In Stock, only 1 left!

0

2

Snapper 725332

WASHER, Flat 13/32 x 13/16

$

$

Not available

3

Snapper 725603

WHEEL & TIRE 7" x 1.50"
(Superseded to 760714MA)

$

$

Not available

4

Snapper 723192

SPACER, Sleeve 13/32 x 5/8
(Superseded to 309656MA)

$16.99

$

In Stock, only 1 left!

0

5

Snapper 722328

Rod, Axle
(Superseded to 1501879MA)

$24.99

$

Usually ships in 2-12 days

0

6

Snapper 724750

WASHER, Flat - 25/64 x 1.00 x 1/8
(Superseded to 583409MA)

$4.49

$

Usually ships in 2-12 days

0
