ESS 50220E (7800083) - Snapper 22" Snow Thrower, 5hp Electric Starter Group Parts Diagram

22" Snow Thrower, 5hp

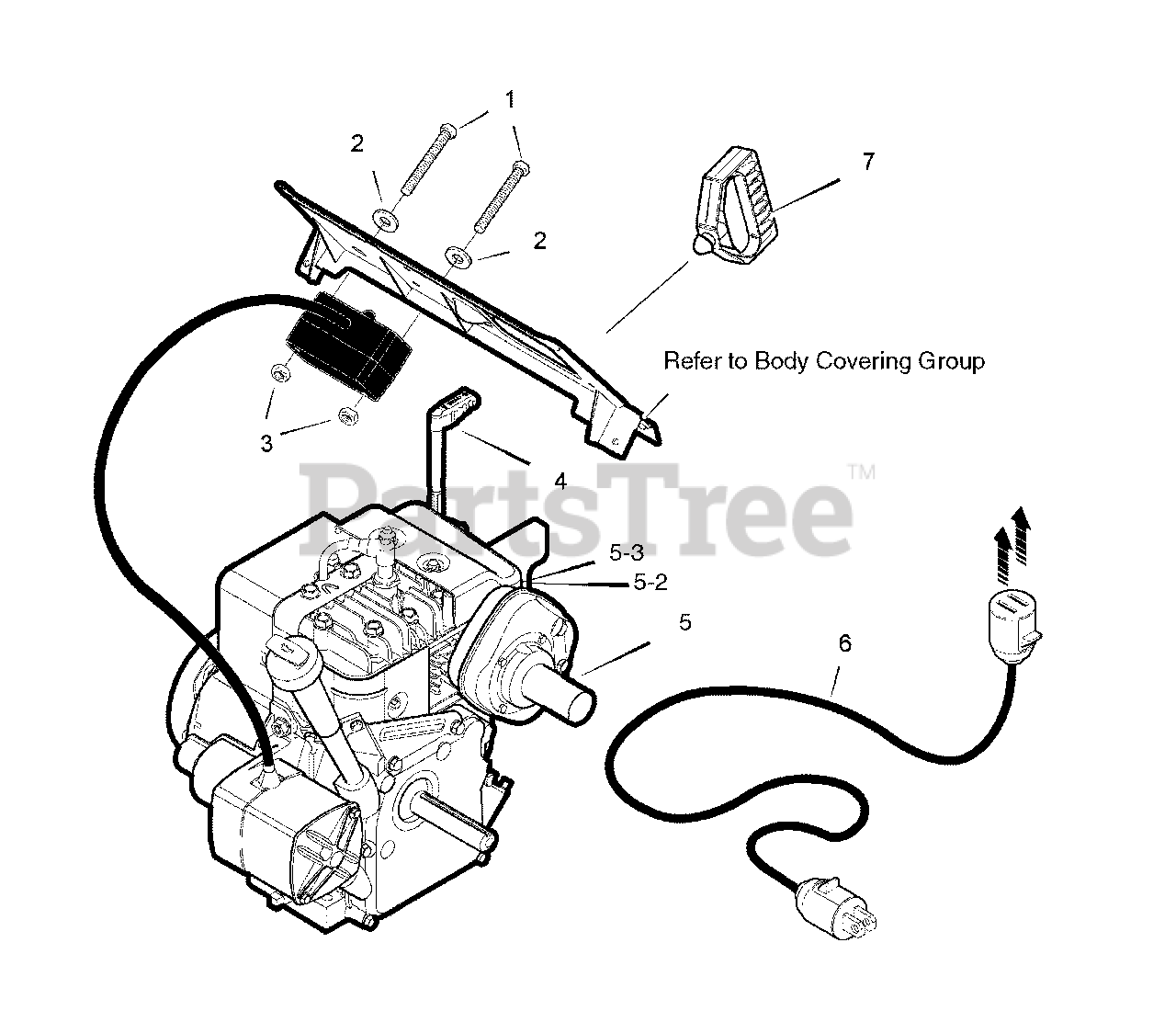

Electric Starter Group Parts Diagram

  • Title

1

Snapper 723237

SCREW, No. 8-32 x 3.00
(Superseded to 311633MA)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 723979

WASHER, FLAT No. 8
(Superseded to 414106MA)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 722892

NUT, Keps No. 8
(Superseded to 271163MA)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 791534

* LEVER, Choke
(Superseded to 790553)

$19.99

$

In Stock, only 1 left!

0

5

Snapper 698855

* KIT, Muffler Assembly
(Superseded to 699565)

$53.99

$

Usually ships in 2-12 days

0

5-2

Snapper 691880

* GASKET, Muffler

$5.49

$

In Stock, Qty 5

0

5-3

Snapper 727915

* BOLT, Muffler

$

$

Not available

6

Snapper 724865

CORD, Electric 110V 10 Feet
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

6

Snapper 728168

CORD, Electric 220V 10 Feet
(Superseded to 761332MA)

$24.99

$

Usually ships in 2-12 days

0

7

Snapper 699334

GRIP, Starter Rope

$13.99

$

In Stock, only 1 left!

0
