ESPX 2246 (2691104-01) - Snapper 46" Lawn Tractor, 22hp Hood, Grille & Dash Group Parts Diagram

46" Lawn Tractor, 22hp

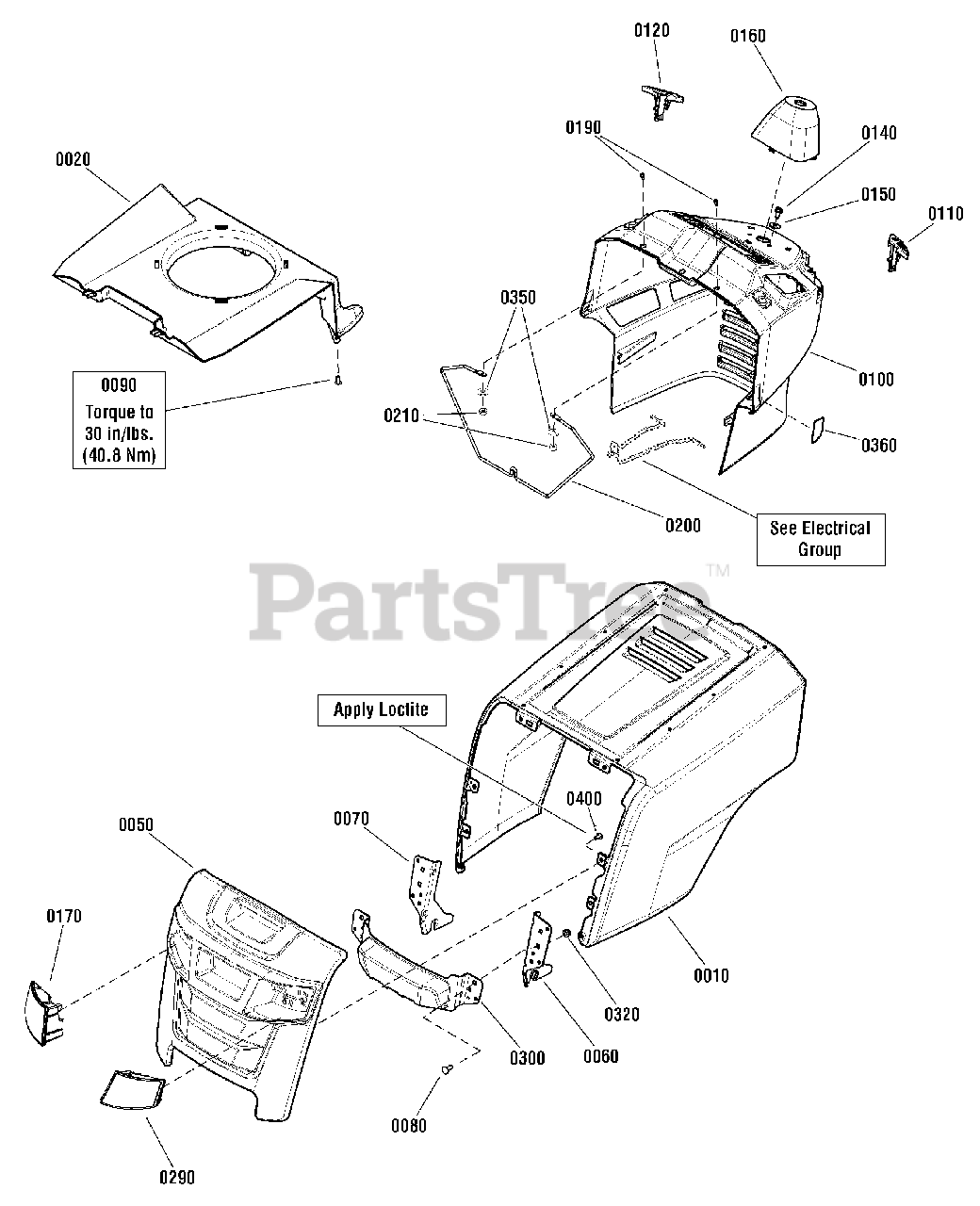

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1753164D

HOOD, One Piece, Center Emboss
(Superseded to 1753164DYP)

$234.99

$

Usually ships in 2-12 days

0

0020

Snapper 1738734

AIR DUCT
(Superseded to 1738734YP)

$155.99

$

Usually ships in 2-12 days

0

0050

Snapper 1752929

GRILLE, Front
(Superseded to 1752929YP)

$213.99

$

Usually ships in 2-12 days

0

0060

Snapper 1738566A

HINGE, Hood, LH
(Superseded to 1738566AYP)

$15.99

$

Usually ships in 2-12 days

0

0070

Snapper 1738565A

HINGE, Hood, RH
(Superseded to 1738565AYP)

$14.99

$

Usually ships in 2-12 days

0

0080

Snapper 7091714

BOLT, Carriage, 5/16 x 1, G5
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

0090

Snapper 1739220

SCREW, 7mm x 16mm
(Superseded to 1754203YP)

$4.49

$

In Stock, Qty 8

0

0100

Snapper 1753166

DASH, Nxt - Black
(Superseded to 1753166YP)

$208.99

$

Usually ships in 2-12 days

0

0110

Snapper 1738789

KNOB, Parking Brake
(Superseded to 1738789YP)

$7.49

$

In Stock, only 1 left!

0

0120

Snapper 1738788

KNOB, Cruise
(Superseded to 1738788YP)

$8.49

$

Usually ships in 2-12 days

0

0140

Snapper 1664847

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 1919381

WASHER, 5/16 x 1
(Superseded to 1919381SM)

$4.49

$

In Stock, only 1 left!

0

0160

Snapper 1738790

COVER, Steering Shaft
(Superseded to 1738790YP)

$10.99

$

Usually ships in 2-12 days

0

0170

Snapper 1753167

HEADLIGHT, Led, LH
(Superseded to 1753167YP)

$108.99

$

Usually ships in 2-12 days

0

0190

Snapper 1739942

SCREW, Pan Head Phillips, #10-24 x 7/8
(Superseded to 1739942YP)

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper 1738964

ROD, Dash Support, 1/4 Dia. x 10"
(Superseded to 1738964YP)

$19.99

$

Usually ships in 2-12 days

0

0210

Snapper 1933896

NUT,Ny-Lock 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0290

Snapper 1753168

HEADLIGHT, Led, RH
(Superseded to 1753168YP)

$92.99

$

Usually ships in 2-12 days

0

0300

Snapper 1753169BM

BUMPER, Front
(Superseded to 1753169BMYP)

$49.99

$

Usually ships in 2-12 days

0

0320

Snapper 1960686

NUT, Hex Flange, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0350

Snapper 1960353

WASHER, 1/4 x 27/32 OD
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

0360

Snapper 1753895

TRIM, Protective
(Superseded to 1753895YP)

$7.99

$

Usually ships in 2-12 days

0

0400

Snapper 1754203

SCREW, 7mm Dia. x 16mm
(Superseded to 1754203YP)

$4.49

$

In Stock, Qty 8

0
