ESPX 2246 (2691104-01) - Snapper 46" Lawn Tractor, 22hp Engine Group - 20 & 22HP Briggs & Stratton Parts Diagram

46" Lawn Tractor, 22hp

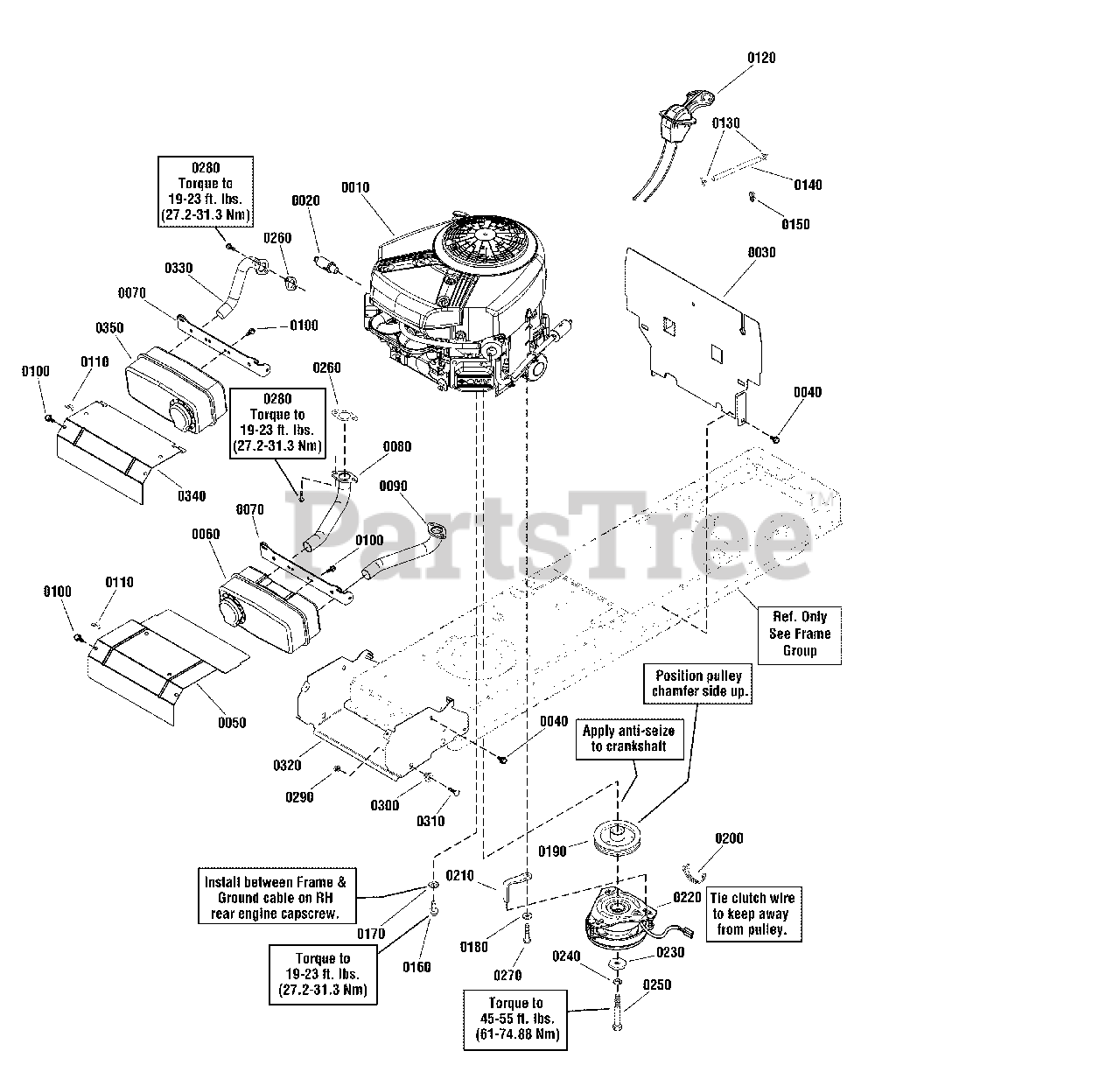

Engine Group - 20 & 22HP Briggs & Stratton Parts Diagram

  • Title

0010

Snapper 331777-0119-B1

* ENGINE, 20 Gross HP Briggs & Stratton, Single Intek

Note: (Model part #2691103-00)

$

$

Not available

0010

Snapper 407777-3127-B1

* ENGINE, 22 Gross HP Briggs & Stratton Twin Intek

Note: (Model part #2691104-00)

$

$

Not available

0010

Snapper 40R877-0014-B1

* ENGINE, 22 Gross HP Briggs & Stratton Twin Intek

Note: (Model part #2691104-01)

$

$

Not available

0020

Snapper 1750159YP

VALVE, Drain

$15.99

$

Usually ships in 2-12 days

0

0030

Snapper 1738380AYP

HEAT SHIELD, Engine

$51.99

$

Usually ships in 2-12 days

0

0040

Snapper 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0050

Snapper 1727997ASM

HEAT SHIELD, Engine, Twin

$33.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727994SM

MUFFLER, Briggs & Stratton Twin

$98.99

$

Usually ships in 2-12 days

0

0070

Snapper 1727976BMYP

SUPPORT, Muffler

$14.99

$

Usually ships in 2-12 days

0

0080

Snapper 1727979SM

PIPE, Exhaust, Flanged, R.H, 11/8 OD

Note: (Twin)

$37.99

$

In Stock, only 1 left!

0

0090

Snapper 1727980SM

PIPE, Exhaust, Flanged, L.H, 11/8 OD

Note: (Twin)

$37.99

$

In Stock, only 2 left!

0

0100

Snapper B4300GS

SCREW, Hex Washer Head, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0110

Snapper 703176

CLIP, Wire

$3.49

$

Usually ships in 2-12 days

0

0120

Snapper 1738794YP

CONTROL, Throttle (Choke-A-Matic)

$52.99

$

In Stock, only 1 left!

0

0120

Snapper 1750217YP

CONTROL, Throttle

$65.99

$

In Stock, only 1 left!

0

0130

Snapper 93053B

CLAMP, Hose

$

$

Not available

0140

Snapper 1734993SM

HOSE, Fuel, 1/4 ID x 1/2 OD, 55" Long, Low Perm.
(Superseded to 845503)

$35.99

$

Usually ships in 2-12 days

0

0150

Snapper 1730268SM

CLIP, Hose, 1/2 Dia., Push In

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 2827187SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 2820427SM

WASHER, Lock, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 1 left!

0

0200

Snapper 1701011SM

TIE, Self Locking, 15" Long

$5.49

$

In Stock, only 2 left!

0

0210

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 10

0

0220

Snapper 1736105SM

CLUTCH, Ogura

$387.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0240

Snapper 1960769YP

WASHER, Belleville

$4.99

$

In Stock, only 1 left!

0

0250

Snapper 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5

$7.49

$

In Stock, only 1 left!

0

0260

Snapper 1731214SM

GASKET, Exhaust

Note: (Qty. 2 Used on Twin)

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 690341

SCREW

Note: (Qty. 4 Used on Twin)

$5.99

$

In Stock, only 3 left!

0

0290

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 1728086SM

PIVOT, Hood, Powdered Metal

$5.99

$

In Stock, Qty 7

0

0310

Snapper 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0320

Snapper 1738265AYP

SUPPORT, Muffler & Hood Pivot

$67.99

$

Usually ships in 2-12 days

0

0330

Snapper 1728959SM

PIPE, Exhaust, Flanged, 1-1/4 OD

Note: (Single)

$34.99

$

Usually ships in 2-12 days

0

0340

Snapper 1727996BMYP

SHIELD, Heat

$43.99

$

Usually ships in 2-12 days

0

0350

Snapper 1727993SM

MUFFLER, Briggs & Stratton, Single

$93.99

$

In Stock, only 1 left!

0
