ESPX 2246 (2691104-01) - Snapper 46" Lawn Tractor, 22hp Electrical Group Parts Diagram

46" Lawn Tractor, 22hp

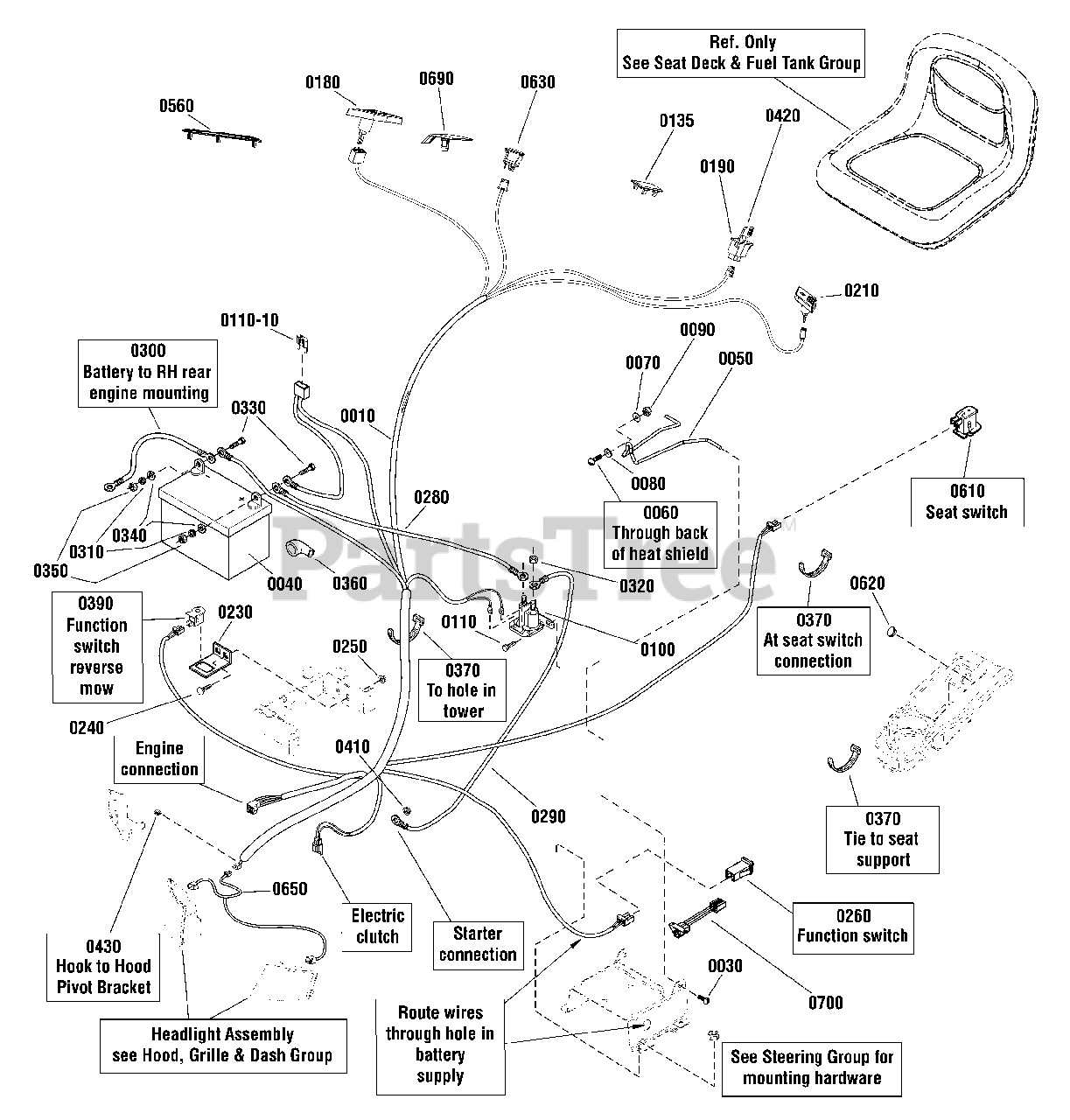

Electrical Group Parts Diagram

  • Title

0010

Snapper 1753020YP

WIRING HARNESS (for Trombetta Ignition Switch)

Note: (Model Part #'s 2691103-00 & 2691104-00)

$95.99

$

Usually ships in 2-12 days

0

0010

Snapper 1757822YP

WIRING HARNESS (for Delta Ignition Switch)

Note: (Model Part #2691104-01)

$152.99

$

Usually ships in 2-12 days

0

0010-10

* FUSE, Mini, 20 Amp

Note: (Included with Ref. No. 0110)

$

$

Not available

0030

Snapper 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0040

BATTERY, 12 Volt, 7U1L

$

$

Not available

0050

Snapper 1730007SM

HOLD DOWN, Battery

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318SM

BOLT, Carriage, 1/4-20 x 7/8, G5

$4.49

$

In Stock, only 2 left!

0

0070

Snapper 703229

WASHER, 1/4 x 27/32

$4.49

$

In Stock, Qty 7

0

0080

Snapper 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1728963SM

SOLENOID
(Superseded to 1755381YP)

$24.99

$

In Stock, Qty 20+

0

0110

Snapper B4300GS

SCREW, Hex Washer Head, Taptite,1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 3 left!

0

0135

Snapper 1722611SM

PLUG, Hole 27/32 x 1-3/4

$6.99

$

In Stock, only 1 left!

0

0180

Snapper 1738982YP

SWITCH, PTO

$43.99

$

In Stock, only 3 left!

0

0190

Snapper 1726556SM

SWITCH, RMO, Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Snapper 1738983YP

SWITCH, Light

$39.99

$

Usually ships in 2-12 days

0

0230

Snapper 1728026ASM

SUPPORT, RMO Switch

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0250

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 1732006SM

SWITCH, Push Button
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

0280

Snapper 1752685YP

CABLE, 8GA, Red, 10"

$11.99

$

In Stock, only 1 left!

0

0290

Snapper 1751450YP

CABLE, 8GA, Red, 25"

$11.99

$

Usually ships in 2-12 days

0

0300

Snapper 1752686YP

CABLE, 8GA, Black, 26"

$12.99

$

Usually ships in 2-12 days

0

0310

Snapper 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

0320

Snapper 2860750SM

NUT, Hex, Keps, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 8

0

0340

Snapper 2821319SM

WASHER, 1/4 x 5/8 OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0350

Snapper 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

0360

Snapper 1677296SM

BOOT, Insulator Battery Terminal, Red

$6.49

$

In Stock, Qty 10

0

0370

Snapper 1701011SM

TIE, Self Locking, 7-5/16

$5.49

$

In Stock, only 2 left!

0

0390

Snapper 1732004SM

SWITCH, Push Button, NO, Black

$8.99

$

In Stock, Qty 20+

0

0410

Snapper 703233

NUT, Hex Flange Whiz Lock, 1/4-20

$4.49

$

In Stock, Qty 5

0

0420

Snapper 1726557SM

KEY, No Mow Module (Yellow)

$5.49

$

In Stock, Qty 20+

0

0430

Snapper 2172434SM

CLIP, Panel

$4.99

$

Usually ships in 2-12 days

0

0560

Snapper 1752934YP

PLUG, Dash, No Hourmeter

$4.99

$

Usually ships in 2-12 days

0

0610

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0620

Snapper 1732007SM

PLUG, Hole, 7/8 Dia.

$4.49

$

Usually ships in 2-12 days

0

0630

Snapper 1737959YP

SWITCH, Ignition (Trombetta)(Without Key)
(Superseded to 7600215YP)

Note: (Model Part #'s 2691103-00 & 2691104-00)

$64.99

$

In Stock, Qty 7

0

0630

Snapper 7106169YP

SWITCH, Ignition (Delta)(Without Key)

Note: (Model Part #2691104-01)

$17.99

$

In Stock, Qty 20+

0

0650

Snapper 1751941YP

HARNESS, Headlight, Led Lights

$24.99

$

Usually ships in 2-12 days

0

0690

Snapper 1753240YP

PLUG, Starter Insert

$4.49

$

Usually ships in 2-12 days

0

0700

Snapper 1734025SM

JUMPER, Wires & Connectors Assembly, 3"

$14.99

$

In Stock, only 1 left!

0

1190

Snapper 1751523YP

KEY, Ignition Switch - Trombetta, Blister Pack of 2, CE/CAN

Note: (Not Illustrated)(Model Part #'s 2691103-00 & 2691104-00)

$17.99

$

Usually ships in 2-12 days

0

1190

Snapper 7106172YP

KEY, Ignition Switch - Pack of 2, CE/CAN

Note: (Not Illustrated)(Model Part #2691104-01)

$28.99

$

In Stock, only 2 left!

0
