ESPX 17542 (2691217-00) - Snapper 42" Lawn Tractor, 17.5hp Controls Group Parts Diagram

42" Lawn Tractor, 17.5hp

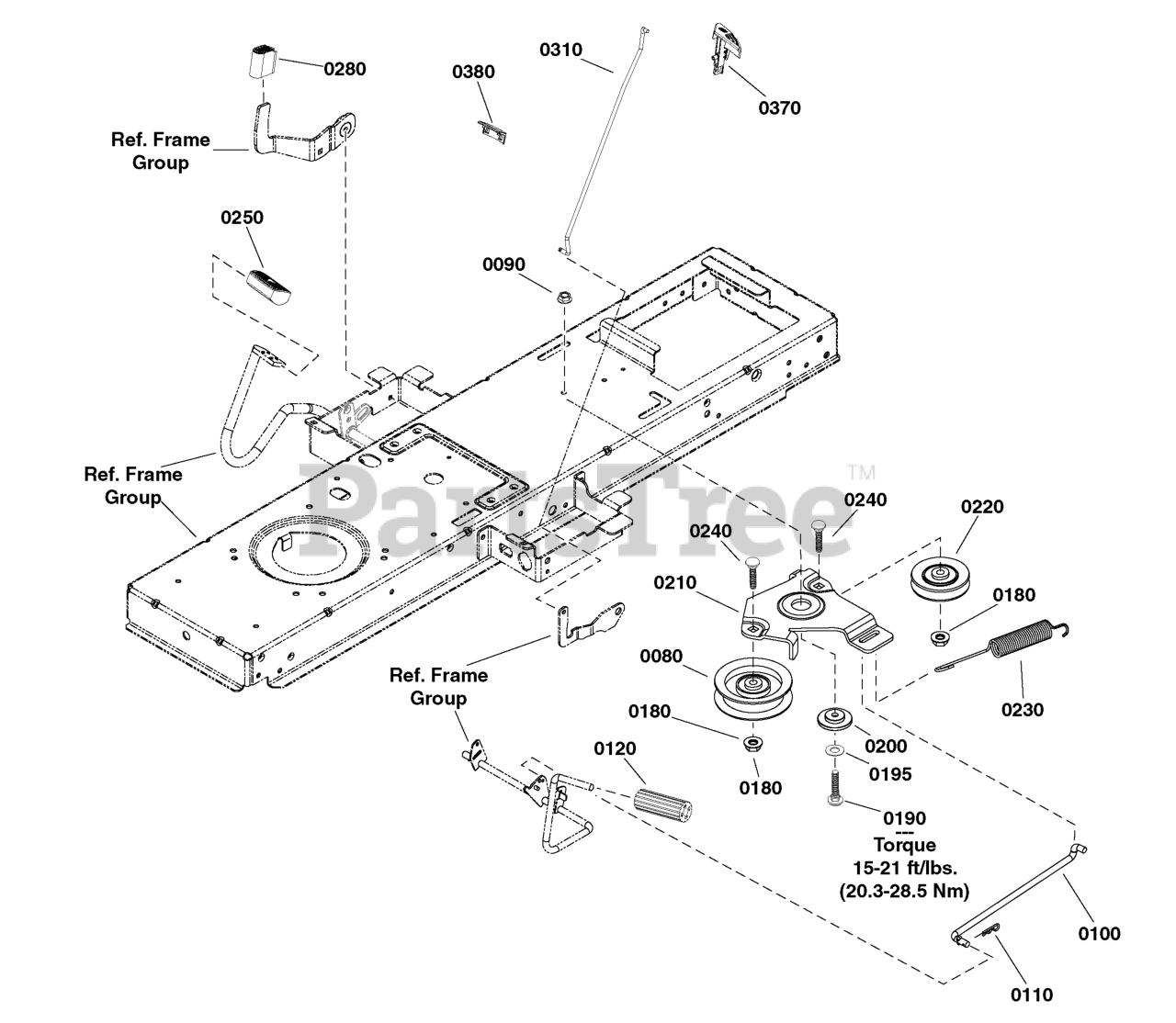

Controls Group Parts Diagram

  • Title

0080

Snapper 1728000SM

PULLEY, Idler

$18.99

$

In Stock, Qty 20+

0

0090

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 1727254SM

ROD, Brake Return

$15.99

$

Usually ships in 2-12 days

0

0110

Snapper 1722460SM

HAIRPIN
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0120

Snapper 1727261SM

PEDAL, Brake

$9.99

$

In Stock, Qty 5

0

0180

Snapper 703158

NUT, Hex Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0190

Snapper 703570

CAPSCREW, Hex Head, 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 10

0

0195

Snapper 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

0200

Snapper 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 3 left!

0

0210

Snapper 1727894SM

BRACKET, Idler

$32.99

$

Usually ships in 2-12 days

0

0220

Snapper 1728001SM

PULLEY, 3"

$18.99

$

In Stock, Qty 20+

0

0230

Snapper 1729620SM

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

0240

Snapper 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, only 2 left!

0

0250

Snapper 1721675SM

PAD, Foot Pedal Forward

$

$

Not available

0280

Snapper 1727259SM

PAD, Foot Pedal Reverse

$8.49

$

Usually ships in 2-12 days

0

0310

Snapper 1739876YP

ROD, Parking Brake

$16.99

$

Usually ships in 2-12 days

0

0370

Snapper 1738789YP

KNOB, Brake

$7.49

$

In Stock, only 1 left!

0

0380

Snapper 1758788YP

KNOB, Cruise

$

$

Currently unavailable
