ESPV 22675HW (7800872) - Snapper 22" Walk-Behind Mower, 6.75hp Transmission Assembly Parts Diagram

22" Walk-Behind Mower, 6.75hp

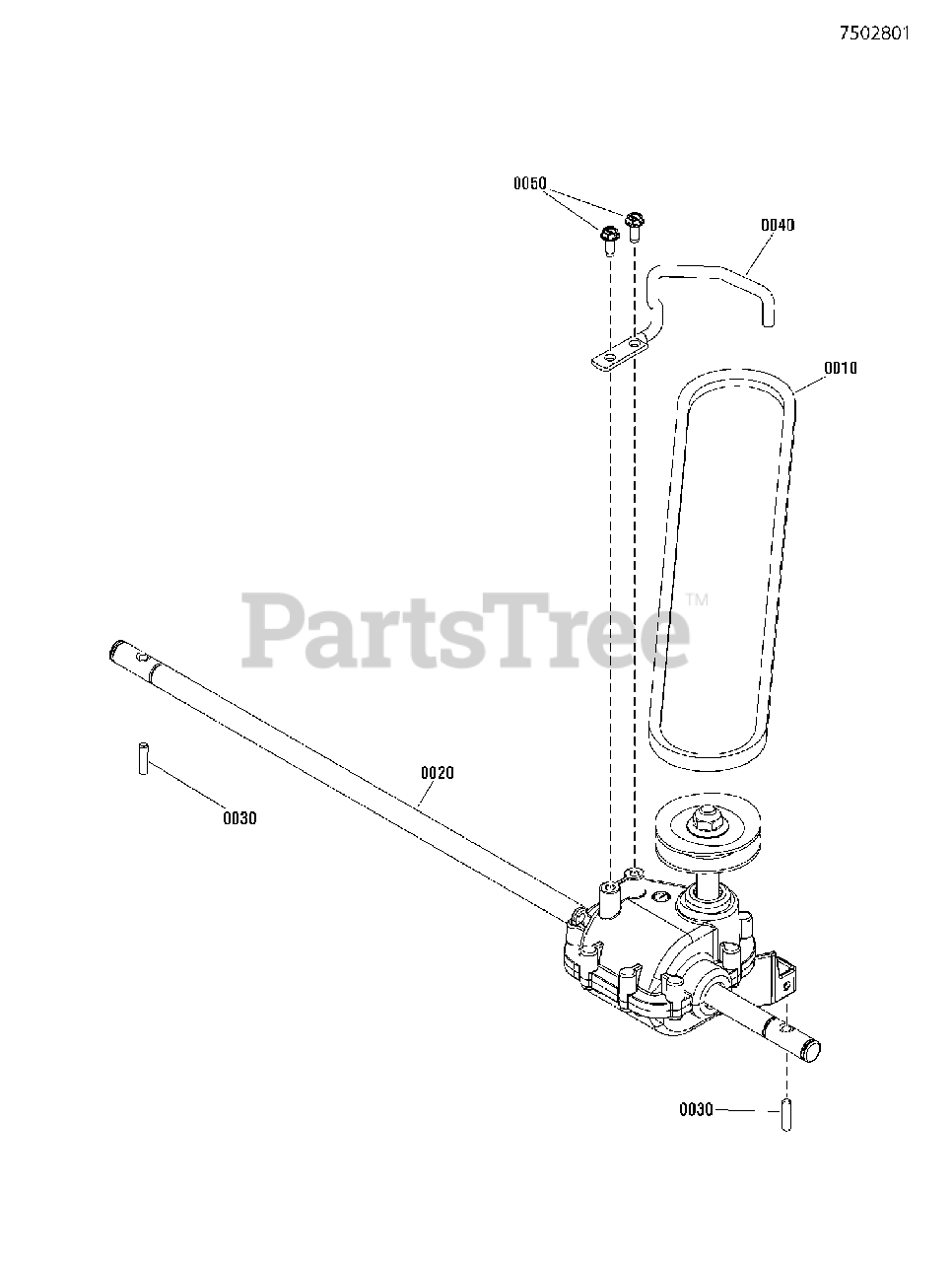

Transmission Assembly Parts Diagram

  • Title

0010

Snapper 7100913

BELT, 3L, Traction Drive, 22" Pivot Handle
(Superseded to 7100913YP)

Note: 3L Section; 31.94 Effective Length

$13.99

$

In Stock, only 1 left!

0

0020

Snapper 7100857

TRANSMISSION, Rocker, 22" WBM
(Superseded to 7100857YP)

$114.99

$

Usually ships in 2-12 days

0

0030

Snapper 7101270

PIN, Drive, 22" WBM, Front Wheel Drive
(Superseded to 7101270YP)

$5.49

$

In Stock, only 2 left!

0

0040

Snapper 7101009

BELT GUIDE, Transmission, 22" WBM
(Superseded to 7101009YP)

$13.99

$

Usually ships in 2-12 days

0

0050

Snapper 7900055

SCREW, #10-14 x 1/2" Hex Washer Plastite
(Superseded to 7900055YP)

$4.49

$

In Stock, only 2 left!

0
