ESPV 22675HW (7800689) - Snapper 22" Walk-Behind Mower, 6.75hp Height-of-Cut Assemblies Parts Diagram

22" Walk-Behind Mower, 6.75hp

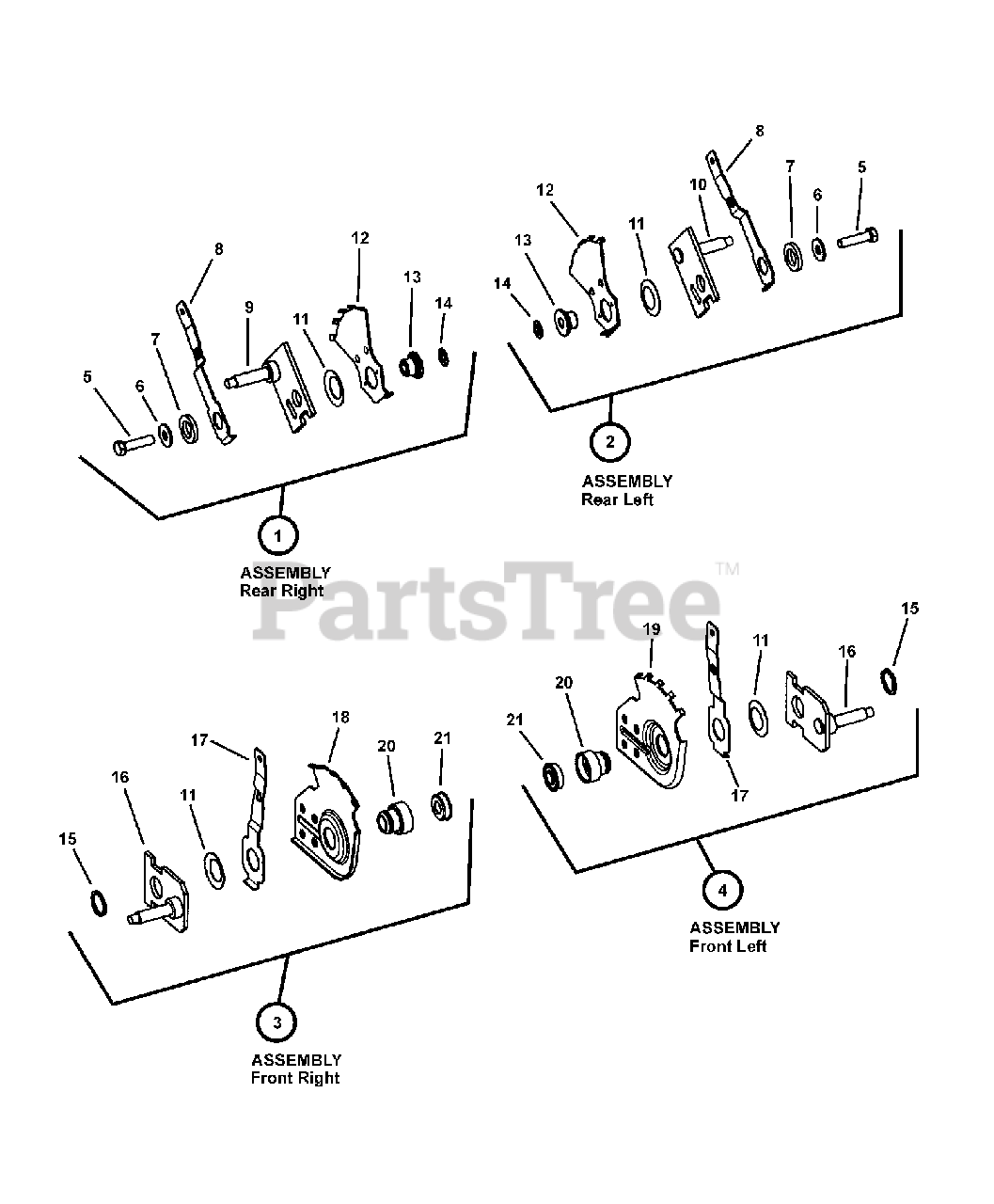

Height-of-Cut Assemblies Parts Diagram

  • Title
1

Snapper 7501056

ASSY, HOC, Right Rear, 22" WBM
(Superseded to 7501056YP)

$

$

Not available

2

Snapper 7501055

ASSY, HOC, Left Rear, 22" WBM
(Superseded to 7501055YP)

$

$

Not available

3

Snapper 7501057

ASSY, HOC, Right Front, 22" WBM, Propelled
(Superseded to 7501057YP)

$74.99

$

Usually ships in 2-12 days

0

4

Snapper 7501058

ASSY, HOC, Left Front, 22" WBM, Propelled
(Superseded to 7501058YP)

$86.99

$

In Stock, only 1 left!

0

5

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5, YZ
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

6

Snapper 7900047

WASHER, .391 x 1 x 14 Gage Flat
(Superseded to 7900047YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7900046

WASHER, .76 x 1.25 x .180 Flat
(Superseded to 7900046YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7101205

LEVER, HOC, 22" WBM
(Superseded to 7101205YP)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 7500409

ASSY, Rear Axle, RH 22" WBM
(Superseded to 7500409YP)

$12.99

$

Usually ships in 2-12 days

0

10

Snapper 7500408

ASSY, Rear Axle, LH 22" WBM
(Superseded to 7500408YP)

$13.99

$

Usually ships in 2-12 days

0

11

Snapper 722611

WASHER, 1 ID x 1.64 OD Bellville
(Superseded to 17X178MA)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7300529

PLATE, Index, HOC, Rear
(Superseded to 7300529YP)

$

$

Not available

13

Snapper 721899

SPACER, Height Adjust
(Superseded to 1102029MA)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 720118

RETAINING RING, .906 ID x .078 Thick
(Superseded to 011X24MA)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7500404

ASSY, Front Axle 22", Propelled
(Superseded to 7500404YP)

$15.99

$

Usually ships in 2-12 days

0

17

Snapper 7101212

LEVER, HOC, 22" WBM
(Superseded to 7101212YP)

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 7300528

PLATE, HOC, Front Right, 22" WBM

$

$

Currently unavailable

19

Snapper 7300527

PLATE, HOC, Front Left, 22" WBM

$

$

Currently unavailable

20

Snapper 720685

RETAINER, Bearing
(Superseded to 071043MA)

$9.49

$

Usually ships in 2-12 days

0

21

Snapper 720761

BALL BEARING
(Superseded to 071579MA)

$40.99

$

In Stock, only 1 left!

0
