ESPV 21675 (7800871) - Snapper 21" Walk-Behind Mower, 6.75hp Wheels Group Parts Diagram

21" Walk-Behind Mower, 6.75hp

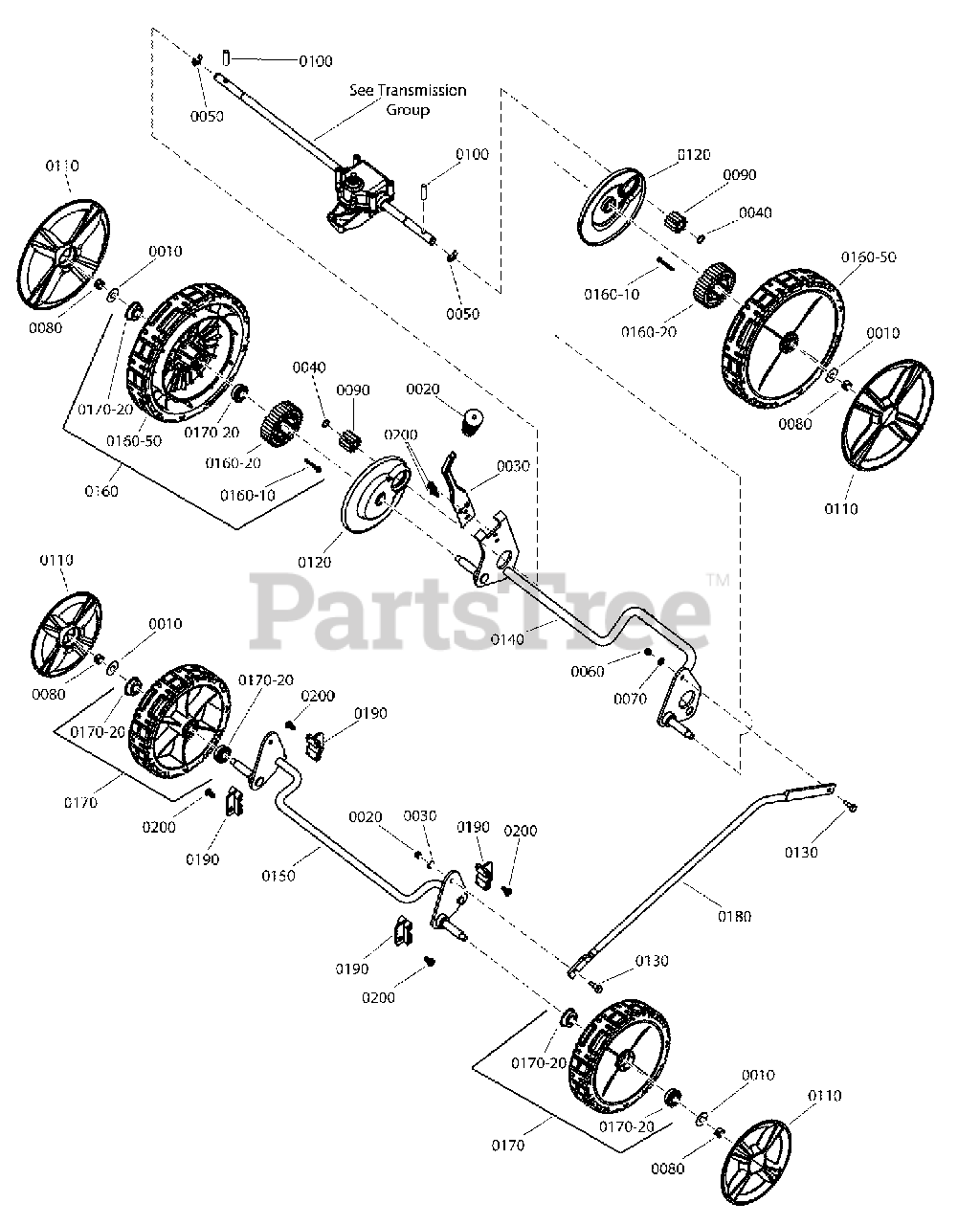

Wheels Group Parts Diagram

  • Title

0010

Snapper 703966

WASHER, 1 OD x .387 ID, Flat

$4.49

$

In Stock, only 2 left!

0

0020

Snapper 61297MA

GRIP, Height-of-Cut

$

$

Currently unavailable

0030

Snapper 672278MA

LEVER, Spring Height-of-Cut

$12.99

$

Usually ships in 2-12 days

0

0040

Snapper 703976

RETAINING RING, .392 ID EXT, .042 Thk

$4.49

$

In Stock, Qty 10

0

0050

Snapper 7027999YP

RETAINING RING, .452-.463 ID

$4.49

$

In Stock, only 4 left!

0

0060

Snapper 15X146MA

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0070

Snapper 7091552SM

WASHER, .219 ID, .5 OD, .049 Thk, Flat, BZ

$3.99

$

In Stock, Qty 16

0

0080

Snapper 703347

NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear

$4.99

$

In Stock, only 4 left!

0

0090

Snapper 7100820YP

GEAR, Pinion, 11 T

$

$

Not available

0100

Snapper 7100861YP

PIN, .187 OD, .625 Long, Axle

$4.99

$

In Stock, only 1 left!

0

0110

Snapper 7101350YP

HUBCAP, 8 & 9 Wheel Spoked- Snapper Cool Gray

$10.99

$

In Stock, Qty 20+

0

0120

Snapper 7101367YP

SHIELD, DUST, 21" WBM, RD

$7.49

$

In Stock, only 2 left!

0

0130

Snapper 7101774YP

BOLT, #10-24 Thd, 1/4 OD X 3/8 Long Shoulder, YZ

$8.49

$

In Stock, only 2 left!

0

0140

Snapper 7400275YP

WELDMENT, Rear Crossbar 21 WBM, RD

$110.99

$

In Stock, only 1 left!

0

0150

Snapper 7400276YP

WELDMENT, Front Crossbar 21 WBM, RD

$152.99

$

Usually ships in 2-12 days

0

0160

Snapper 7600174YP

KIT, Wheel Assembly, 9X2 Drive, SN TRD,(w/external gear)

$56.99

$

Usually ships in 2-12 days

0

0160-10

Snapper 7091196SM

SCREW, #8 x 1-1/4 Hi-Lo, Hex Washer Self-Tap

Note: (Qty. 1 to 3 per wheel as required.)

$4.99

$

Usually ships in 2-12 days

0

0160-20

Snapper 7100914YP

GEAR, 34 T, External Wheel

$10.99

$

Usually ships in 2-12 days

0

0160-50

Snapper 7500647YP

ASSEMBLY, Wheel, 9 Snapper Tread w/Bearing Charcoal Gray

$49.99

$

In Stock, only 1 left!

0

0170

Snapper 7500540YP

ASSEMBLY, Wheel, 8 x 2 Idle, Snapper Tread, Charcoal Gray

$40.99

$

In Stock, only 2 left!

0

0170-20

Snapper 7101380YP

BALL BEARING, 1-1/8 O.D., Flange
(Superseded to 071579MA)

$40.99

$

In Stock, only 1 left!

0

0180

Snapper 7101430DYP

ROD, Lifter Link

$16.99

$

Usually ships in 2-12 days

0

0190

Snapper 7101241YP

BUSHING, Front, 21"

$6.99

$

In Stock, only 4 left!

0

0200

Snapper 703961

SCREW, 1/4-20 x .550 Pan Head Self-Tap (Torx)

$4.49

$

In Stock, Qty 20+

0
