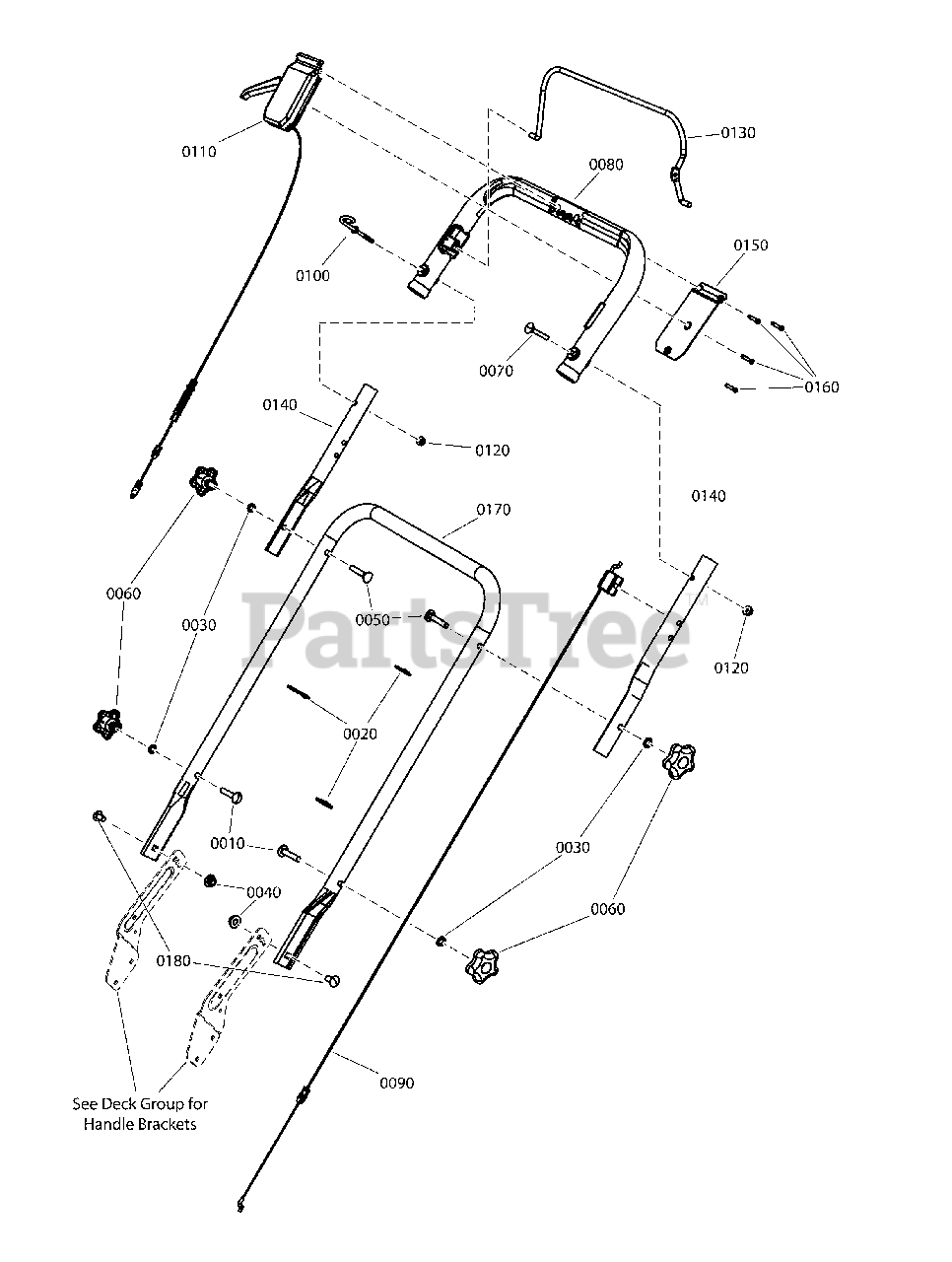

ESPV 21675 (7800688) - Snapper 21" Walk-Behind Mower, 6.75hp Handle Group, RWD, VS Parts Diagram

21" Walk-Behind Mower, 6.75hp

Handle Group, RWD, VS Parts Diagram

  • Title

0010

Snapper 703175

BOLT, 5/16-18 X 1.750, Carriage, G5, Clear Zinc

$3.99

$

In Stock, only 2 left!

0

0020

Snapper 7024649YP

WIRE TIE, 11", Black Nylon

$5.49

$

Usually ships in 2-12 days

0

0030

Snapper 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 704001

NUT, 5/16-18 Large Flange Center Lock, ZC/CL

$4.49

$

In Stock, Qty 17

0

0050

Snapper 703059

BOLT, 5/16-18 X 2.00 Conical Head, SN ZC/CL

$4.49

$

In Stock, Qty 15

0

0060

Snapper 7105085YP

KNOB, 5/16-18, Handle, Fluted 5 Prong, Black

$3.99

$

In Stock, Qty 20+

0

0070

Snapper 7090015YP

BOLT, 1/4-20 x 1-3/4 Round Head Square Neck, GR 2, YZ

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 7101312YP

HANDLE, Plastic Upper, 21" WBM

$128.99

$

In Stock, only 1 left!

0

0090

Snapper 7101399YP

CABLE, Bail, 21 WBM, RD, Snapper (44.20" Length)

$22.99

$

In Stock, only 4 left!

0

0100

Snapper 7101410YP

ROPE GUIDE (1/4-20 thread)

$6.49

$

In Stock, only 1 left!

0

0110

Snapper 7101416YP

ASSEMBLY, Control Head, 21 WBM, RD, Snapper (includes cable & lever)

$

$

Not available

0120

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 7101321BHYP

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

0140

Snapper 7300649BHYP

HANDLE, Connecting 21/22 WBM

$26.99

$

Usually ships in 2-12 days

0

0150

Snapper 7300670AYP

PLATE, Control Panel - Plastic Handle

$

$

Not available

0160

Snapper 691138

SCREW, Pan Head Thread Rolling

$3.99

$

In Stock, Qty 18

0

0170

Snapper 7301189BHYP

HANDLE, Lower, 1" Dia., WBM

$176.99

$

Usually ships in 2-12 days

0

0180

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0
