ESPV 21 (7800064) - Snapper 21" Walk-Behind Mower, 6.5hp REAR WHEELS Parts Diagram

21" Walk-Behind Mower, 6.5hp

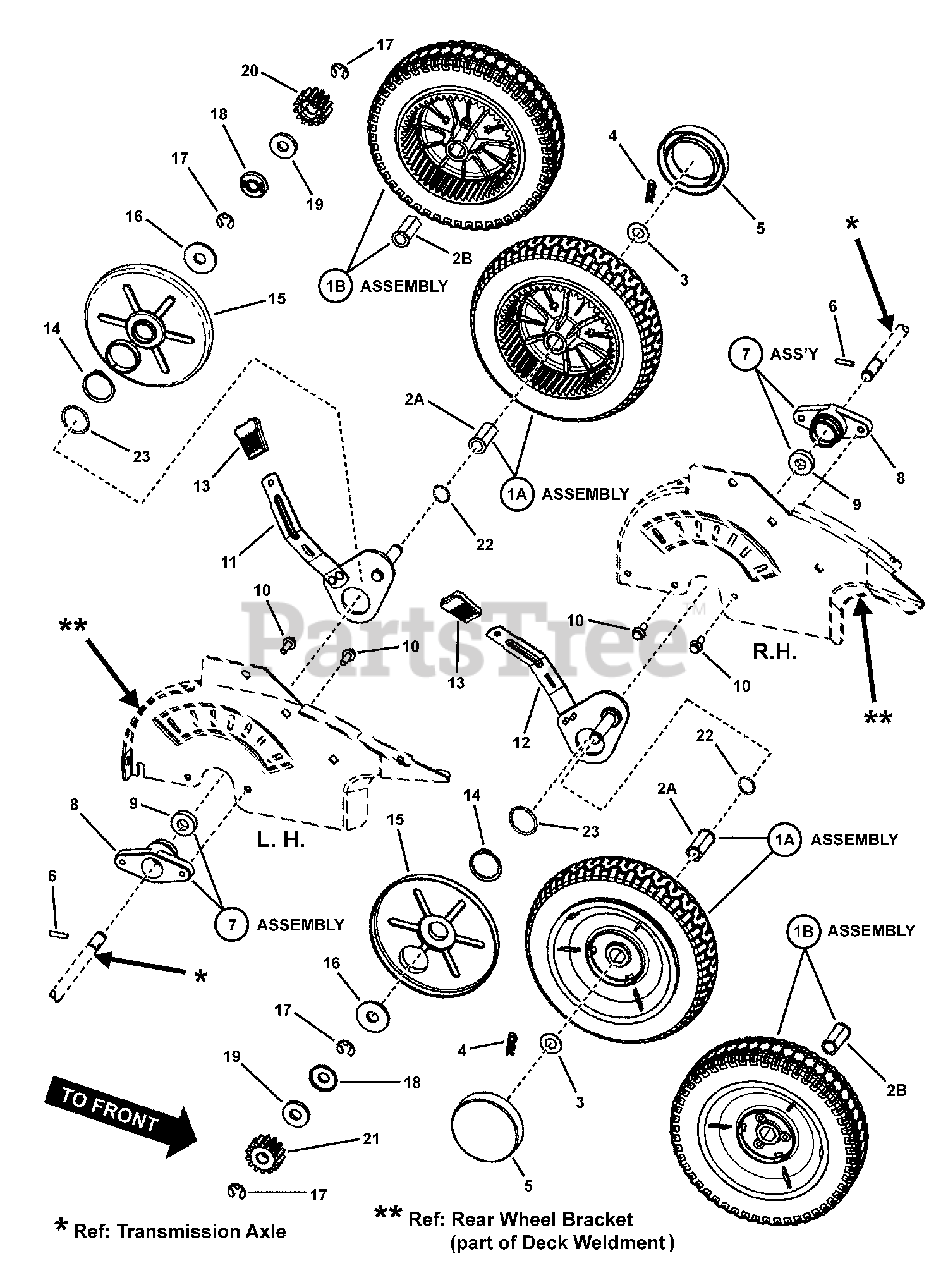

REAR WHEELS Parts Diagram

  • Title

1A

Snapper 7100184

ASSY., 9" x 2" Gear Wheel, LS Tread & P. M. Bushing
(Superseded to 7104781YP)

Note: gray rim

$40.99

$

In Stock, only 1 left!

0

1B

Snapper 7101104

ASSY., 9" x 2" Gear Wheel, Double Bar II Tread & Nylon Bushing
(Superseded to 7104781YP)

$40.99

$

In Stock, only 1 left!

0

2A

Snapper 7073618

BUSHING, Wheel (powdered metal)
(Superseded to 7073618YP)

Note: part of item 1A

$7.99

$

Usually ships in 2-12 days

0

2B

Snapper 7024541

BUSHING, Wheel (Nylon)
(Superseded to 7073618YP)

Note: part of item 1B

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7091192

WASHER, 1/2" Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7091193

COTTER, Hairpin
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

5

Snapper 7100114

HUB CAP, 3-1/4" Diameter
(Superseded to 7100114YP)

Note: black

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7024749

PAWL, 3/16" O.D.
(Superseded to 7024749YP)

$19.99

$

Usually ships in 2-12 days

0

7

Snapper 7500041

ASSEMBLY, Axle Bearing
(Superseded to 7600184YP)

Note: incl. items 8 & 9

$24.99

$

Usually ships in 2-12 days

0

8

Snapper 7078214

HOUSING, Axle Bearing
(Superseded to 7078214YP)

$

$

Not available

9

Snapper 7078243

BALL BEARING, Axle
(Superseded to 7078243YP)

Note: .50 I.D. x 1.125 O.D. x .3125 thick

$10.99

$

In Stock, Qty 18

0

10

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7078235

ASSEMBLY, Axle Arm, Left Rear
(Superseded to 7078235YP)

$84.99

$

Usually ships in 2-12 days

0

12

Snapper 7078236

ASSEMBLY, Axle Arm, Right Rear
(Superseded to 7078236YP)

$65.99

$

In Stock, only 1 left!

0

13

Snapper 7100633

GRIP, Height Latch - Black (1.3" Wide)
(Superseded to 7103793YP)

Note: replaces 7027702 (voided)

$4.49

$

In Stock, Qty 9

0

14

Snapper 7900010

SNAP RING, 1-3/8"
(Superseded to 7900010YP)

Note: Truarc 5100-137

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7078269

SHIELD, Dust
(Superseded to 7078269YP)

$6.99

$

Usually ships in 2-12 days

0

16

Snapper 7100644

WASHER, .531 x 1.25 x .063
(Superseded to 7100644YP)

Note: or 7091194 (1.50 O.D.)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7014341

RETAINING RING
(Superseded to 703976)

Note: Waldes 5133-50

$4.49

$

In Stock, Qty 10

0

18

Snapper 7026478

RETAINER, Pinion Seal
(Superseded to 7026478YP)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7026479

SEAL, Pinion (Felt)
(Superseded to 7026479YP)

$4.49

$

Usually ships in 2-12 days

0

20

Snapper 7024550

PINION, LH Drive
(Superseded to 7024550YP)

$8.99

$

In Stock, only 1 left!

0

21

Snapper 7024549

PINION, RH Drive
(Superseded to 7024549YP)

$8.49

$

Usually ships in 2-12 days

0

22

Snapper 7100627

O-RING, Buna N, 018
(Superseded to 7100627YP)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7100626

O-RING, Buna N, 124
(Superseded to 7100626YP)

$3.99

$

Usually ships in 2-12 days

0
