ESPV 21 (7800064) - Snapper 21" Walk-Behind Mower, 6.5hp GUARDS AND COVERS Parts Diagram

21" Walk-Behind Mower, 6.5hp

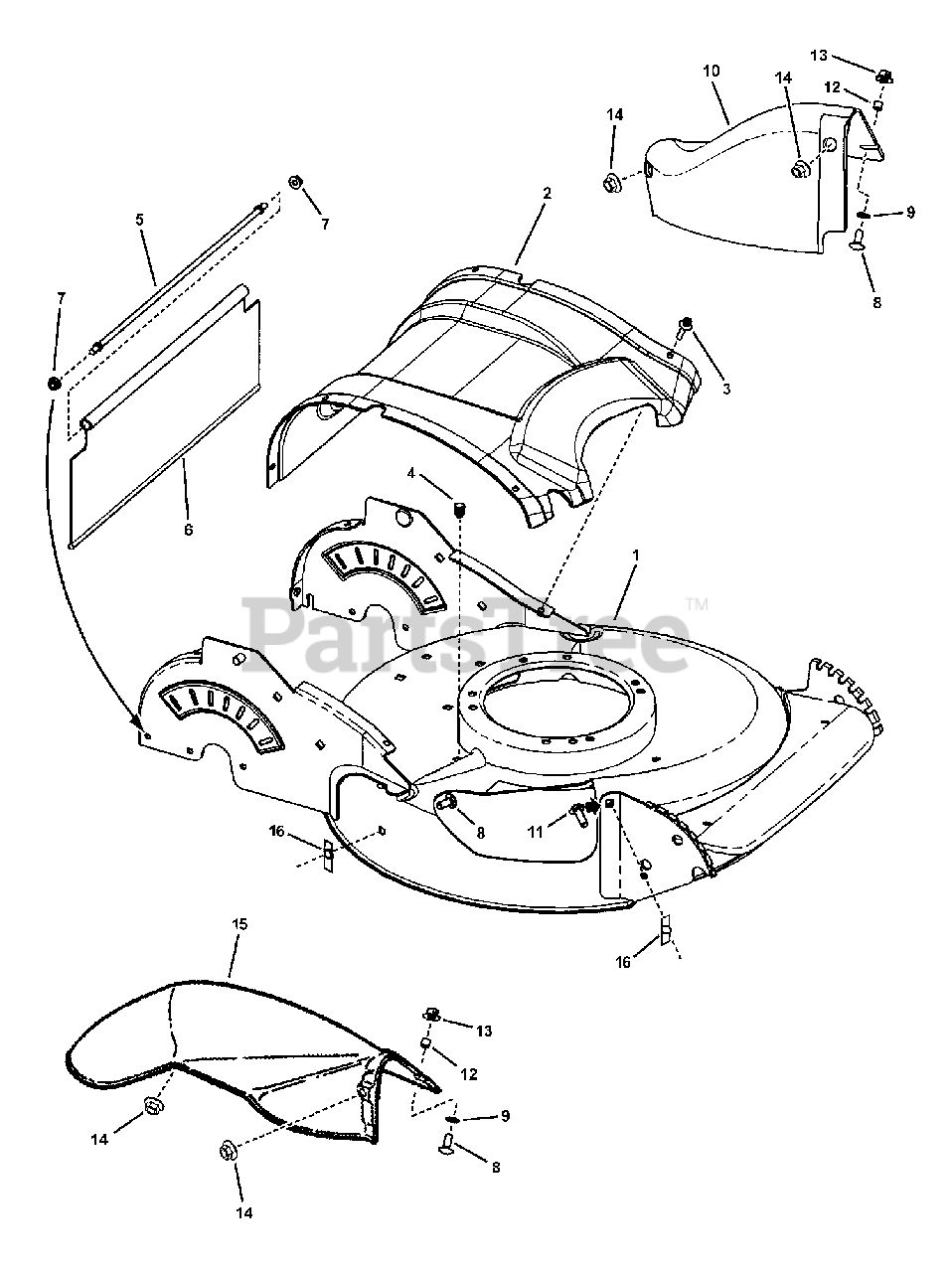

GUARDS AND COVERS Parts Diagram

  • Title
1

Snapper 7078216

WELDMENT, 21" Deck, 7 Position
(Superseded to 7500134YP)

$182.99

$

Usually ships in 2-12 days

0

2

Snapper 7100001

REAR COVER, Belt/Transmission
(Superseded to 7100001YP)

$70.99

$

Usually ships in 2-12 days

0

3

Snapper 7900032

SCREW, 7 mm x 1 x .55 AB Point
(Superseded to 7900032YP)

Note: Was 7100059 Rivit

$4.49

$

In Stock, only 1 left!

0

4

Snapper 7046780

PLUG, Hole (Polyethylene)
(Superseded to 7046780SM)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7078225

ROD, Trail Shield
(Superseded to 7078225YP)

Note: 1/4-20 thread- both ends

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 7078272

SHIELD, Trail
(Superseded to 7078272YP)

$15.99

$

In Stock, only 1 left!

0

7

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

8

Snapper 7090001

BOLT, 5/16-18 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

9

Snapper 7011791

BOLT RETAINER, 5/16- Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7029149

COVER, 21 Deck Recycling
(Superseded to 7029149YP)

$33.99

$

In Stock, Qty 20+

0

11

Snapper 7091169

BOLT, 5/16-18 x 1-1/8" Short Square Neck Carriage, GR 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7024340

SPACER, .316 x .375 x .300/.310
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

13

Snapper 7090951

NUT, 5/16-18 Large Flange Hex Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

14

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Snapper 7042965

CHUTE, 21 Side Discharge
(Superseded to 7042965YP)

$53.99

$

Usually ships in 2-12 days

0

16

Snapper 7900028

NUT, 5/16-18 Speed
(Superseded to 7900028YP)

Note: Shakeproof# FN-614020-1-50)

$3.99

$

Usually ships in 2-12 days

0
