ESPV 21 (7800064) - Snapper 21" Walk-Behind Mower, 6.5hp BAGGING COMPONENTS Parts Diagram

21" Walk-Behind Mower, 6.5hp

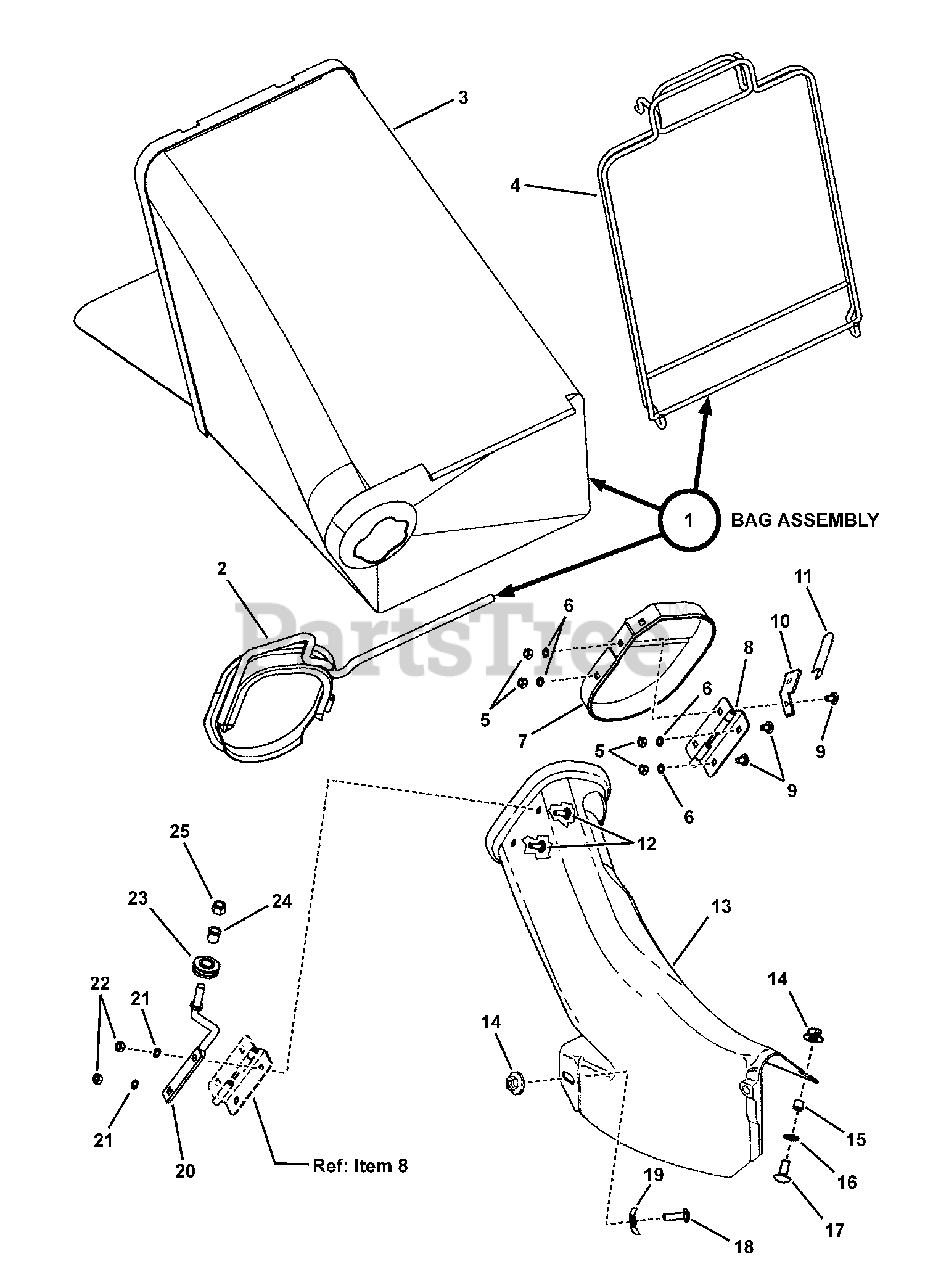

BAGGING COMPONENTS Parts Diagram

  • Title

1

Snapper 7058571

BAG ASSEMBLY (Door)
(Superseded to 7058571YP)

Note: includes items 2 thru 4

$

$

Not available

2

Snapper 7042489

CONNECTOR, Bag
(Superseded to 7042489AYP)

Note: (weldment)

$44.99

$

Usually ships in 2-12 days

0

3

Snapper 7075765

GRASS BAG (Door w/silver letters)
(Superseded to 7075765YP)

$137.99

$

Usually ships in 2-12 days

0

4

Snapper 7051906

ASSEMBLY, Bag Wire (12") 21S
(Superseded to 7051906YP)

$110.99

$

Usually ships in 2-12 days

0

5

Snapper 7091100

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7091023

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

7

Snapper 7019287

COVER, Bag Adapter
(Superseded to 7019287YP)

$8.99

$

Usually ships in 2-12 days

0

8

Snapper 7023000

HINGE, Chute Cover
(Superseded to 7023000YP)

$35.99

$

In Stock, only 1 left!

0

9

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5
(Superseded to 703841)

Note: or 7091064 (1/4-20 x 1/2" Square Neck Carriage Bolt, Grade 5)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7032661

STOP, Cover
(Superseded to 7032661YP)

$6.49

$

Usually ships in 2-12 days

0

11

Snapper 7023042

TRIM, Moulding
(Superseded to 7023042YP)

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 2 left!

0

13

Snapper 7016107

ADAPTER, Bag 21
(Superseded to 7016107YP)

$90.99

$

Usually ships in 2-12 days

0

14

Snapper 7090951

NUT, 5/16-18 Large Flange Hex Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 17

0

15

Snapper 7024340

SPACER, .316 x .375 x .300/.310
(Superseded to 7024340SM)

$4.99

$

In Stock, only 4 left!

0

16

Snapper 7011791

BOLT RETAINER, 5/16- Black
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7090001

BOLT, 5/16-18 x 3/4" Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7091833

SCREW, 5/16-18 x 5/8" Cross Recess Pan Head
(Superseded to 7091833SM)

$4.49

$

In Stock, only 1 left!

0

19

Snapper 7900028

NUT, 5/16-18 Speed
(Superseded to 7900028YP)

Note: Shakeproof# FN-614020-1-50)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 7100582

ROD, Rope Pulley
(Superseded to 7100582YP)

Note: (3/8-16 thread)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 1916964

LOCKWASHER, 1/4" Spring
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

22

Snapper 7090977

NUT, 1/4-20 Hex Jam, GR 5 or B
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

23

Snapper 7024228

PULLEY, Nylon
(Superseded to 7024228SM)

$4.99

$

In Stock, only 4 left!

0

24

Snapper 7012306

BUSHING, Flange, .381 x .625 x .62
(Superseded to 703973)

$5.99

$

In Stock, Qty 13

0

25

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0
