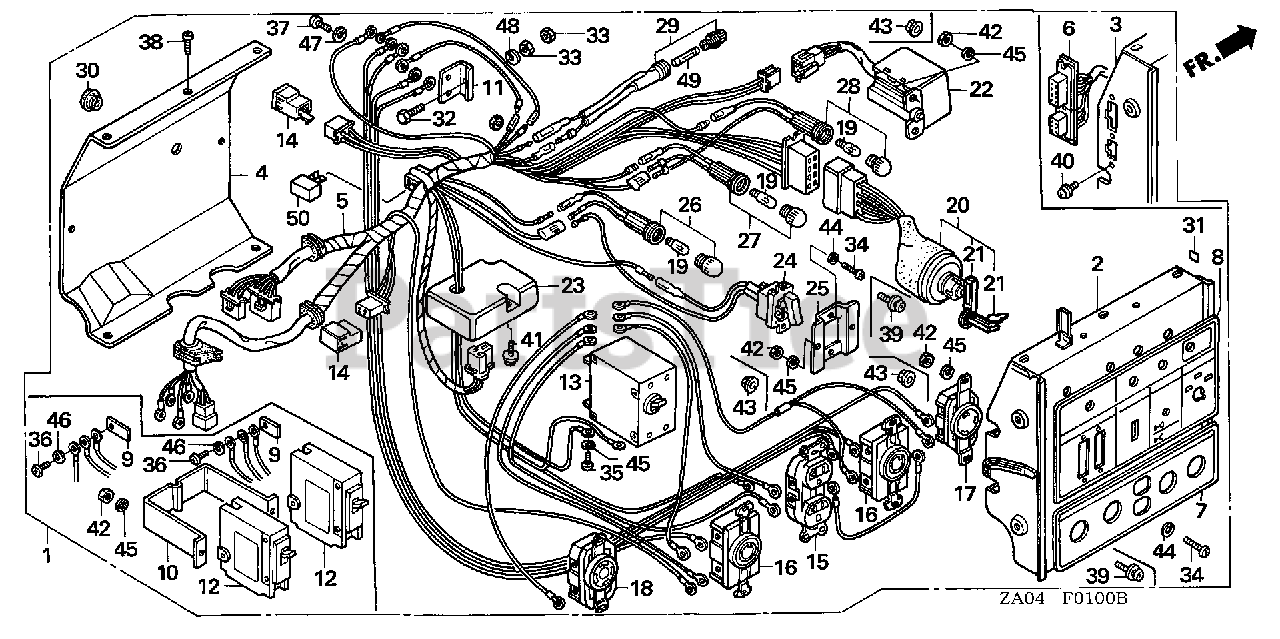

ES6500 K2 A (EA1) - Honda Generator, Made in Japan (SN: EA1-1100001 - EA1-1159999) CONTROL BOX (1) Parts Diagram

Generator, Made in Japan

CONTROL BOX (1) Parts Diagram

  • Title

1

Honda 31400-ZA0-B32ZA

BOX ASSY., CONTROL *NH105* (MAT BLACK)

Note: Use up to Frame SN 1139795.

$

$

Not available

3

Honda 31402-ZA0-634

PANEL, FR.

Note: Use up to Frame SN 1139795.

$

$

Not available

4

Honda 31403-ZA0-014

COVER

Note: Use up to Frame SN 1139795.

$106.99

$

Usually ships in 3-6 days

0

6

Honda 31404-ZA0-634

WIRE HARNESS

Note: Use up to Frame SN 1100213.

$

$

Not available

6

Honda 31404-ZA0-B31

WIRE HARNESS

Note: Use from Frame SN 1100214 to 1130231.

$

$

Currently unavailable

6

Honda 31404-ZA0-B32

WIRE HARNESS

Note: Use from Frame SN 1130232 to 1139795.

$

$

Currently unavailable

7

Honda 31405-ZA0-632

MARK, RECEPTACLE PANEL

Note: Use up to Frame SN 1139795.

$

$

Not available

8

Honda 31406-ZA0-631

MARK, SWITCH PANEL

Note: Use up to Frame SN 1139795.

$

$

Not available

11

Honda 31429-ZA0-004

PLATE, GROUND

Note: Use up to Frame SN 1139795.

$21.99

$

Usually ships in 3-6 days

0

13

Honda 31435-ZA0-630

BREAKER, CIRCUIT (27A)

Note: Use up to Frame SN 1139795.

$

$

Not available

14

Honda 31710-893-003

STACK ASSY., DIODE (2.7A)

Note: Use up to Frame SN 1139795.

$126.99

$

Usually ships in 3-6 days

0

16

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

Note: Use up to Frame SN 1139795.

$40.99

$

Usually ships in 3-6 days

0

17

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

Note: Use up to Frame SN 1139795.

$50.99

$

In Stock, only 1 left!

0

18

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

Note: Use up to Frame SN 1139795.

$38.99

$

Usually ships in 3-6 days

0

19

Honda 34909-880-000

SEE PART DETAILS - PRI; BULB (24V2W)

Note: Use up to Frame SN 1139795.

$9.99

$

Usually ships in 3-6 days

0

20

Honda 35100-ZA0-013

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3634904).
(Superseded to 35100-ZA0-023)

Note: Use up to Frame SN 1139795.

$124.99

$

Usually ships in 3-6 days

0

20

Honda 35100-ZA0-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

Note: Use up to Frame SN 1139795.

$124.99

$

Usually ships in 3-6 days

0

21

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

Note: Use up to Frame SN 1139795.

$12.99

$

In Stock, Qty 5

0

22

Honda 35520-ZA0-003

RELAY, ALERT

Note: Use up to Frame SN 1139795.

$349.99

$

Usually ships in 3-6 days

0

23

Honda 36210-ZA0-003

CONTROL UNIT, IDLE

Note: Use up to Frame SN 1139795.

$330.99

$

Usually ships in 3-6 days

0

24

Honda 36214-ZA0-000

SWITCH ASSY., IDLE CONTROL

Note: Use up to Frame SN 1139795.

$

$

Not available

25

Honda 36216-ZA0-004

STAY, SWITCH

Note: Use up to Frame SN 1139795.

$

$

Not available

26

Honda 37560-ZA0-003

SEE PART DETAILS - PRI; SOCKET ASSY., PILOT LAMP

Note: Use up to Frame SN 1139795.

$39.99

$

Usually ships in 3-6 days

0

27

Honda 37570-ZA0-003

SEE PART DETAILS - PRI; SOCKET ASSY., LAMP

Note: Use up to Frame SN 1139795.

$39.99

$

Usually ships in 3-6 days

0

28

Honda 37575-ZA0-003

SEE PART DETAILS - PRI; SOCKET ASSY., LAMP

Note: Use up to Frame SN 1139795.

$

$

Not available

29

Honda 38211-895-003

SEE PART DETAILS - SUP; HOLDER, FUSE
(Superseded to 38211-ZB5-831)

Note: Use up to Frame SN 1139795.

$33.99

$

Usually ships in 3-6 days

0

30

Honda 64315-GB4-000

GROMMET, TOP COVER

Note: Use up to Frame SN 1139795.

$2.99

$

Usually ships in 3-6 days

0

31

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

Note: Use up to Frame SN 1139795.

$2.99

$

In Stock, Qty 5

0

32

Honda 90103-ZA0-642

BOLT, HEX. (8MM)

Note: Use up to Frame SN 1139795.

$7.49

$

Usually ships in 3-6 days

0

33

Honda 90301-ZA0-004

NUT, HEX. (8MM)

Note: Use up to Frame SN 1139795.

$5.49

$

Usually ships in 3-6 days

0

35

Honda 93500-04008-3J

SCREW, PAN (4X8)

Note: Use up to Frame SN 1139795.

$1.49

$

Usually ships in 3-6 days

0

37

Honda 93500-06012-3J

SCREW, PAN (6X12)

Note: Use up to Frame SN 1139795.

$2.49

$

Usually ships in 3-6 days

0

38

Honda 93891-04008-08

SCREW-WASHER (4X8)

Note: Use up to Frame SN 1139795.

$1.99

$

In Stock, Qty 10

0

39

Honda 93892-03006-08

SCREW-WASHER (3X6)

Note: Use up to Frame SN 1139795.

$1.49

$

Usually ships in 3-6 days

0

40

Honda 93892-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

Note: Use up to Frame SN 1139795.

$1.99

$

Usually ships in 3-6 days

0

41

Honda 93892-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

Note: Use up to Frame SN 1139795.

$1.99

$

Usually ships in 3-6 days

0

43

Honda 94050-04080

NUT, FLANGE (4MM)

Note: Use up to Frame SN 1139795.

$1.99

$

In Stock, Qty 8

0

47

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

Note: Use up to Frame SN 1139795.

$1.99

$

Usually ships in 3-6 days

0

48

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0058982).

Note: Use up to Frame SN 1139795.

$1.49

$

Usually ships in 3-6 days

0

49

Honda 98200-21500

FUSE B (15A)

Note: Use up to Frame SN 1139795.

$1.49

$

Usually ships in 3-6 days

0

50

Honda 31700-124-003

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (STANLEY) (Honda Code 0351346).
(Superseded to 31700-124-008)

Note: Use from Frame SN 1130232 to 1139795.

$42.99

$

In Stock, only 2 left!

0

50

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

Note: Use from Frame SN 1130232 to 1139795.

$42.99

$

In Stock, only 2 left!

0
