ES6500 K2 A (EA1) - Honda Generator, Made in Japan (SN: EA1-1100001 - EA1-1159999) CARBURETOR (3) Parts Diagram

Generator, Made in Japan

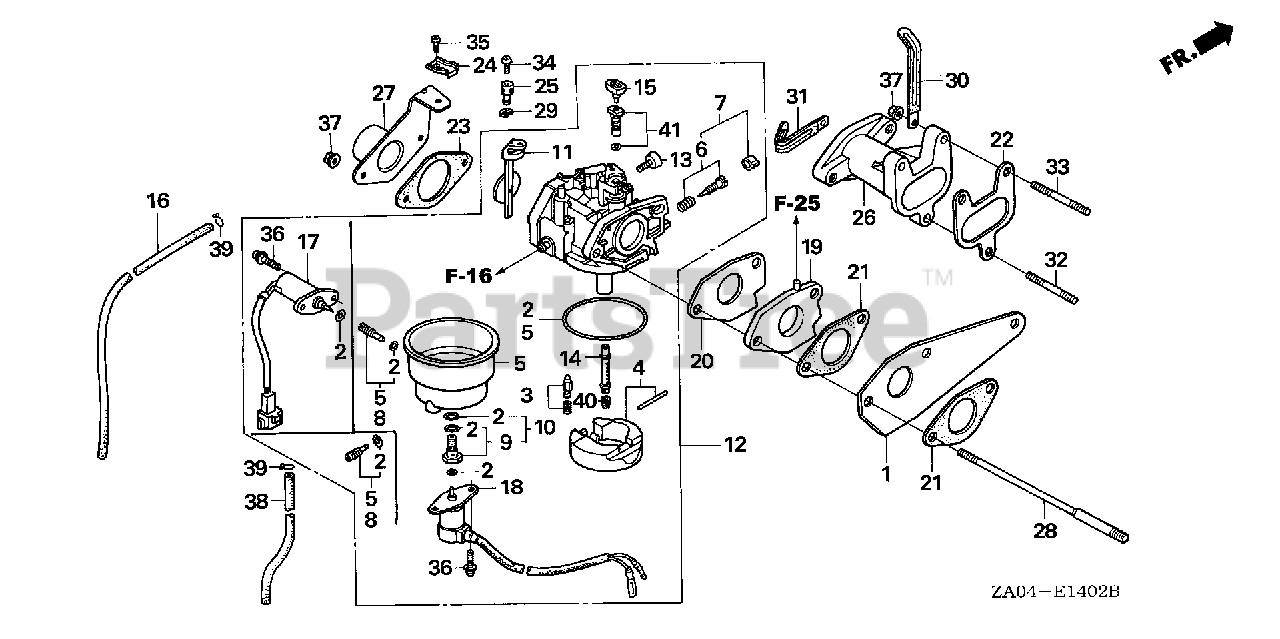

CARBURETOR (3) Parts Diagram

  • Title

1

Honda 11815-ZA0-930

STAY, TIMING BELT (Honda Code 1978329).

$

$

Not available

2

Honda 16040-ZA0-702

GASKET SET (CARBURETOR NO.)

$21.99

$

In Stock, only 1 left!

0

3

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$45.99

$

In Stock, only 1 left!

0

4

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$51.99

$

In Stock, only 1 left!

0

5

Honda 16023-ZA0-702

CHAMBER SET, FLOAT (CARBURETOR NO.)

$88.99

$

In Stock, only 1 left!

0

7

Honda 16016-ZH8-W01

SCREW SET (Honda Code 4212387).

$12.99

$

In Stock, only 1 left!

0

8

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

10

Honda 16028-ZA0-982

SEE PART DETAILS - PRI; SCREW SET

$23.99

$

In Stock, only 2 left!

0

11

Honda 16044-ZA0-932

SEE PART DETAILS - PRI; CHOKE SET (Honda Code 3127032).

$

$

Not available

12

Honda 16100-ZA0-E92

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE77H B)

$243.99

$

In Stock, only 1 left!

0

13

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

14

Honda 16166-ZA0-931

NOZZLE, MAIN (Honda Code 2097392).

$36.99

$

Usually ships in 3-6 days

0

15

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

16

Honda 16199-ZA0-930

TUBE, AIR VENT (Honda Code 1978402).

$13.99

$

Usually ships in 3-6 days

0

17

Honda 16200-ZA0-L02

VALVE ASSY., SOLENOID (CARBURETOR NO.)

$74.99

$

In Stock, only 2 left!

0

19

Honda 16210-ZA0-930

INSULATOR, CARBURETOR (Honda Code 1978410).

$20.99

$

Usually ships in 3-6 days

0

20

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

21

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.99

$

In Stock, Qty 19

0

22

Honda 16226-ZA0-800

SEE PART DETAILS - PRI; GASKET, IN. MANIFOLD (Honda Code 4527792).

$3.49

$

In Stock, only 2 left!

0

23

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212).

$2.49

$

In Stock, Qty 20+

0

24

Honda 16582-883-300

HOLDER, CONTROL CABLE Use from Engine SN 2327377.

$4.49

$

Usually ships in 3-6 days

0

25

Honda 16617-890-010

SEE PART DETAILS - PRI; HOLDER, CABLE (Honda Code 0760462).

$8.99

$

In Stock, only 1 left!

0

26

Honda 17100-ZA0-930

MANIFOLD, IN. (Honda Code 1972199).

$80.99

$

Usually ships in 3-6 days

0

27

Honda 17214-ZA0-930

PIPE, AIR IN. (Honda Code 1978493).

$20.99

$

Usually ships in 3-6 days

0

28

Honda 90042-ZA0-930

BOLT, STUD (8X100) (Honda Code 1972371).

$9.49

$

Usually ships in 3-6 days

0

29

Honda 90605-230-000

CIRCLIP (5MM) Use from Engine SN 2327377.

$4.49

$

In Stock, only 2 left!

0

31

Honda 91410-679-000

CLIP (6X20) (Honda Code 0840215).

$15.99

$

Usually ships in 3-6 days

0

32

Honda 92700-06032-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X32) (Honda Code 0438374).

$2.49

$

Usually ships in 3-6 days

0

33

Honda 92900-06028-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X28) (Honda Code 1366616).

$2.49

$

Usually ships in 3-6 days

0

34

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

35

Honda 93500-05010-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X10) (Honda Code 0156976).

$1.49

$

In Stock, Qty 8

0

36

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

$1.49

$

In Stock, Qty 5

0

37

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

38

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 1 left!

0

39

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

40

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88) Use up to Engine SN BE81B B.

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

40

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90) Use from Engine SN BE81B C.

Note: (Optional).

$8.49

$

In Stock, only 2 left!

0

40

Honda 99101-ZH8-0920

SEE PART DETAILS - PRI; JET, MAIN (#92) (Honda Code 5947163).

$8.49

$

In Stock, only 1 left!

0

41

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (ADVENTURE GREEN) (CARBURETOR NO.)

$23.99

$

In Stock, only 2 left!

0
